Yealink SIP-T52S User Manual

User Guide for T5 Series IP Phones
168

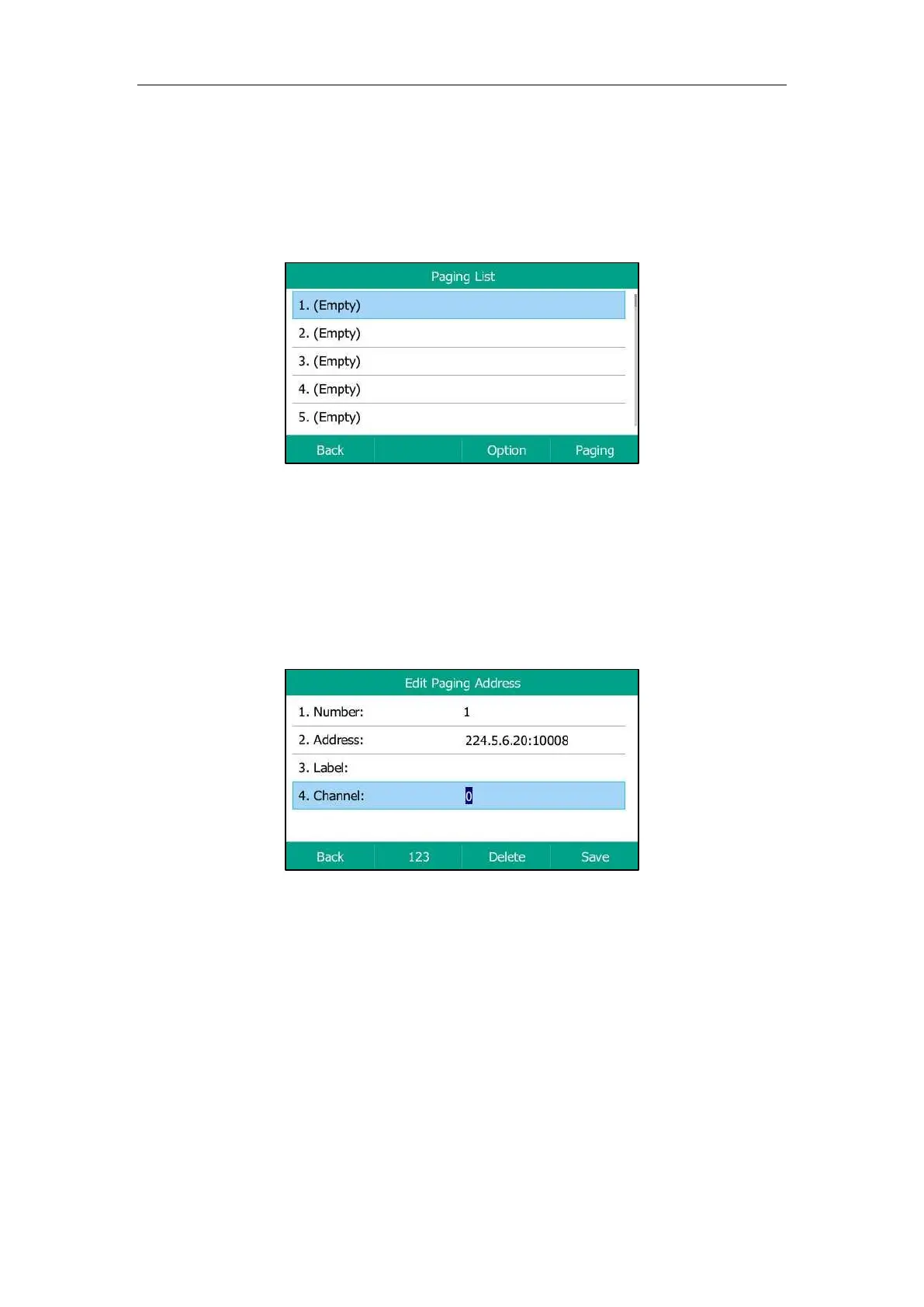

If the paging list key is not configured, you can also navigate to
Menu->Features->Others->Paging List for the SIP-T46S/T46G IP phone or
Menu->Features->Paging List for other IP phones to configure the paging list.
2. Select a desired paging group.
The default tag is Empty if it is not configured before.
3. Press Option, and then select Edit.
4. Enter the multicast IP address and port number (for example, 224.5.6.20:10008) in the
Address field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
5. Enter the string that will display on the LCD screen in the Label field.
6. Enter the desired channel between 0 and 30 in the Channel field.
7. Press Save.
8. Repeat steps 2 to 7, if you want to add more paging groups.
Paging list is configurable via web user interface at the path Directory->Multicast IP.
Deleting a Paging Group
Procedure:
1. Press the paging list key when the phone is idle.
If the paging list key is not configured, you can also navigate to
Menu->Features->Others->Paging List or Menu->Features->Paging List to configure
the paging list.

Yealink SIP-T52S Specifications

General

Touchscreen	-
Display diagonal	2.8 \
Backlight display	Yes
Display resolution	320 x 240 pixels
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
AC adapter input voltage	100 - 240 V
Bluetooth version	2.1+EDR
Security algorithms	802.1x RADIUS, HTTPS, MD5
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	G.722, G.723, G.723.1, G.726, OPUS, iLBC
Volume control	Digital
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Front camera	No
Operating system installed	Linux

Weight and Dimensions

Depth	212 mm
Width	211.6 mm
Height	166.8 mm
