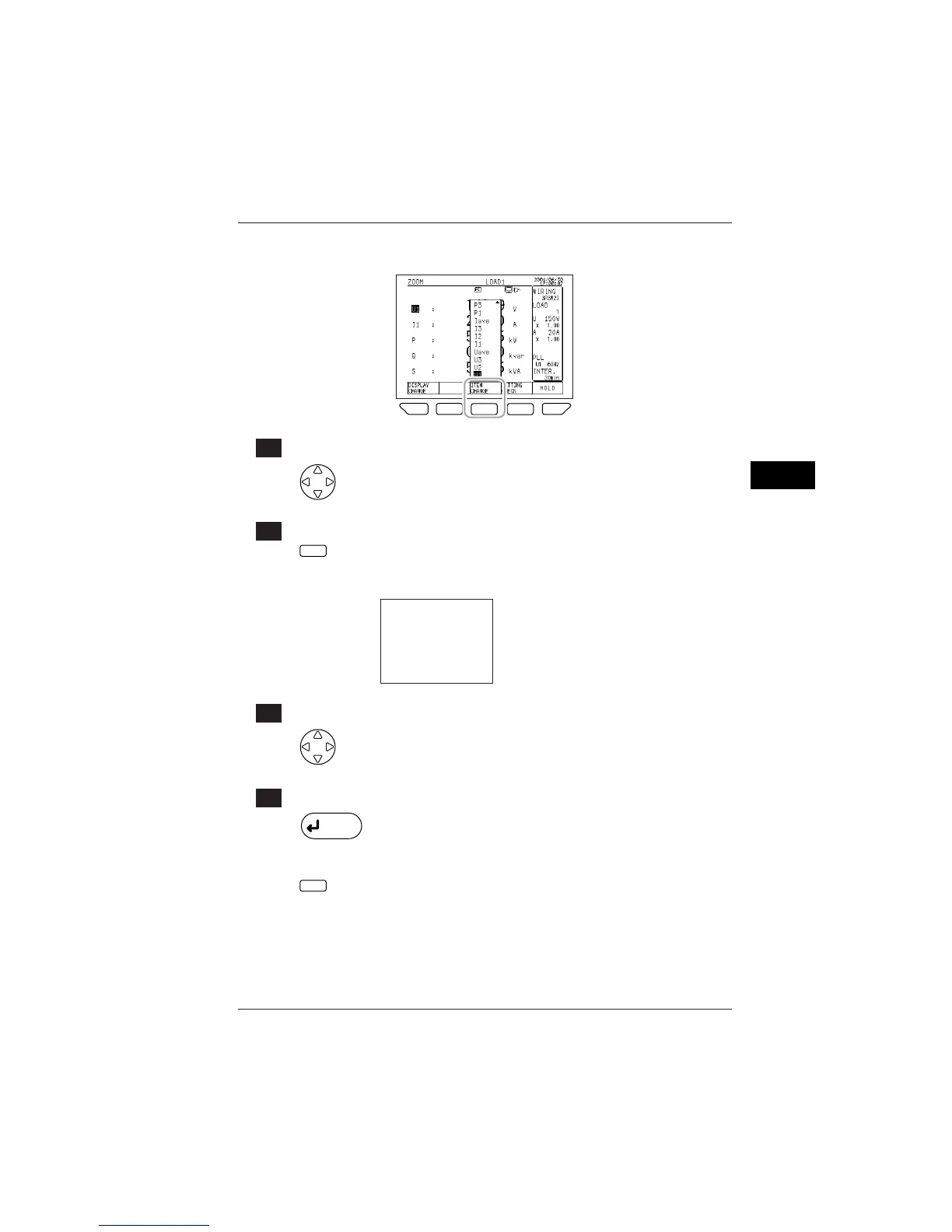

● Switching the Item to be Displayed
F 1 F 1
F 2
F 3 F 4
F 5
[ 1 Selecting the display area
Using the cursor key, select the display area to be changed
(highlighted).
[ 2 Displaying the window
F3
Press the F3 key (ITEM CHANGE).
The window showing the items appears.
Example of display:
P
I2
I1
U2
U1
[ 3 Selecting the item
Using the cursor key, select the item to be displayed (highlighted).
- If you do not change the setting, press the ESC key. The window returns to
the Zoom screen.
[ 4 Confirmation
ENTER
Press the ENTER key.
This closes the window, returning you to the Zoom screen.
To switch the load to be displayed:
F 2
The load changes each time the F2 key is pressed.
Measured values are displayed on a load basis.
(The display varies depending on the wiring setting or the number of
loads.)
