7.3 Measuring Electric Energy
● Measuring Electric Energy
In this section, you set up the start and stop times of integration to measure
electric energy (integrated value) consumed during that period.
Checking settings:
To save data in integration measurement, you need to make settings.
(Start and stop times of integration, interval time during which data is saved,
items to be saved, and so on)

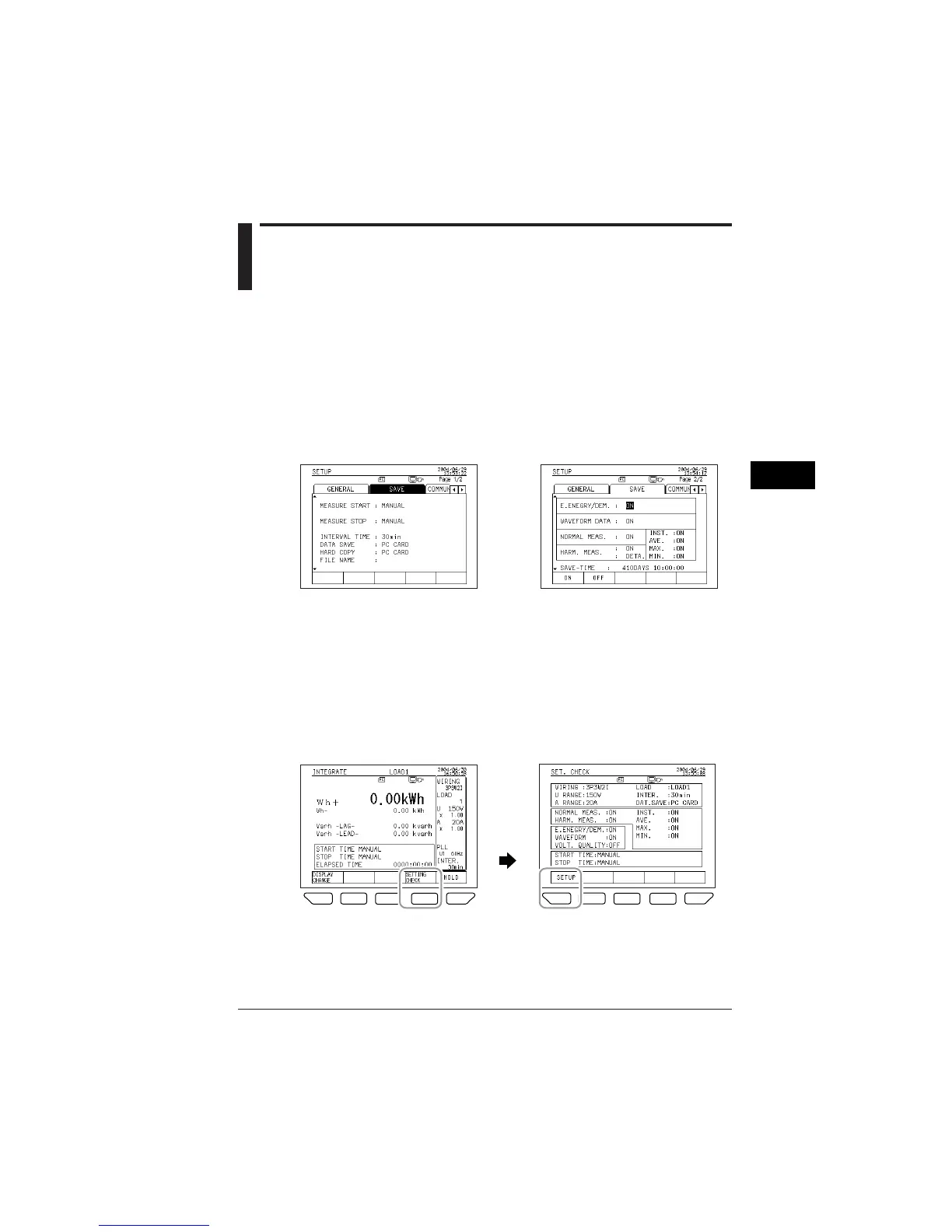

Save 1/2 screen: Save 2/2 screen:
SEE ALSO
For more information on settings, see Chapter 6, Configuring Settings, Section 6.4,
Save Data Setting 1/2, and Section 6.5, Save Data Setting 2/2.
Set values can also be checked using the F4 key (SETTING CHECK) on the
Integrate screen. If a set value needs to be changed, press the F1 key (SETUP)
on the Setting Check screen.
The Setup screen appears.
F1F1
F2
F3 F 4
F5
F1F1
F2
F3 F 4
F5
To Next Page
