7.3 Measuring Electric Energy

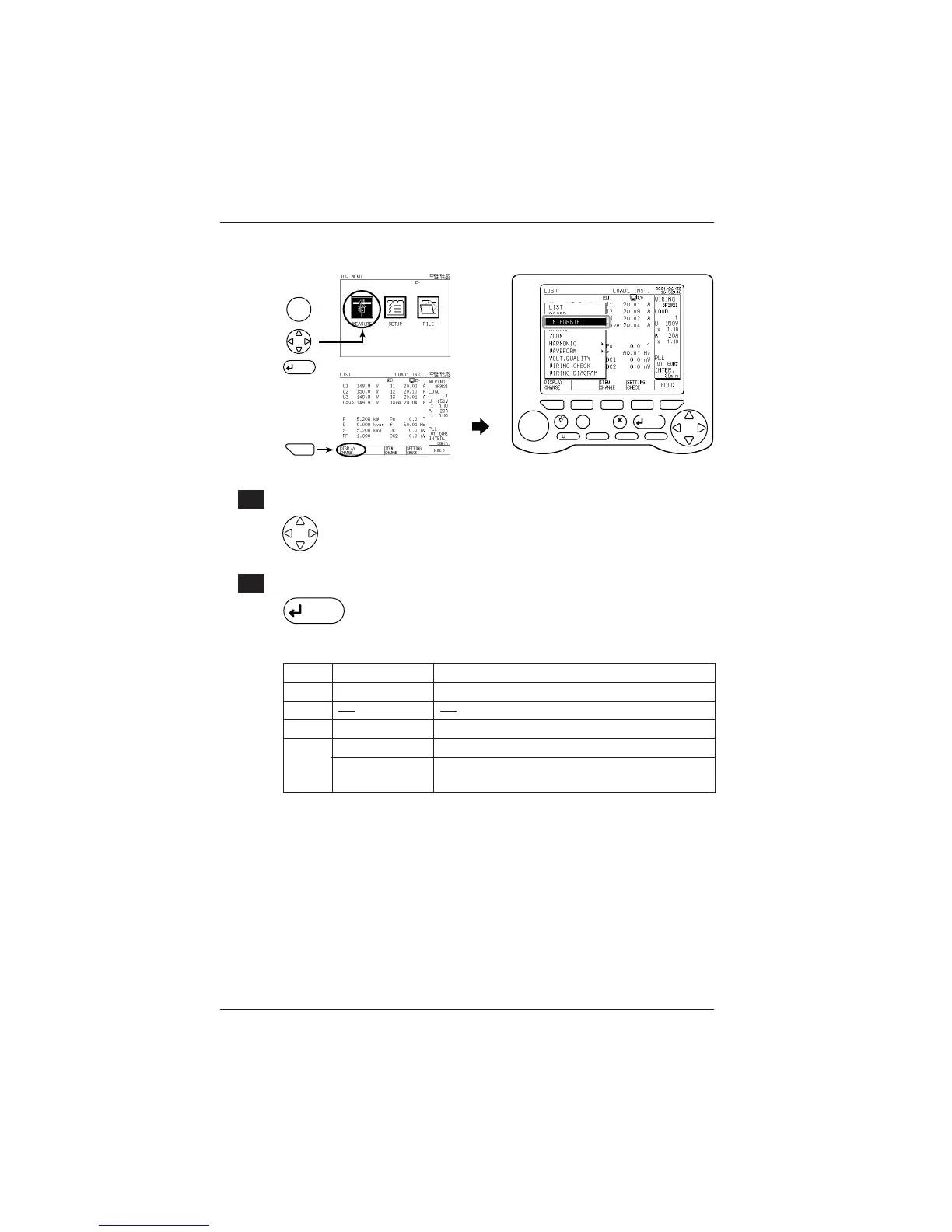

● Displaying the Integrate Screen
TOP
MENU
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F1
F2 F3 F4 F 5
DISP COPY
RANGE
<Measure screen Example>
F
1
[ 1 Selection
Using the cursor key, select INTEGRATE (highlighted).
[ 2 Confirmation
ENTER
Confirm the ENTER key to confirm it.
The Integrate screen appears.
Description of the Function Keys:
F1 DISPLAY CHANGE Switches the Measure screen.
F2 LOAD CHANGE
Switches the load to be displayed. (For multiple loads)
F3
F4 SETTING CHECK Displays the Setting Check screen.
F5
HOLD Holds or cancels a displayed screen.
HOLD/Clear
If there is integrated data, press the F5 key for more than 3
seconds to clear it as necessary.
