7.3 Measuring Electric Energy

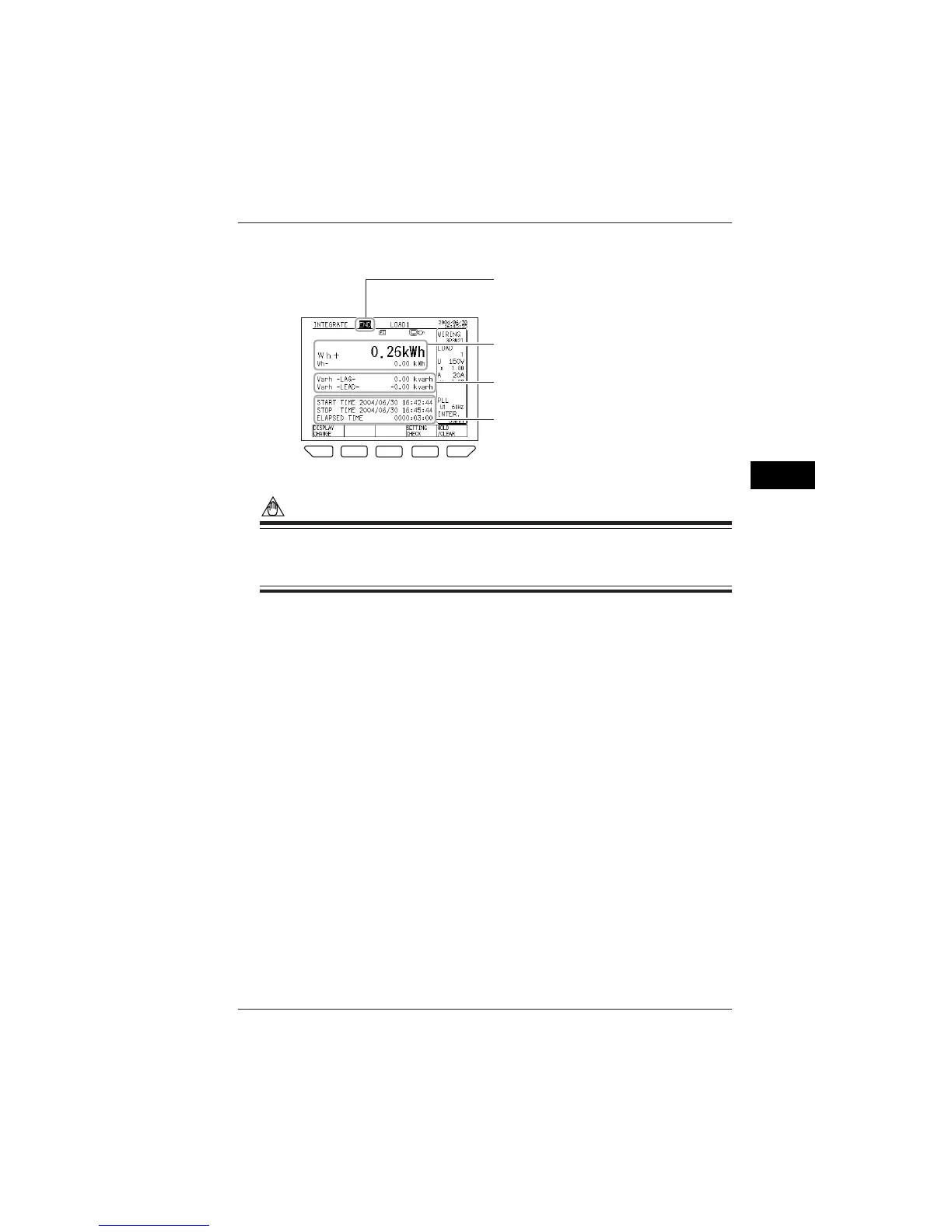

● Description of the Integrate Screen
F
1
F
1
F
2
F
3
F
4
F
5
Integration measurement state:
STANDBY
INTEG
END
Electric energy
Regenerative energy
Lagging reactive energy
Leading reactive energy
Integration information:
NOTE
If integration is started with the previous integrated data still remaining, an inte-
grated value will be added to it. To make new integration, press the F5 key (HOLD/
Clear) for more than 3 seconds to clear the remaining integrated data.
To Next Page
