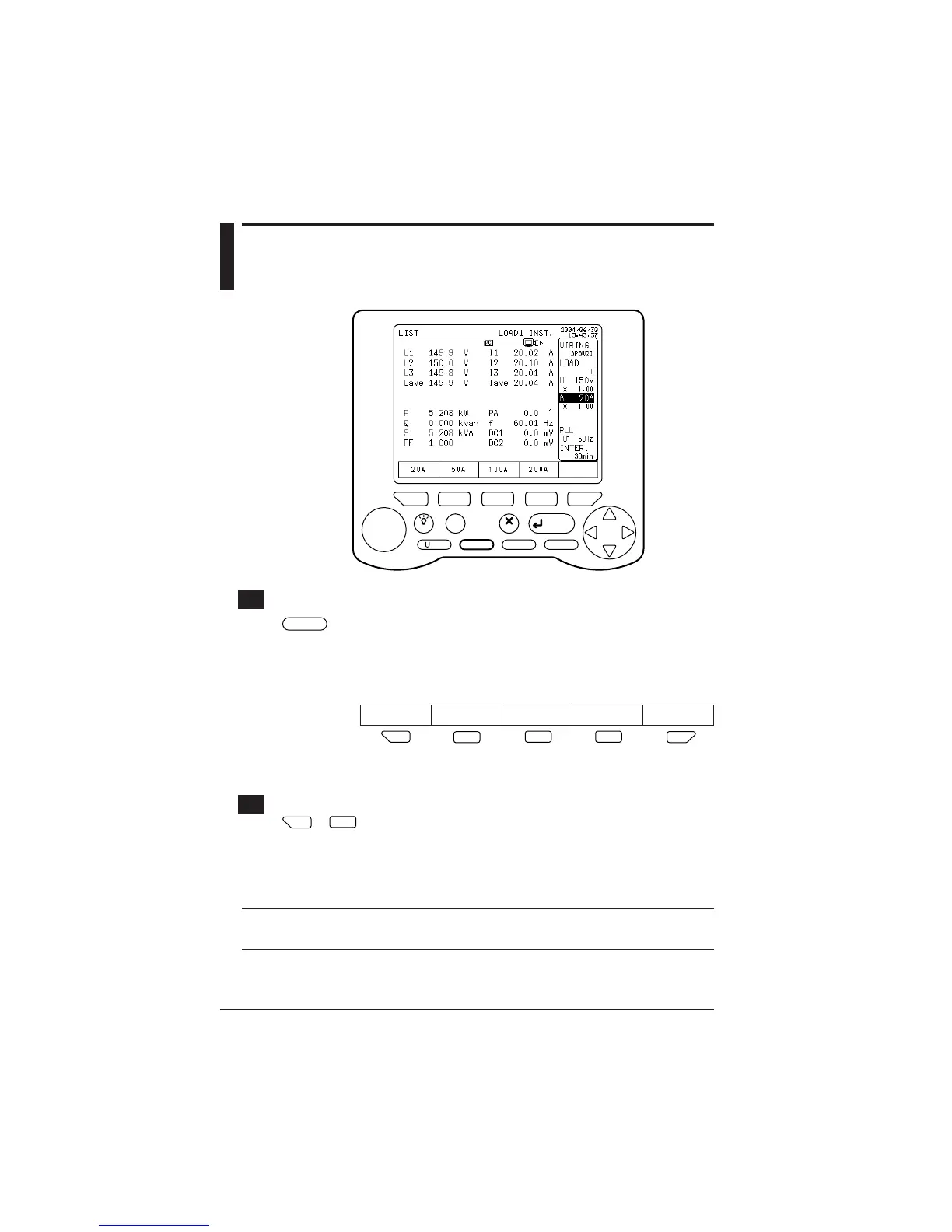

5.2 Setting the Current Range
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F1
F2 F 3 F4 F5
DISP COPY
RANGE
[ 1 Current Range Direct Key
A
RANGE
Press the A RANGE key once.
This causes the current range indication to be highlighted, changing the
function key labels to current ranges.
(The contents of the function key labels vary depending on the clamp-on
probe to be used.)
20A 50A 100A 200A
F
1
F
1
F
2
F
3
F
4
F
5
Default: 20 A (when clamp-on probe 96030 has been set)
The default is the minimum range of each clamp-on probe.
2 Setting the Current Range
F
1
F
1
to
F4
Press the corresponding function key to set the current range.
The current range changes to the selected one, returning the screen to the
MEASURE screen.
TIP
If you do not want to change the current range, press the A RANGE key again or press
the ESC key once. This causes the screen to return to the MEASURE screen.
