YOKOGAWA CW240 User Manual

7-37
IM CW240E
Measurements
7

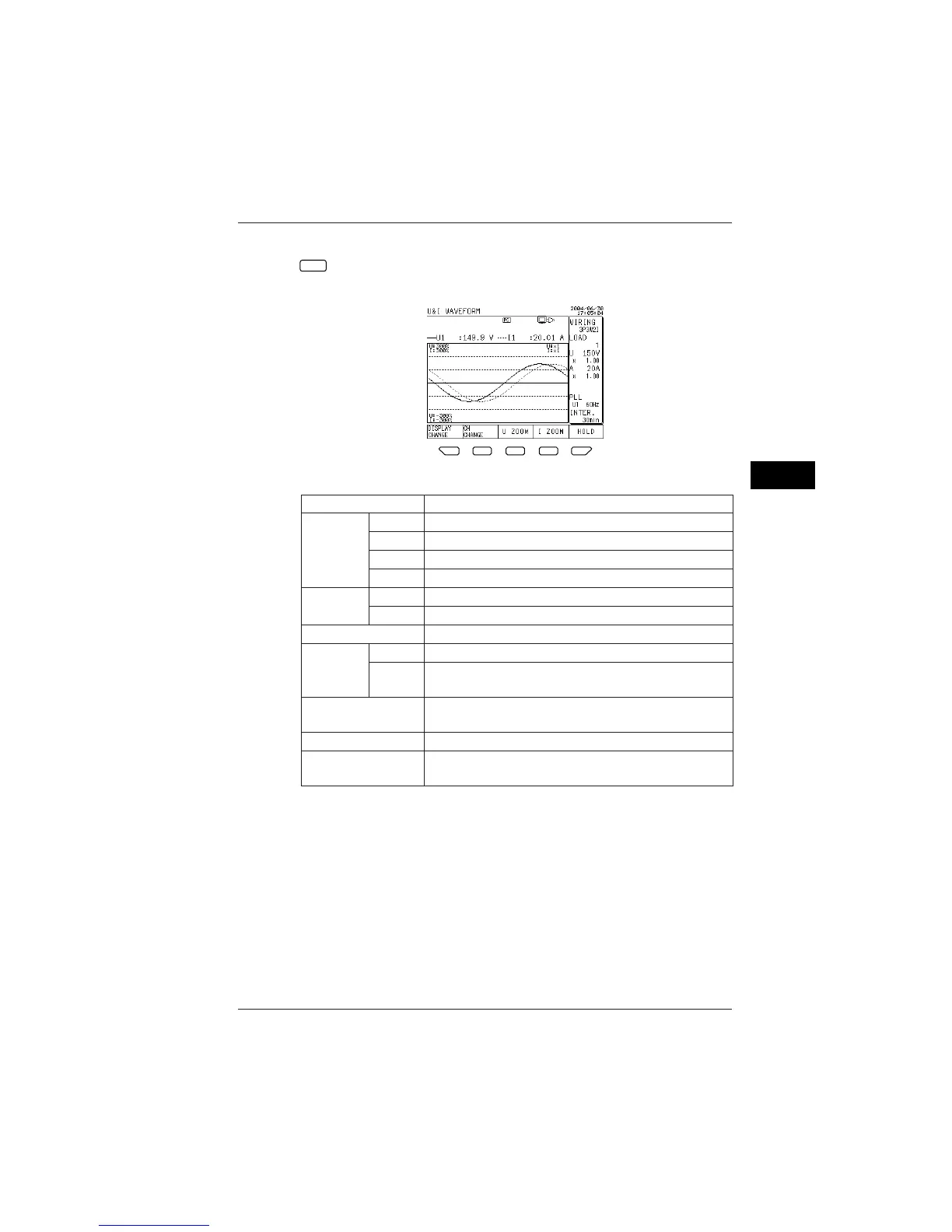

To switch U&I WAVEFORM - CH:
F 2
Each time the F2 key is pressed, the element to be measured is
switched.
F5
F4
F3
F2
F1
Switching of the elements to be measured differs depending on wiring.
Wiring CH Change
1P2W
One load U1, I1
Two loads U1, I1_1 → U1, I1_2 →U1, I1_1
Three loads U1, I1_1 → U1, I1_2 →U1, I1_3 → U1, I1_1
Four loads U1, I1_1 → U1, I1_2 →U1, I1_3→ U1, I1_4 → U1, I1_1
1P3W
One load
Two loads
U1, I1 → U2, I2 → U1, I1
U1, I1_1 → U2, I2_1 → U1, I1_2 → U2, I2_2 → U1, I1_1
1P3W3I U1, I1 → U2, I2 → I4→ U1, I1
3P3W2I
One load U1, I1 → U2, I2 → U3, I3 → U1, I1
Two loads
U1, I1_1 → U2, I2_1 → U3, I3_1 → U1, I1_2 → U2, I2_2 →
U3, I3_2 → U1, I1_1
3P3W3I
3P4W
U1, I1 → U2, I2 → U3, I3 → U1, I1
3P4W4I U1, I1 → U2, I2 → U3, I3 → I4 → U1, I1
3P3W+1P3W
U1_3P, I1_3P → U2_3P, I2_3P → U3_3P, I3_3P →
U1_1P, I1_1P → U2_1P, I2_1P → U1, I1_1
7.7 Displaying Waveform
