Preparation for Safe Measurements
3

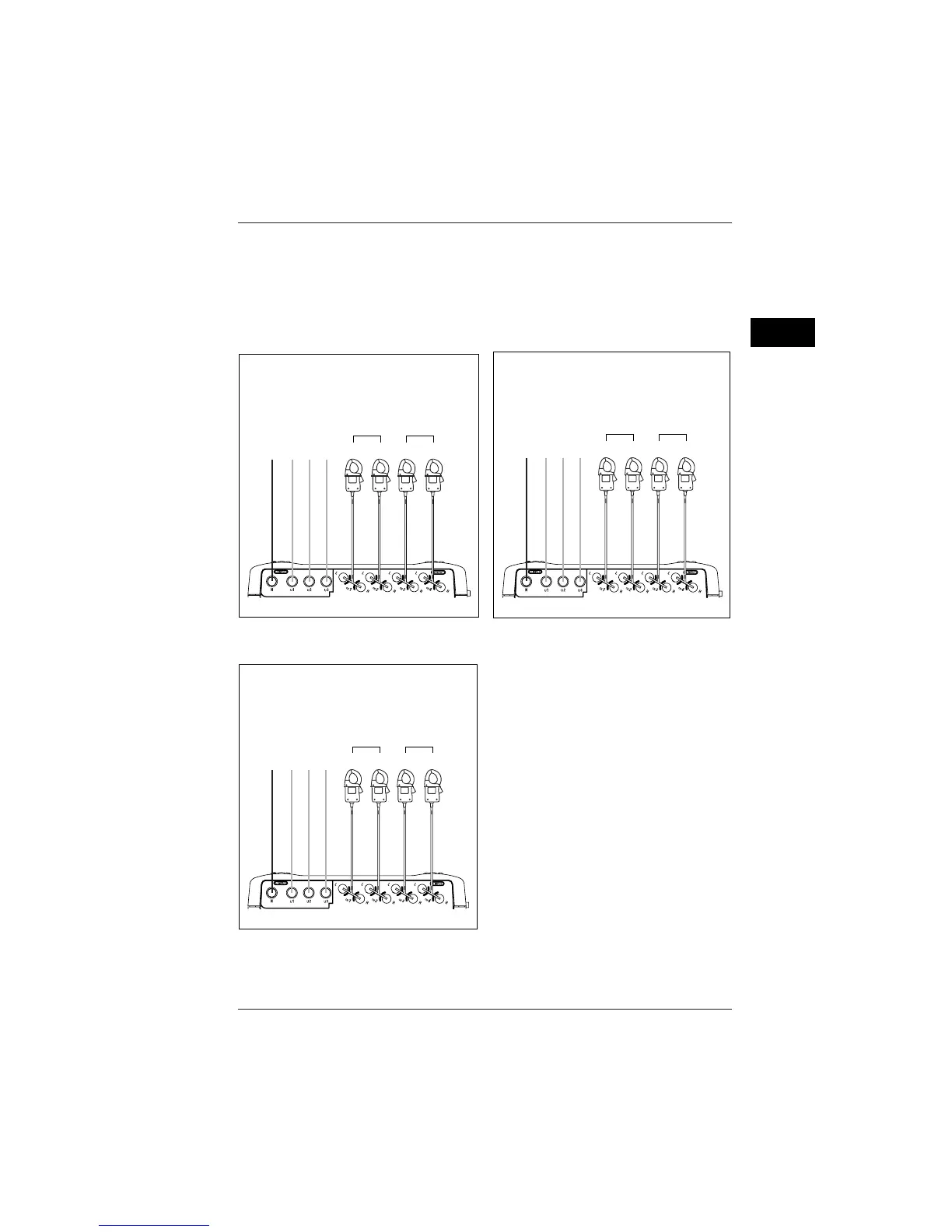

3.5 Connection Diagrams of Voltage Probes and Clamp-on Probes
1 (
R
)2 (
S
)R T NR TS
Black Red Yellow Blue
Single phase
Three-phase
3-wire
Scott connection (3P3W+1P3W)
Single-phase (1P3W) connection: R-S
1 (
S
)2 (
T
)R T NR TS
Black Red Yellow Blue
Single phase
Three-phase
3-wire
Scott connection (3P3W+1P3W)
Single-phase (1P3W) connection: S-T
1 (
T
)2 (
R
)R T NR TS
Black Red Yellow Blue
Single phase
Three-phase
3-wire
Scott connection (3P3W+1P3W)
Single-phase (1P3W) connection: T-R
