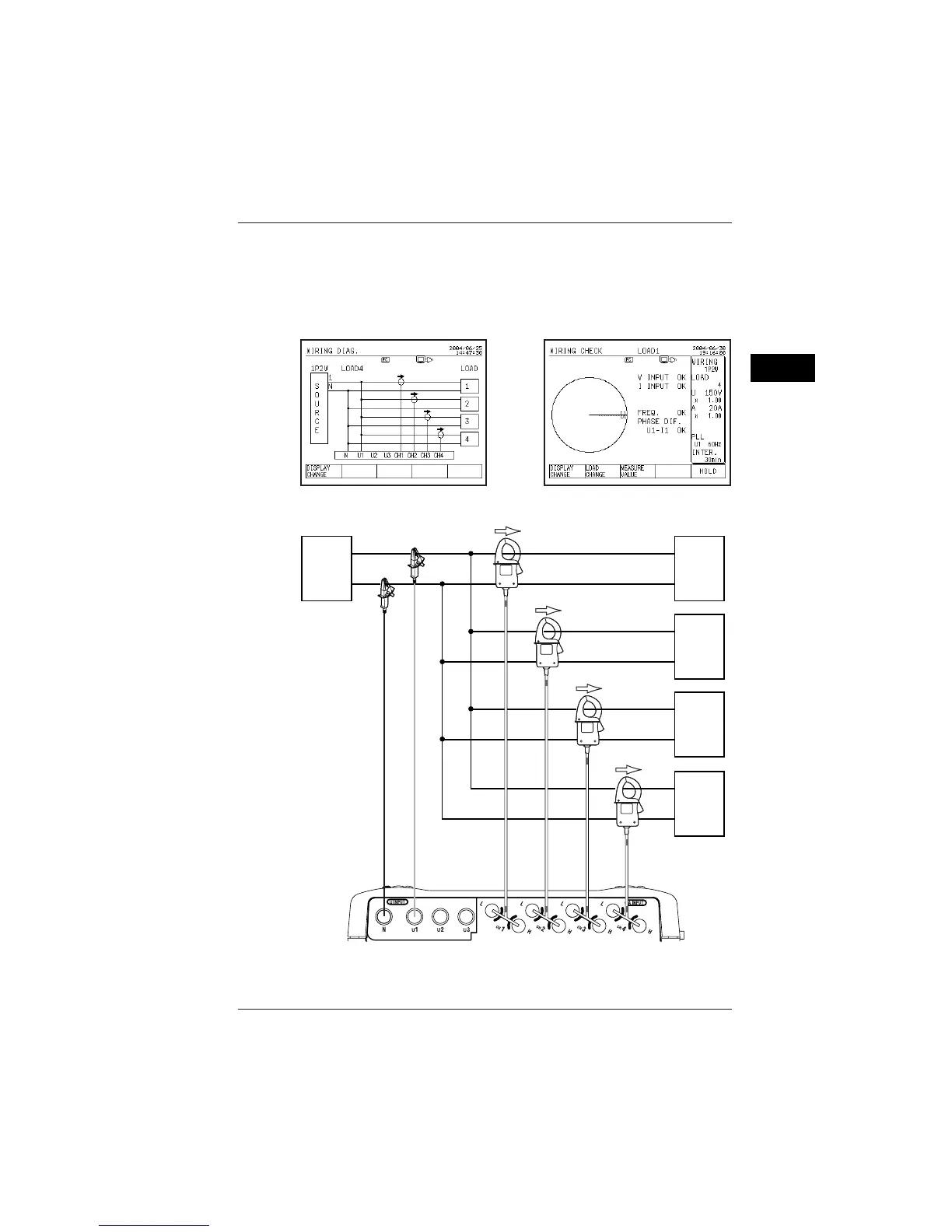

4.5.4 Single-phase Two-wire / Four Loads (1P2W)
The CW240 can simultaneously measure multiple loads of the same power
supply (voltage shared).
● WIRING DIAGRAM Screen ● WIRING CHECK Screen
● Actual Wiring
N
I
N
I
N
I
N
I
N
I
Power
supply
Load
1
Load
2
Load
3
Load
4
Black Red
SEE ALSO
For more information on wiring checks, see Section 4.7, Checking Wiring.
