3.3.4 Integral Indicator Scale Setup
The following ve displays are available for integral
indicators: input pressure, % of range, user set
scale, input static pressure*
1
, and % of static
pressure range*
1
. A cycle of up to four displays can
be shown by assigning variables to the parameters
at Disp select.

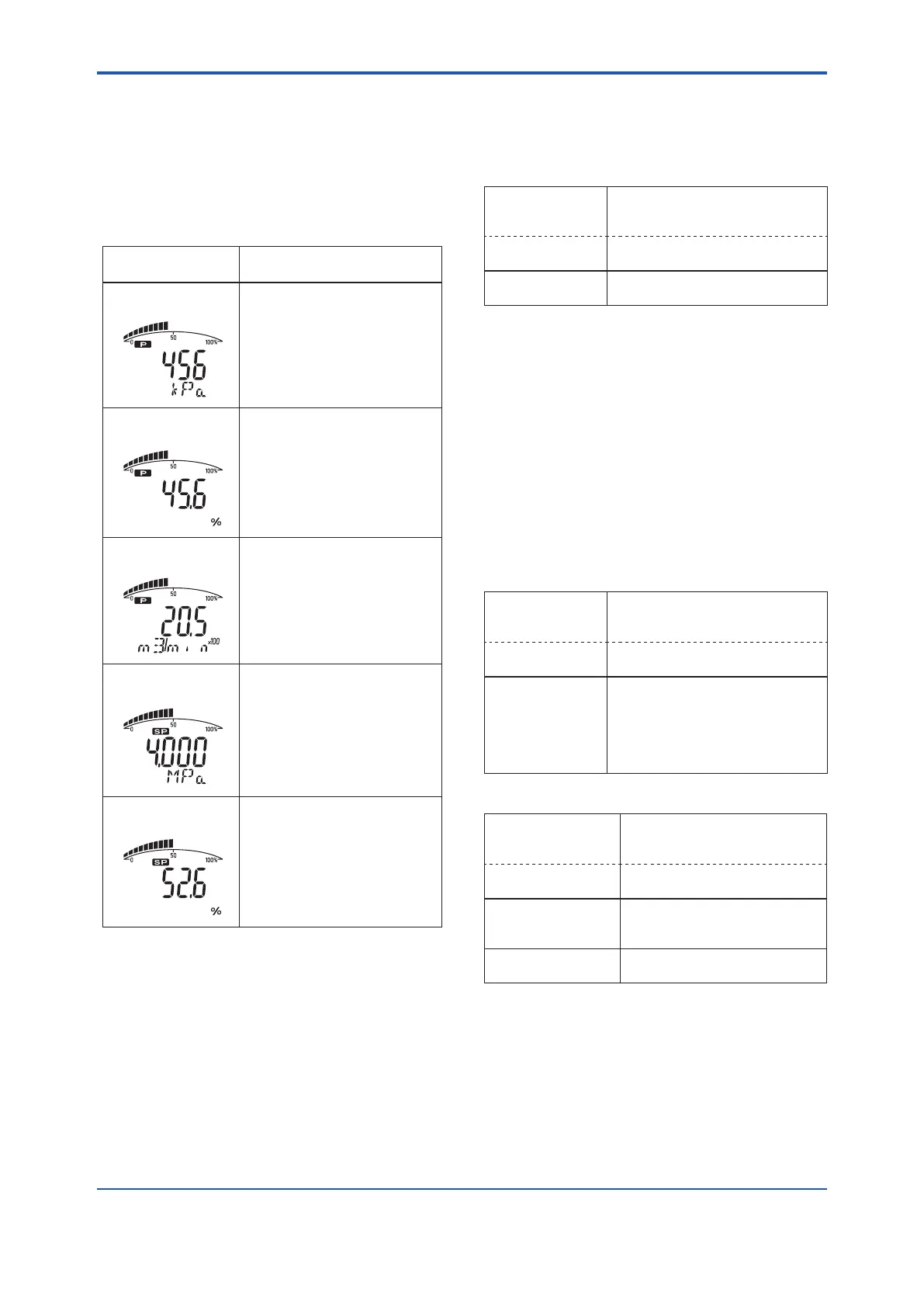

F0305.ai
Available displays
Input pressure
(PRES)
% of range
(PRES %)
User set scale
(ENGR. PRES)
Input static pressure
(SP)*
1
% of static pressure range
(SP %)*
1
Indicates values of input pressure
with the indication limits – 99999 to
99999.
Indicates input pressure in
– 2.5 to
110% range depending on the
set range (LRV and URV).
Indicates values depending on the
engineering range (Engr LRV and
Engr URV) with the unit (Engr Unit).
Indicates input static pressure with
the indication limits –99999 to 99999.
Reference pressure is factory-set in
absolute.
Indicates input static pressure in
–10 to 110% range depending on
the set range (SP LRV and SP
URV).
PRES 456 kPa
Description
and related parameters
PRES % 45.6 %
SP 4.000 MPa
SP % 52.6 %
Engr LRV 0.0
Engr URV 45.0
Engr exp ×100
Engr Unit m3/min
Engr point 1
*1: Available for differential pressure transmitter.
See (a.) through (d.) shown below for the setting
procedures.
a. Display Selection
At Disp select, select the variable that the
parameter Disp Out 1 will display on the integral
indicator.
• Procedure to call up the display
DD and DTM
(excluding EJX_
HART 5[1.2])
[Root Menu] → Detailed setup →
Display condition → Disp select →
EJX_HART 5[1.2]
DTM
Conguration → Local Display →
→ Disp Out 1 to 4 Select desired display from ve
kinds of display shown above.
Set Disp Out 2, Disp Out 3 and Disp Out 4 in the
same way if necessary.
In addition to the above item, “Not used” is also
displayed as a selection item.
b. Cyclic Display
Up to four displays can be displayed cyclically in the
order of the parameter number.
c. Display Resolution
User can change the position of decimal point
which is shown on the integral indicator.
• Procedure to call up the display for PV %
DD and DTM
(excluding EJX_
HART 5[1.2])
[Root Menu] → Detailed setup
→ Display condition → P disp
condition →
EJX_HART 5[1.2]
DTM
Conguration → Local Display →
→ Disp Pres %
Reso
Select the decimal point position of
pressure
Normal: Display one digit below
the decimal point
High Resolution: Display two digits
below the decimal point
• Procedure to call up the display for Pres and SP
DD and DTM
(excluding EJX_
HART 5[1.2])
[Root Menu] → Detailed setup
→ Display condition →
EJX_HART 5[1.2]
DTM
Conguration → Local Display
→
(→ P disp condition)
→ Pres disp point
Select the decimal point position
of di󰀨erential pressure (0, 1, 2,
3 or 4)
(→ SP disp condition)
→ SP disp point
Select the decimal point position
of static pressure (0, 1, 2, 3 or 4)
