A3-1
IM 34M06H62-02E 3rd Edition : Jul.16
2015-00
A3. Startup Procedure
Install the module into your system and perform the following startup procedure.

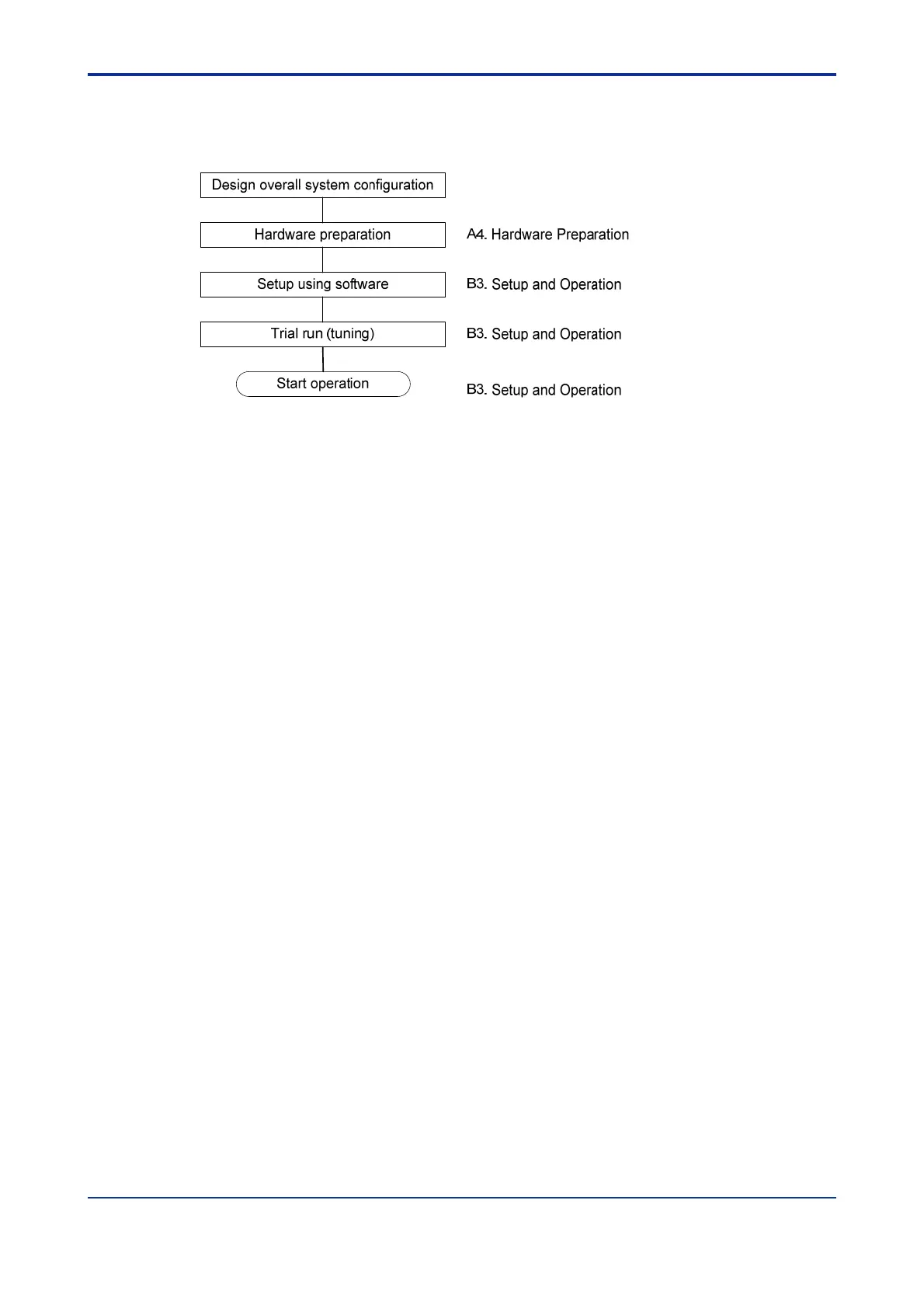

Figure A3.1 Startup Procedure
Before you use the module, you must first design the overall system
configuration, set the switches, install the module on the base unit, and perform
required wiring and other hardware preparation. Following that, you will set the
controller modes and input ranges using software. The software here refers to the
FA-M3 Programming Tool WideField3, the BASIC Programming Tool M3 or the
ToolBox for Temperature Control and Monitoring modules. The required system
components when performing setup are the power supply module, the base
module, the CPU module, software and a personal computer for running the
software. For details on the required environment for executing the software,
including specifications for the personal computer and compatible CPU modules,
as well as details on how to operate the software, see the relevant software
manuals.
After software setup, perform trial runs to tune parameters for optimal
performance. Now, you are ready for actual operation.
Sections A4, "Hardware Preparation" and B3, "Setup and Operation" describe
these procedures in detail. For details on how to access the module using
software to perform setup and for more information on relays and registers, see
Section B1, "Accessing the Module," and B2, "Types of Relays and Registers,"
respectively.
