A4-6
IM 34M06H62-02E 2nd Edition : June 2008-00
A4.2 Attaching/Detaching Modules
After setting hardware switches, attach the module to the base unit. This section
describes the procedure for attaching/detaching the module and the necessary
precautions.
Attaching Modules
Figure A4.3 shows how to attach this module to the base module. First hook the anchor
slot at the bottom of the module to be attached onto the anchor pin on the bottom of the
base module. Push the top of this module towards the base module until the
anchor/release button clicks into place.
Always switch off the power before attaching or detaching a module.

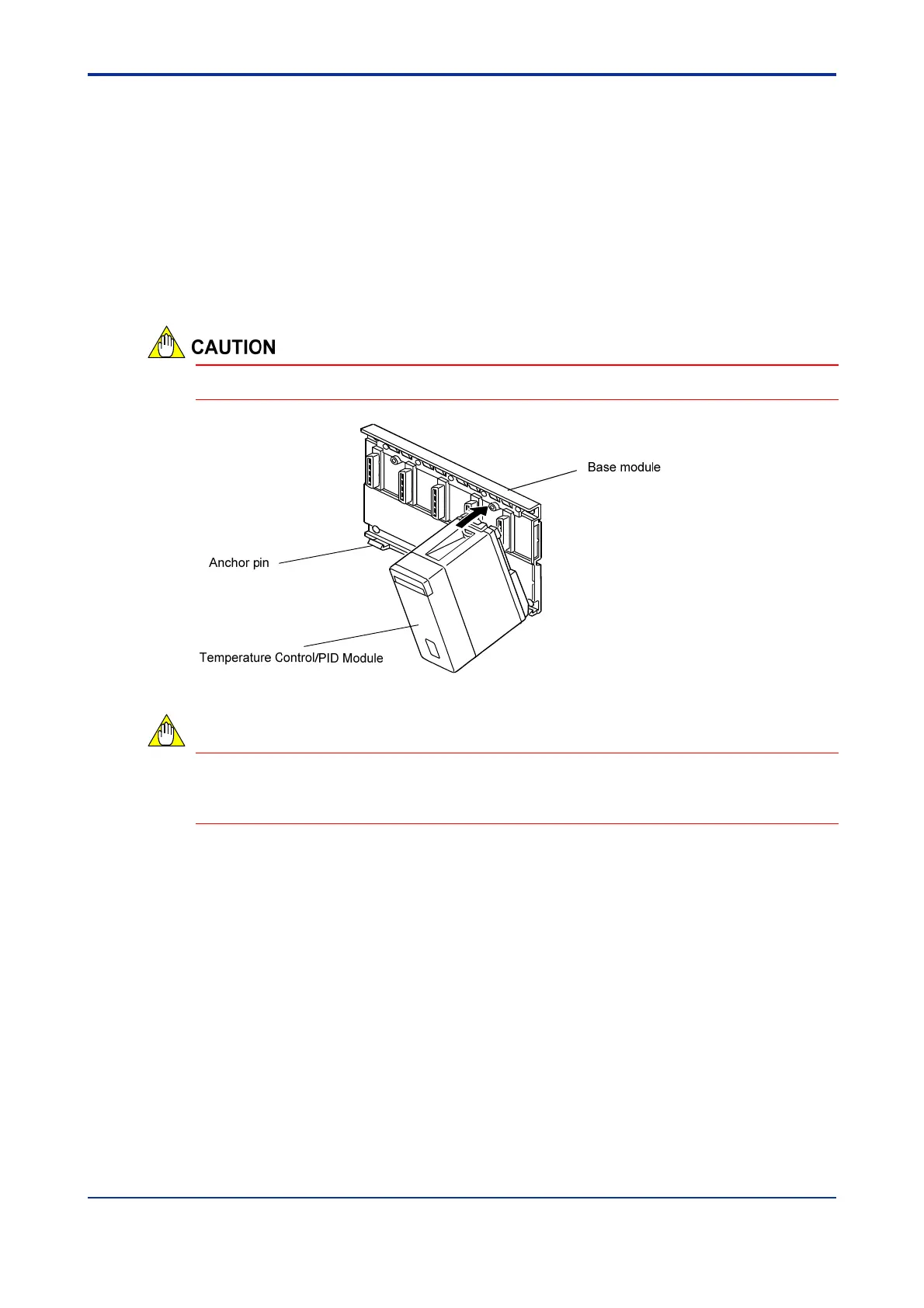

Figure A4.3 Attaching Modules
CAUTION
DO NOT bend the connector on the rear of the module by force during the above
operation. If the module is pushed with improper force, the connector may bend causing
an error.
