B2-33
IM 34M06H62-02E 2nd Edition : June 2008-00
SP Backup Sample Program
This sample program writes an SP value (stored in D00101) when relay I00101 turns on,
and when relay I00102 turns on, it rewrites the SP value and, at the same time, backs up
all SP values to the EEPROM.

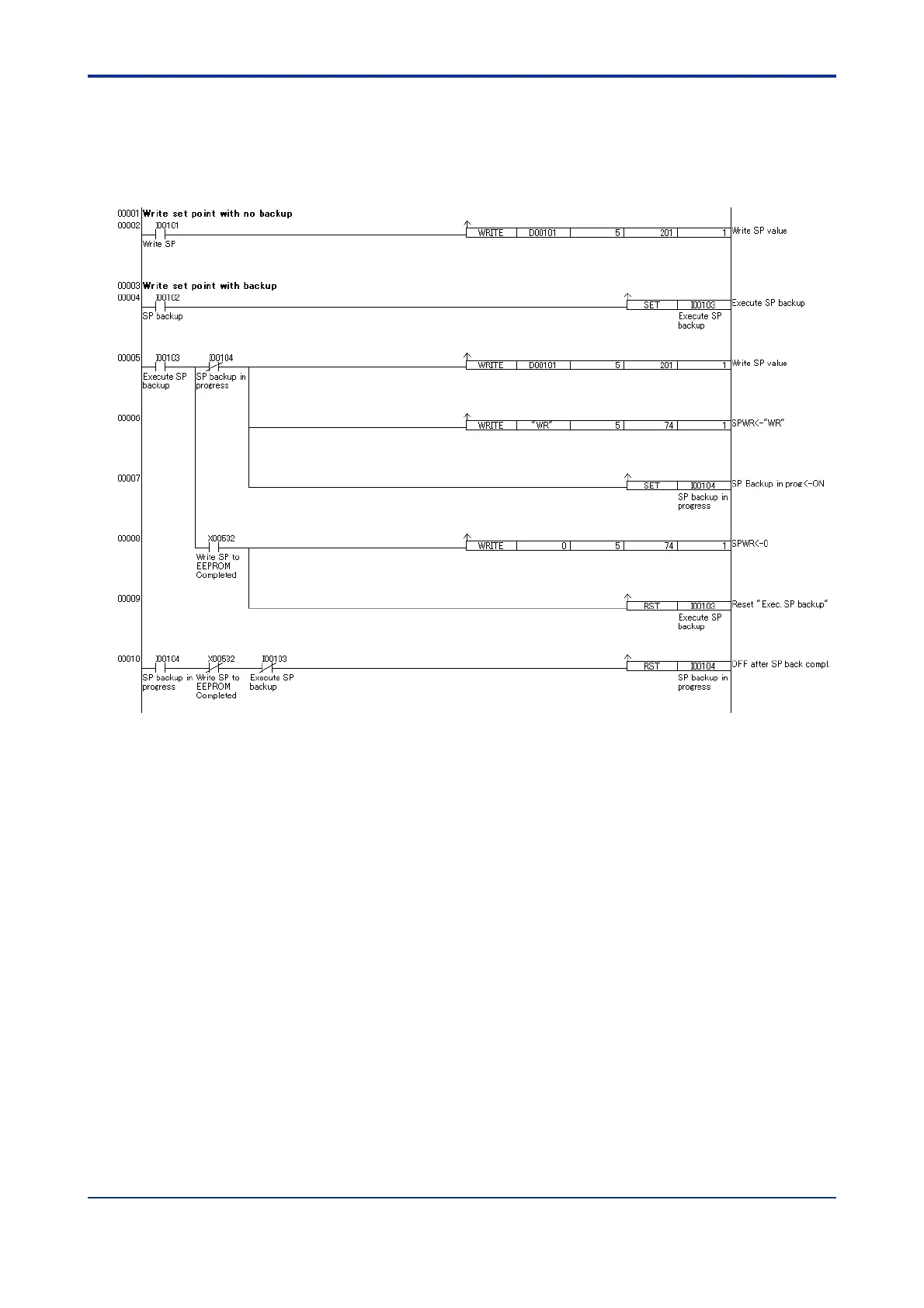

Figure B2.6 Sample Program for Writing SP Values to EEPROM
B2.5 Initializing All Settings
To initialize all settings, use the procedure described in B2.3, “How to Enable Settings,”
with the Setup Instruction Operand (OPE) register set to Initialize All Settings.
