B3.2.3 Sample Program for Setting I/O Parameters
This section shows a sample program for setting I/O parameters. The program sets the
input types, followed by the input ranges for loops 1 and 2.

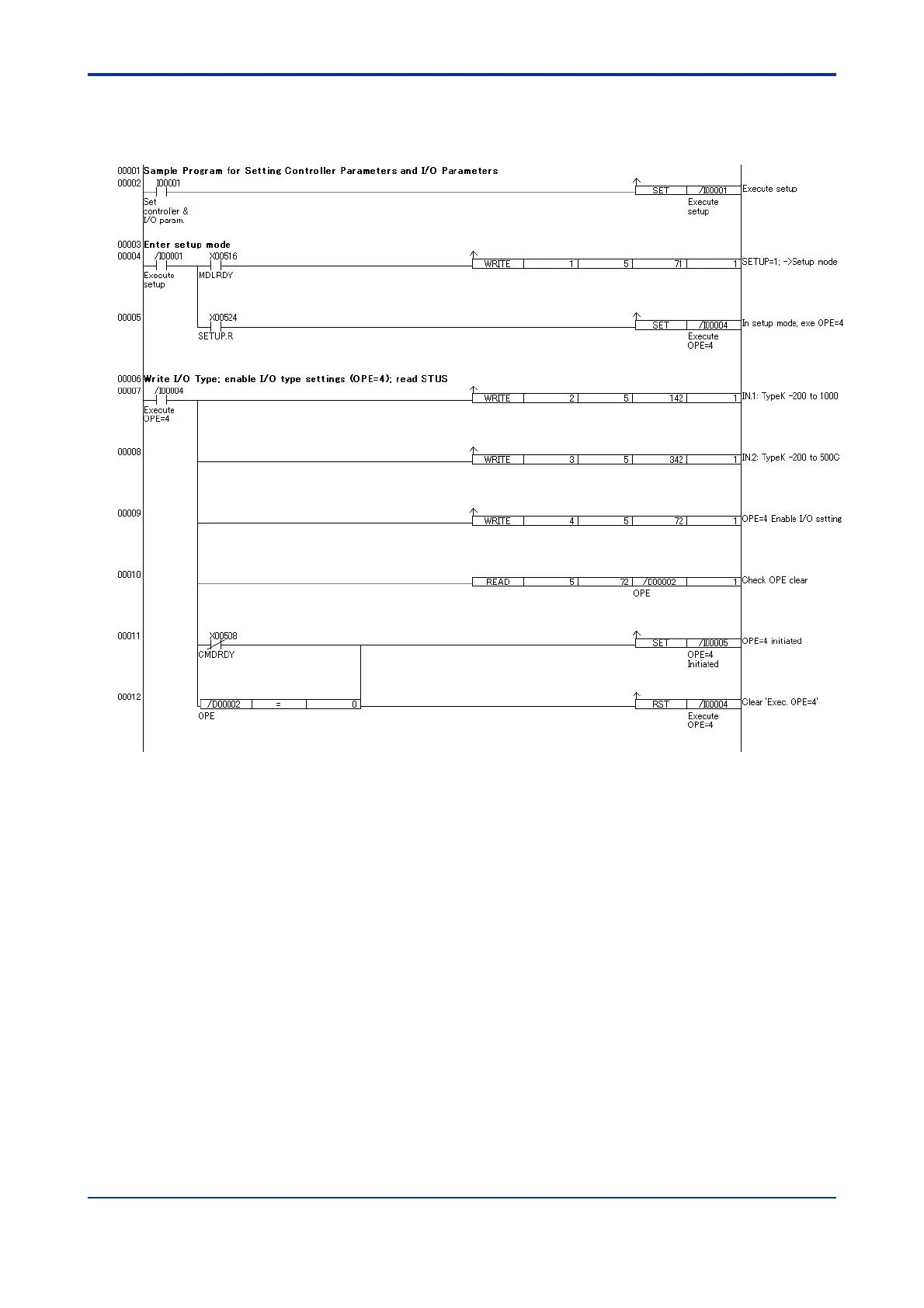

Figure B3.3 Sample Program for Setting I/O Parameters (1/3)
