YOKOGAWA F3CU04-1S User Manual

A4-14
IM 34M06H62-02E 2nd Edition : June 2008-00

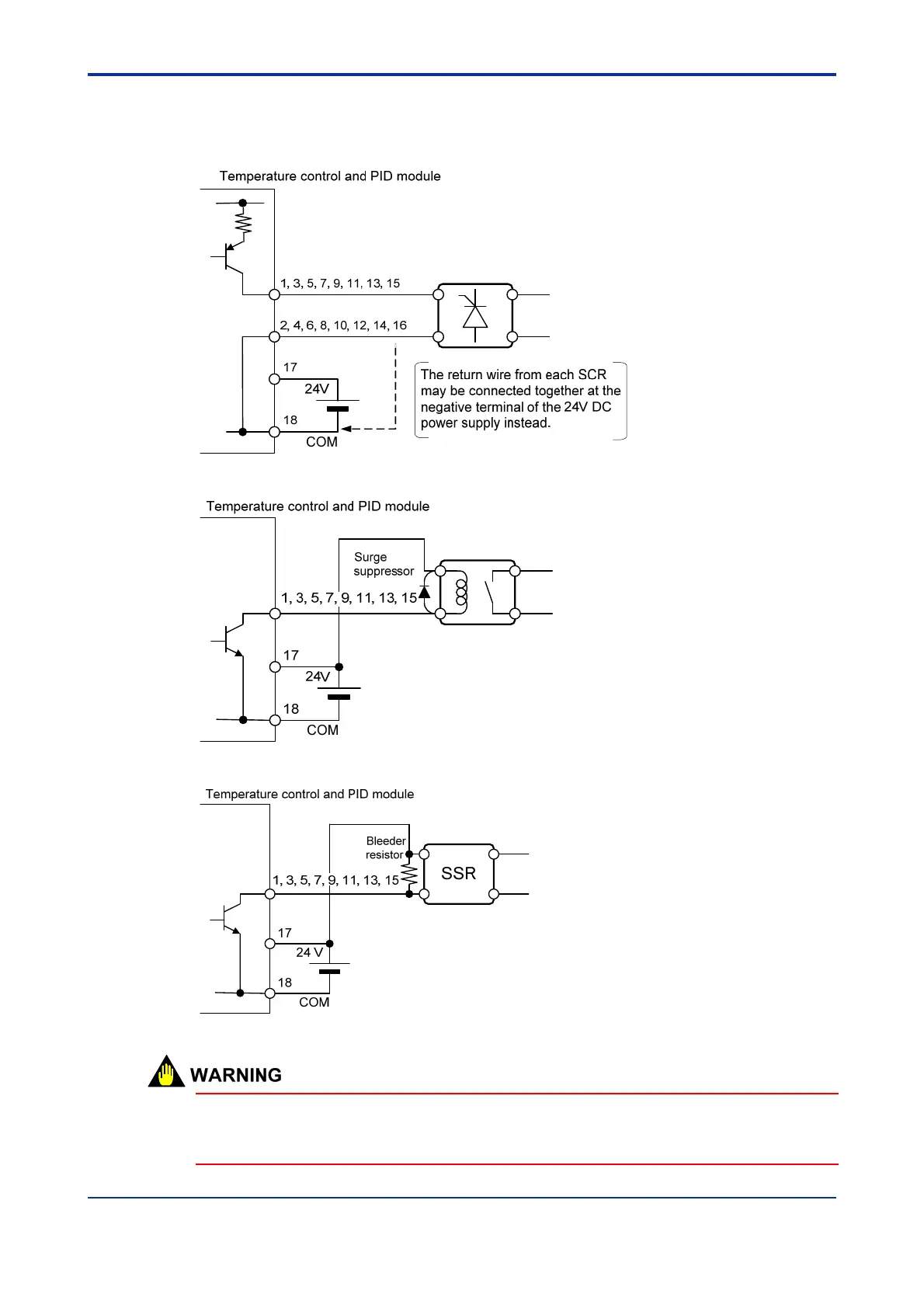

 Output Terminal Wiring Example for F3CU04-1S
The output terminals of F3CU04-1S may be configured either for open collector or analog
output (4-20 mA) for each loop by software.
Figure A4.12 Wiring Example for Connecting an SCR (analog output)
Figure A4.13 Wiring Example for Connecting a Relay (open collector output)
Figure A4.14 Wiring Example for Connecting an SSR (open collector output)
In each wiring example, no wire must be connected to any terminal whose terminal
number is not shown in the diagram. Always read Section A4.3.1, "Wiring Precautions"
before performing wiring.
