Writing to Registers (WRITE / HWR)
Use the Write instruction or High Speed Write instruction for writing to registers. These
instructions write the value stored in the specified data device number into the specified
area. Writing is performed in 16-bit units.

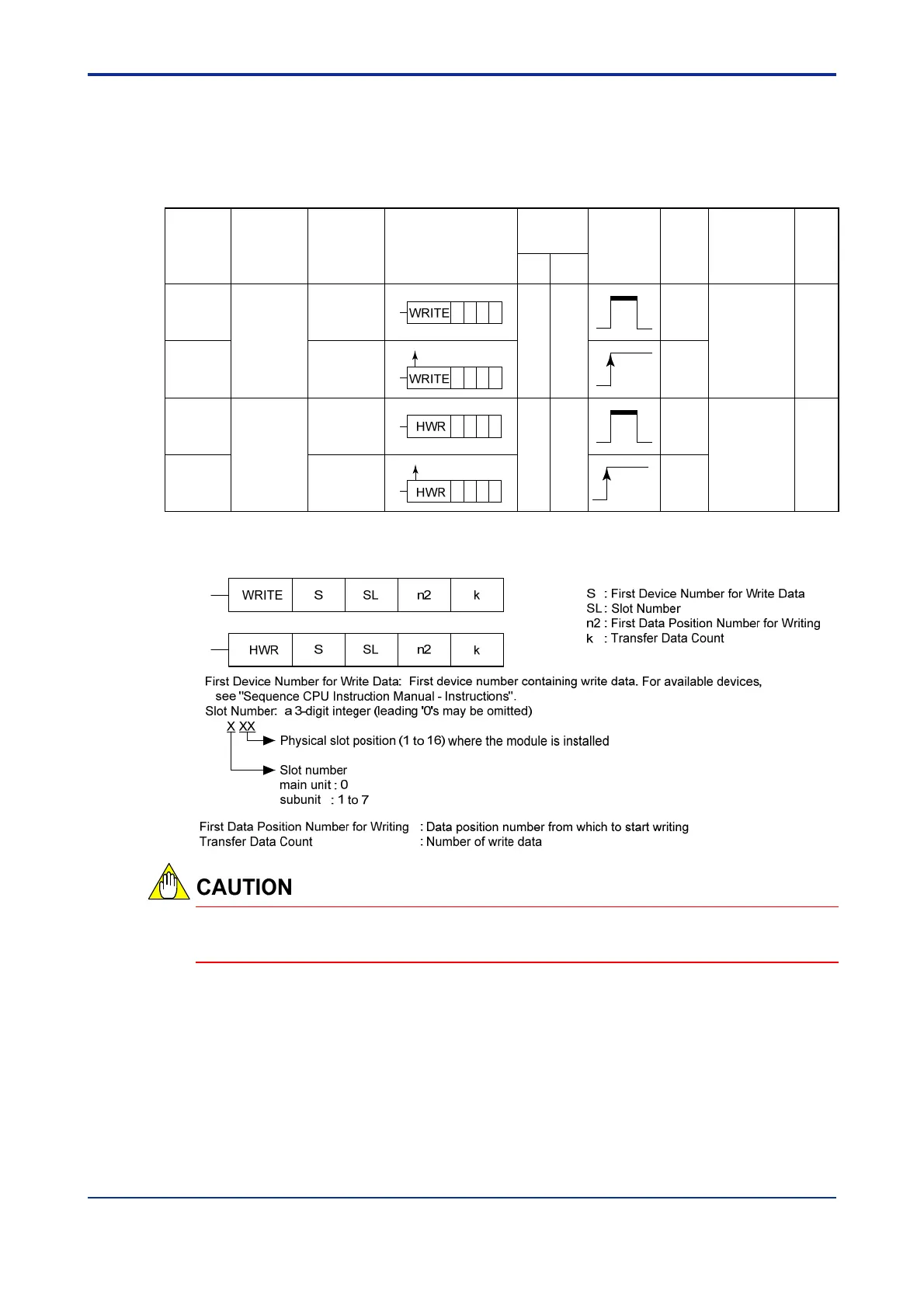

Table B1.2 Writing to Registers
Function
No.
Instruction Mnemonic Symbol
Is Input
condition
Required?
Execution
Condition
Step
count
Processing unit
Carry
Yes
No
82
Write
WRITE
5
16 bits
82P WRITE
6
84
High speed
write
HWR
5
16 bits
84P HWR 6
Description of Symbols
You must observe some precautions when writing to the module. For details, see Section
B1.3, “Reading and Writing after Powering On”.
