3-19
IM 04L20A01-01E
Names of Parts, Display Modes, and Common Operations
3
3. Press the [Media] soft key.
The floppy disk is detected, and the icon indicating that the floppy disk has been
inserted appears in the status display section of the screen.
Note
Keep the operation key panel closed at all times during operation except when inserting or
ejecting the external storage medium. The operation key panel protects the external storage
medium and the drive from foreign particles such as dust.

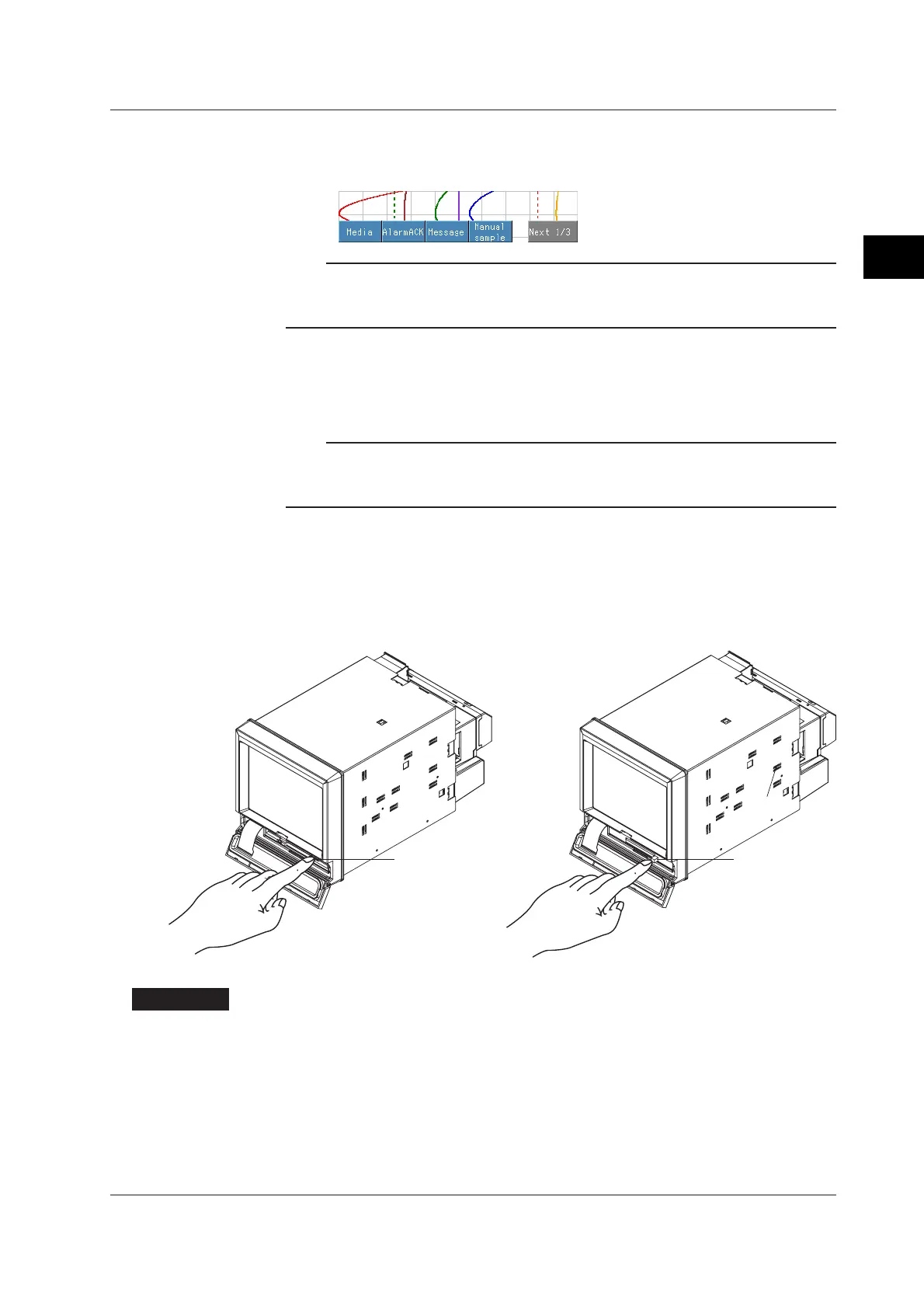

Ejecting the External Storage Medium
1. If the FX100 is turned ON, check that the external storage medium is not being
accessed.
Note
• The access lamp illuminates while the external storage medium is being accessed.
• If the data in the internal memory is being saved to the external storage medium, the
message “Data are being saved to the medium” appears.
2. Open the operation key panel by pressing down on the knob that is located in
the center of the upper section of the cover and pulling it forward.
3. Press the eject button and remove the external storage medium.
For floppy disk, press the FUNC key, then the [Media] soft key.
The external storage medium icon in the status display section disappears.
Floppy Disk
CF Memory Card
Eject button Eject button
4. Close the operation key panel.
Setup Items
Formatting the External Storage Medium
Use a formatted external storage medium.
The FX100 formats external storage media as follows (for the procedure in formatting
the external storage medium, see page 7-17).
• Floppy disk: 2HD, 1.44 MB.
• CF memory card: FDISK 1 partition (hard disk format).
External storage media that are formatted using other instruments can be used on the
FX100, if the format is the same. External storage media of formats other than those
listed above cannot be used.
3.9 Inserting and Ejecting the External Storage Medium
To Next Page
