Operations for Changing the Displayed Contents
6
6.3 Changing the Display Update Rate of the Trend
Screen
This section explains how to change the display update rate of the trend screen.
Note
• The display update rate cannot be changed while data acquisition is in progress.
• The sampling interval of the display data is also determined by the display update rate.
Display Update Rate <Setting Mode>
Procedure
Setup Display

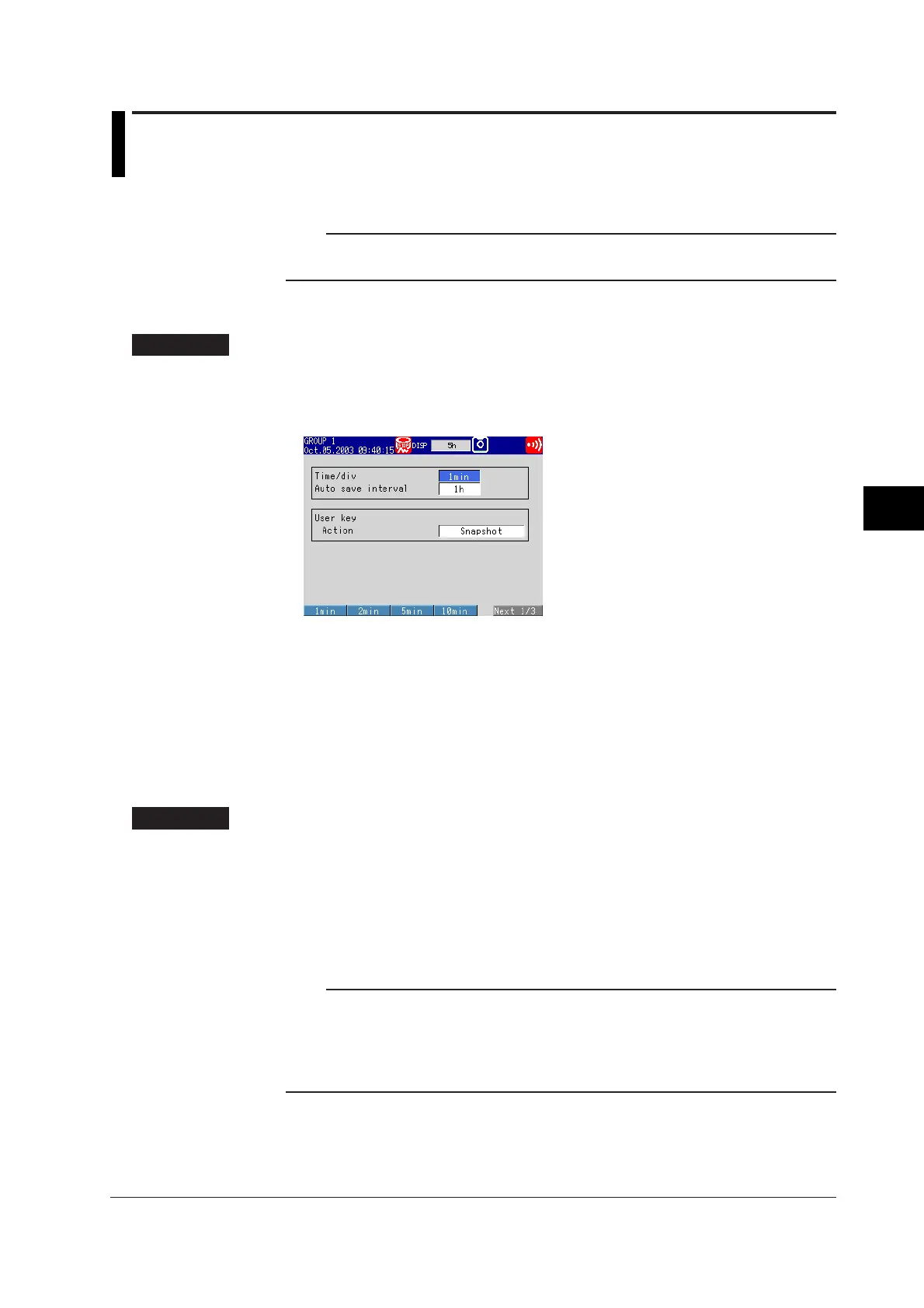

MENU key (switch to setting mode) > #3 soft key (select [Trend/Save interval, User
key])
From the operation mode, use the above keys to open the following setting display.
Setup Procedure
1. Use the arrow keys to move the cursor (blue) to [Time/div].
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next
item.
3. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item.
Setup Items
Display Update Rate
• Time/div
Select the time corresponding to 1 division of the time axis during trend display from
the following.
15 s*, 30 s*, 1 min, 2 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 2 h, 4 h, and 10
h
* Can be selected only on the FX103.
Note
When [Auto save] is set for saving data to the external storage medium, the [Auto save
interval] box is displayed under [Time/div]. [Auto save interval] is the interval at which the
display data residing in the internal memory are saved to the external storage medium. The
selectable values for [Auto save interval] vary depending on the [Time/div] setting. For the
setting procedure, see section 7.1.
