Operations for Changing the Displayed Contents
6
Chapter 6 Operations for Changing the Displayed Contents
6.1 Change the Group Settings
This section explains how to rename the groups of trend, digital, and bar graph screens
and how to register channels to those groups.
Group Name, Channel Registration to Groups <Setting Mode>
Procedure
Setup Display
MENU key (switch to setting mode) > #5 soft key (select [Display]) > #1 soft key
(select [Group set, Trip line])

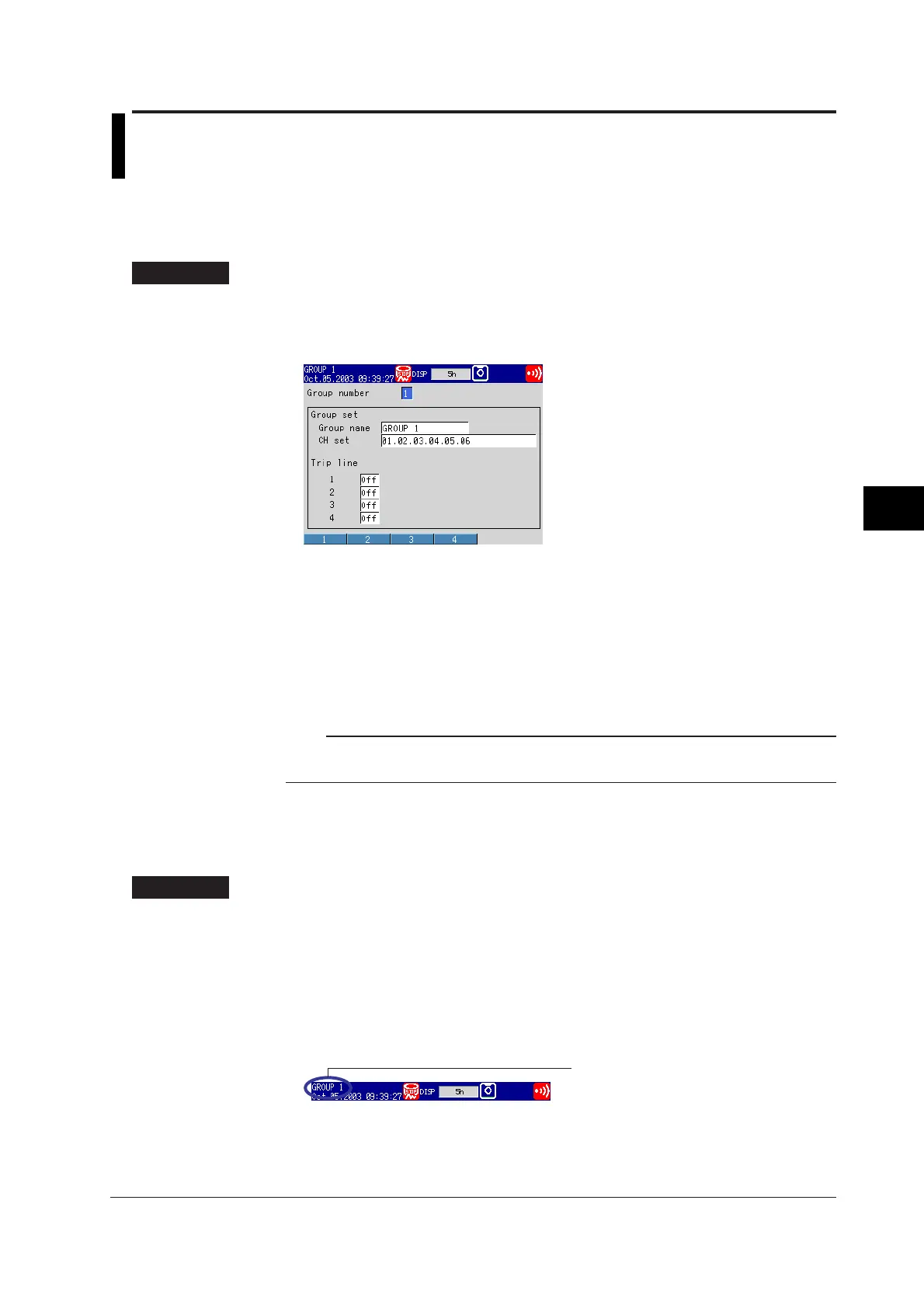

From the operation mode, use the above keys to open the following setting display.
Setup Procedure
1. Use the arrow keys to move the cursor (blue) to the item box you wish to
change.
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next
item.
3. Repeat steps 1 and 2 to change the value of all the items you wish to change.
Note
The [Group name] and [CH set] are set using the pop-up window that appears by pressing
the [Input] soft key.
4. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item box.
Setup Items
Renaming Groups and Registering Channels to Groups
• Group number
Select the group you wish to set from [1] to [4].
• Group name
Enter the group name using up to 16 alphanumeric characters. The initial values of
group name are as follows:
Group 1: GROUP 1, Group 2: GROUP 2, Group 3: GROUP 3, Group 4: GROUP 4
Group name is display in the status display section.
Group name
• CH set
Select up to six channels from measurement channels (FX103: 01 to 03, FX106: 01 to
06, FX112: 01 to 12) and computation channels (31 to 42, /M1, /PM1 option).
To Next Page
