YOKOGAWA FX106 User Manual

5-5
IM 04L20A01-01E
5
Operations on the Operation Screens

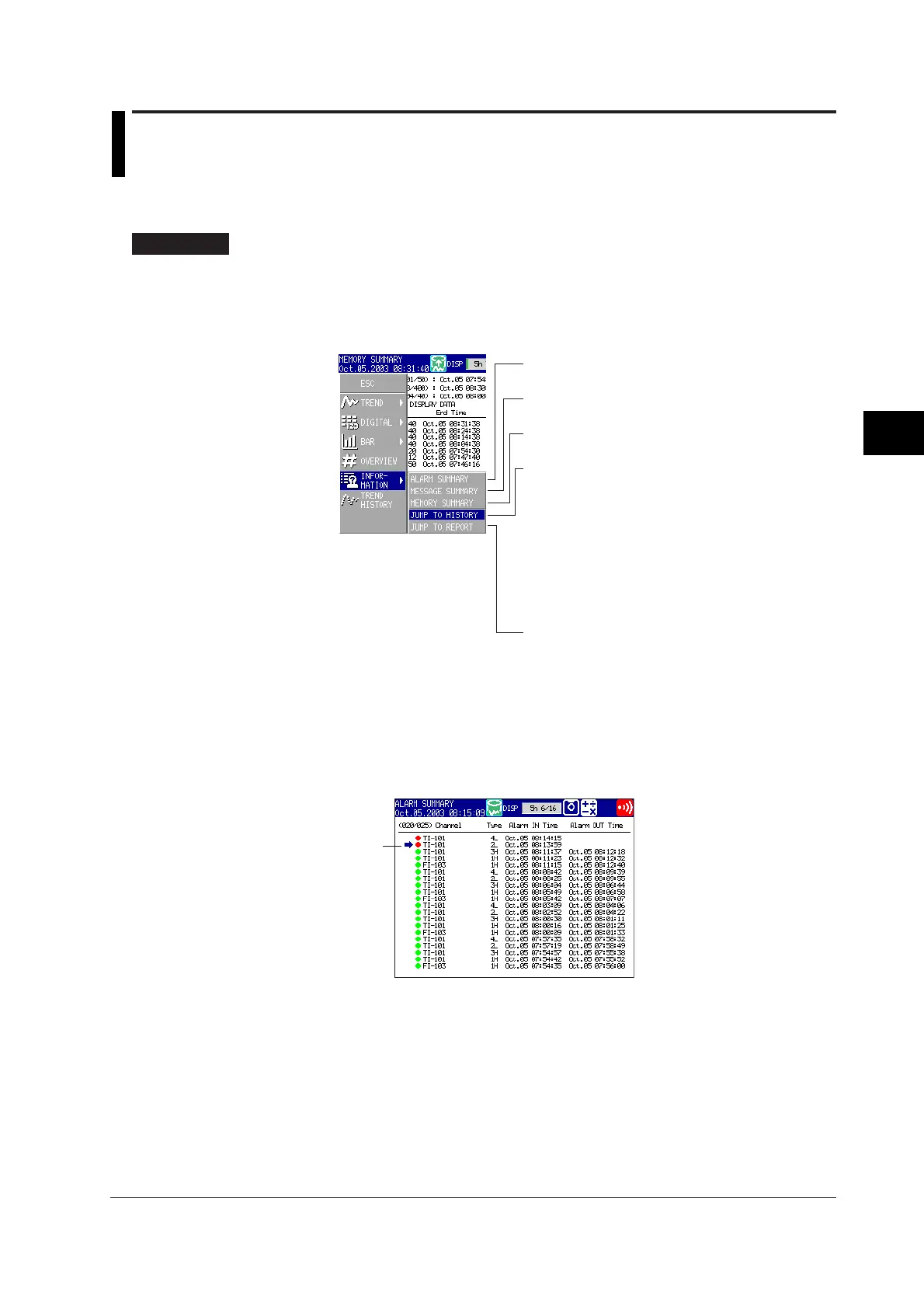

5.3 Displaying Information List (Alarm Summary,
Message Summary, and Memory Summary)
Alarm Summary, Message Summary, and Memory Summary <Operation Mode>
For details, see section 1.4, “ Display Function .”
Procedure
Changing the Display
1. Press the DISP/ENTER key to display the screen menu.
2. Press the right arrow key to display the sub menu.
3. Select the sub menu item using the up and down arrow keys.
ALARM SUMMARY:
Displays the alarm summary
MESSAGE SUMMARY:
Displays the message summary.
Memory summary:
Displays the memory summary
JUMP TO HISTORY:
When alarm summary is displayed
Displays the historical trend for when the
alarm selected using the cursor occurred.
When message summary is displayed
Displays the historical trend for when the
message selected using the cursor was
written.
When memory summary is displayed
Displays the historical trend for the data
selected using the cursor.
JUMP TO REPORT:
(Only when memory summary is displayed)
Displays the most recent report data.
Sub menu of the information screen
4. Press the DISP/ENTER key to execute the display.
To close the menu without switching the screen, press the ESC key.
Recalling the Historical Trend for When the Alarm Occurred.
This operation is carried out on the alarm summary.
1. Move the cursor using the up and down arrow keys and select the alarm.
Cursor
2. Display the historical trend according to the procedure described in “ Changing
the Display .”
The data of the following type is displayed.
• When configured to acquire the display data to the internal memory: Display
data
• When configured to acquire the event data to the internal memory: Event
data
• When configured to acquire the display data and the event data to the
internal memory: Data type selected in the memory summary
