Appendix 6 List of Parameters
Below is a list of parameters for the model with the various function options.

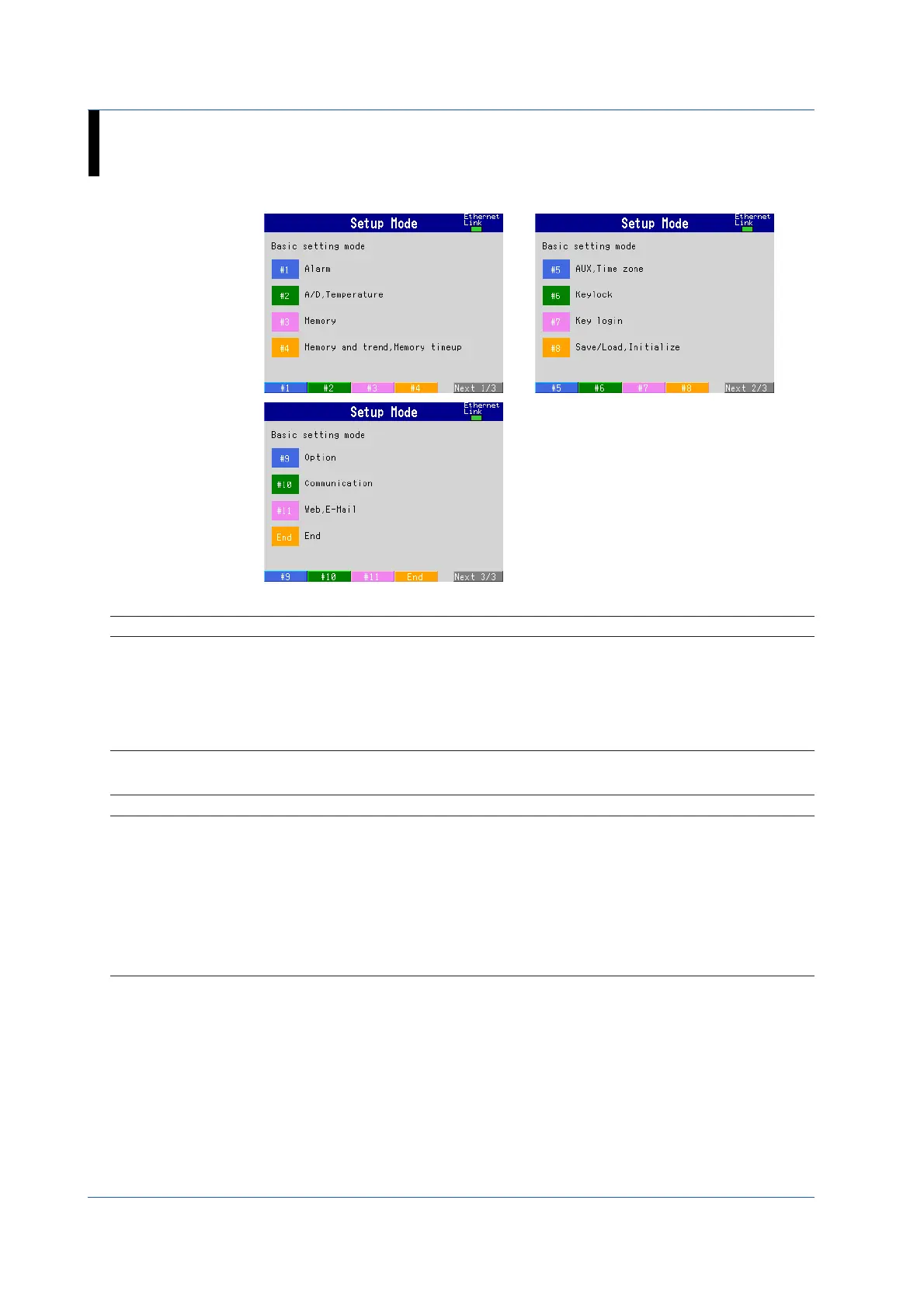

Basic Setting Mode
#1 Alarm
Parameter Selectable Range or Selections Initial Value
Alarm > Reflash On/Off Off
Alarm > Relay > AND None, I01, I01-I02, I01-I03, ... , or I01-I06 None
Alarm > Relay > Action Energize or De_energize Energize
Alarm > Relay > Behavior Hold or Nonhold Nonhold
Alarm > Indicator Hold or Nonhold Nonhold
Alarm > Rate of change > Increase/Decrease 1 to 15 1
Alarm > Hysteresis On/Off On
#2 A/D, Temperature
Parameter Selectable Range or Selections Initial Value
A/D > Integrate FX103: Auto, 50 Hz, or 60 Hz Auto
FX106/FX112: Auto, 50 Hz, 60 Hz, or 100 ms Auto
A/D > Scan interval FX103: 250 ms 250 ms
FX106/FX112: 1 s or 2 s 1 s
A/D > First-CH 01 to 12 01
A/D > Last-CH 01 to 12 01
A/D > Burnout set Off, Up, or Down Off
A/D > RJC Internal or External Internal
A/D > Volt (uV) –20000 µV to 20000 µV0 µV
Temperature > Unit C or F C
