Chapter 8 Computation and Report Function Related Operations (/M1 or /PM1 Option)
8.1 Assigning Computation Channels and Setting
Computing Equations, Constants and Tags
This section explains how to set computing equations to computation channels and how
to set tags. You cannot set computing equations while data is being acquired to the
internal memory or while computation is in progress.
Computing Equations, Constants, and Tags <Setting Mode>
Procedure
Opening the Setting Display
• Assigning computation channels and setting equations

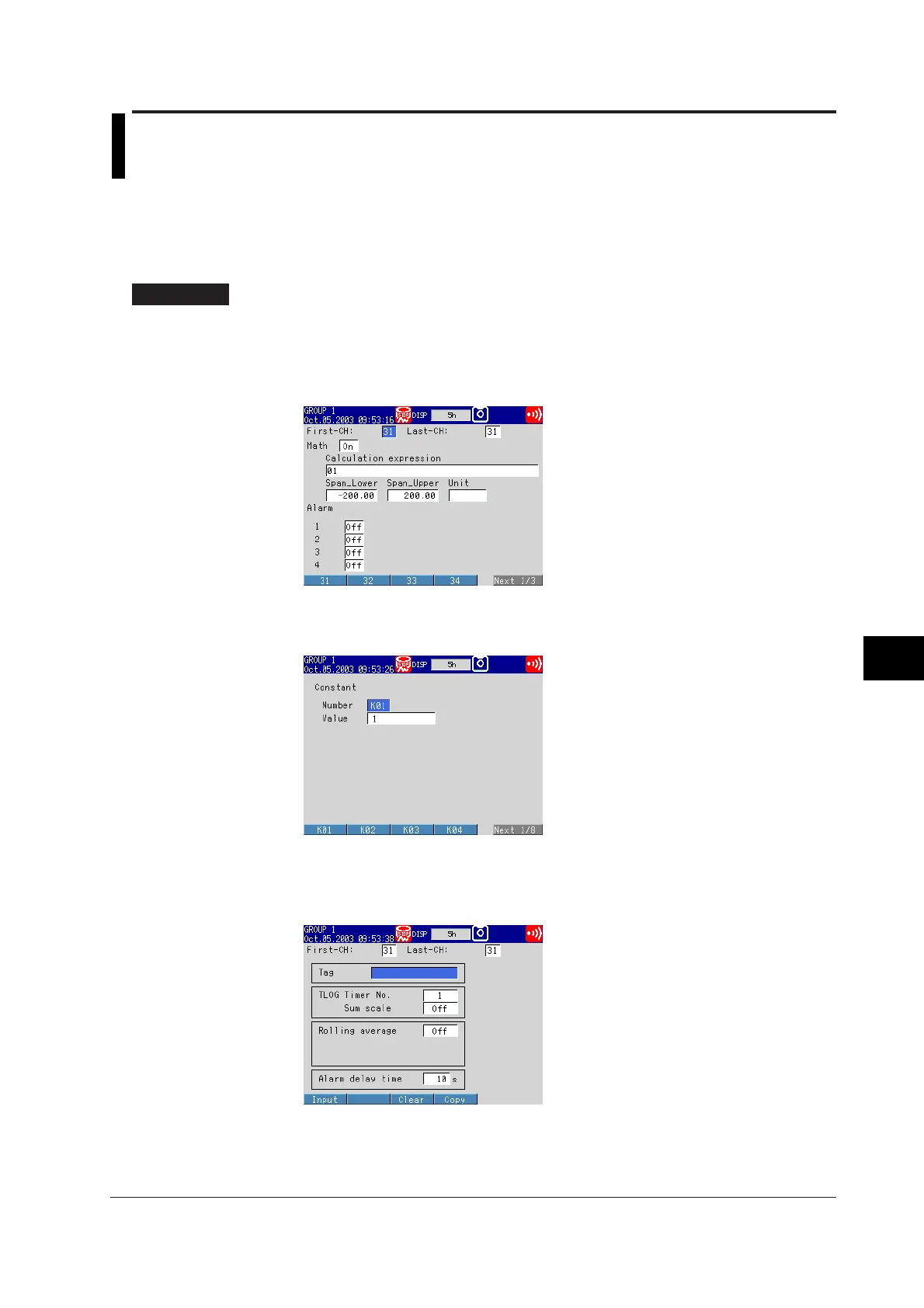

MENU key (switch to setting mode) > #9 soft key (select [Math set1 (Expression,
Alarm)])
From the operation mode, use the above keys to open the following setting display.
• Assigning constants used in equations of computation channels
MENU key (switch to setting mode) > #10 soft key (select [Math set2 (Constant)])
From the operation mode, use the above keys to open the following setting display.
• Setting tags of computation channels
MENU key (switch to setting mode) > #11 soft key (select [Math set3 (Tag, TLOG,
Rolling average, Alarm delay time)])
From the operation mode, use the above keys to open the following setting display.
