4-3
IM 04L20A01-01E
Measurement Input and Alarm Setup Operations
4
Range, Filter/Moving Average <Setting Mode>
The range setting operation is unavailable while the FX100 is writing data to the internal
memory or performing computations.
Procedure

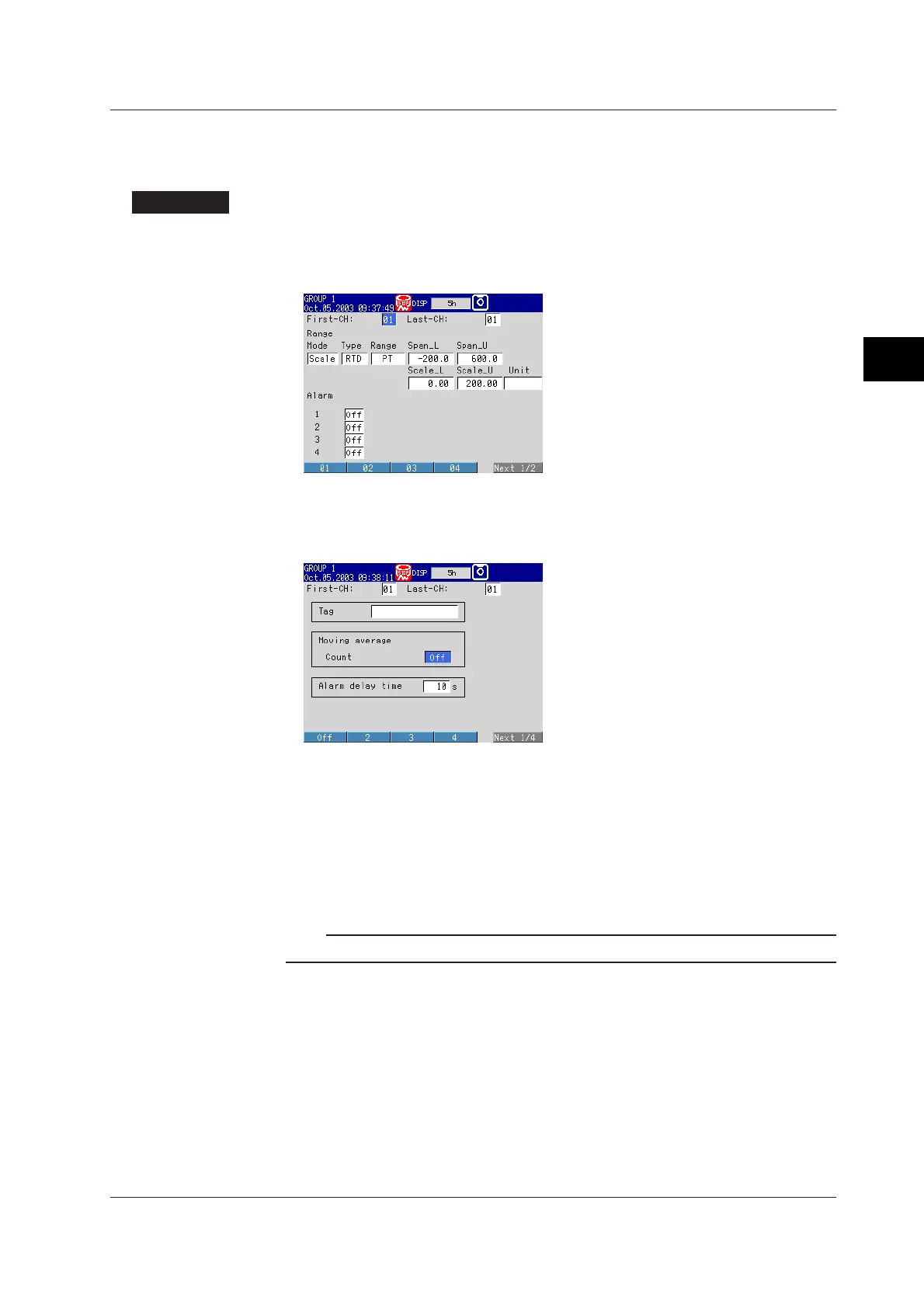

Opening the Setting Display
• Setting the range
MENU key (switch to setting mode) > #1 soft key (select [Range, Alarm])
From the operation mode, use the above keys to open the following setting display.
• Setting the filter/moving average
MENU key (switch to setting mode) > #2 soft key (select [Tag, Moving average (or
Filter), Alarm delay])
From the operation mode, use the above keys to open the following setting display.
Setup Procedure
1. Use the arrow keys to move the cursor (blue) to the item box you wish to
change.
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next
item.
3. Repeat steps 1 and 2 to change the value of all the items you wish to change.
Note
The [Unit] is set using the pop-up window that appears by pressing the [Input] soft key.
4. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item box.
4.1 Setting Parameters Related to Measurement Inputs
To Next Page
