YOKOGAWA FX106 User Manual

5-2 IM 04L20A01-01E

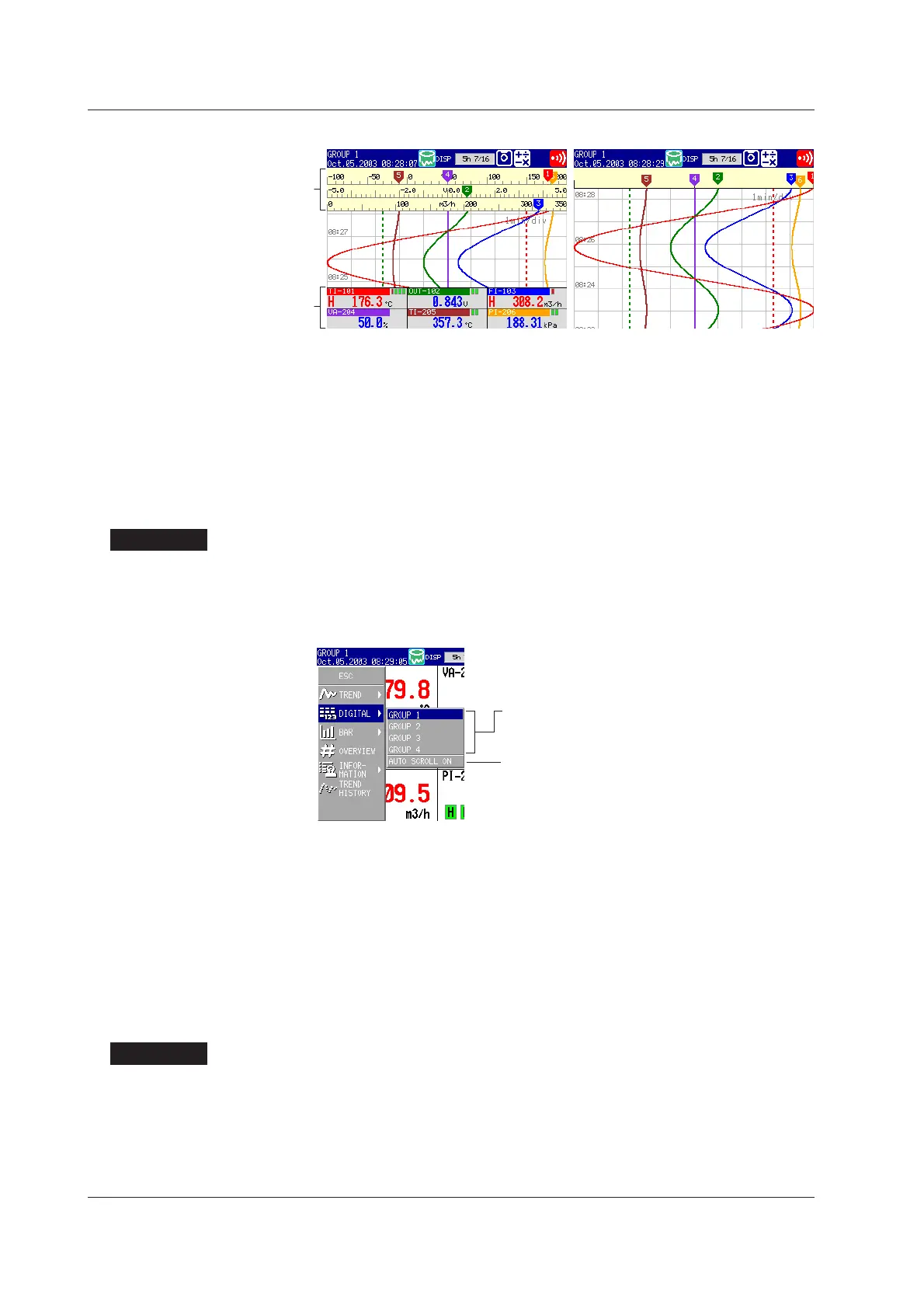

SCALE: ON, DIGITAL: ON SCALE: OFF, DIGITAL: OFF
Scale
Numerical display
section
Auto Switching of Groups
When [AUTO SCROLL ON] is selected, the displayed group on the trend, digital, and
bar graph screens can be automatically switched at a specified interval. In each
screen, the displayed group rotates from group 1 to group 4. You can select 5 s, 10 s,
20 s, 30 s, and 1 min for the switch interval.
For the procedure related to setting the switch interval (scroll time), see section 6.11.
Digital Screen (Numerical Display) <Operation Mode>
For details, see section 1.4, “ Display Function .”
Procedure
Changing the Display
1. Press the DISP/ENTER key to display the screen menu.
2. Press the right arrow key to display the sub menu.
3. Select the sub menu item using the up and down arrow keys.
Sub menu of the digital screen
AUTO SCROLL ON:
Automatically switches the displayed groups
(see "
Explanation .")
AUTO SCROLL OFF:
Cancels the auto switching of the displayed
GROUP 1 to GROUP 4: Displays group 1 to 4.
The specified group name is displayed
in place of GROUP1 to GROUP4.
4. Press the DISP/ENTER key to execute the display.
To close the menu without switching the screen, press the ESC key.
Changing the Displayed Group Using the Arrow Keys
Press the right arrow key while displaying the trend, digital, or bar graph screen to
rotate the displayed group from group 1 to group 4.
Press the left arrow key to rotate the displayed group in reverse order.
Bar Graph Screen <Operation Mode>
For details, see section 1.4, “ Display Function .”
Procedure
Changing the Display
1. Press the DISP/ENTER key to display the screen menu.
2. Press the right arrow key to display the sub menu.
5.1 Displaying Measured Data in Waveform, Numerical Values, or Bar Graph (Trend, Digital, and Bar Graph
Screens)
