Operations for Changing the Displayed Contents
6
Setup Items
Bar Graph Base Position
• First-CH/Last-CH
Set the target channel (common with the [Zone] setting).
• Graph
• Bar graph
Set the base position of the bar graph when set to horizontal display to [Normal] or
[Center]. When the bar graph is displayed vertically, the base position is fixed to
[Normal] (the bottom of the bar graph is the base position).

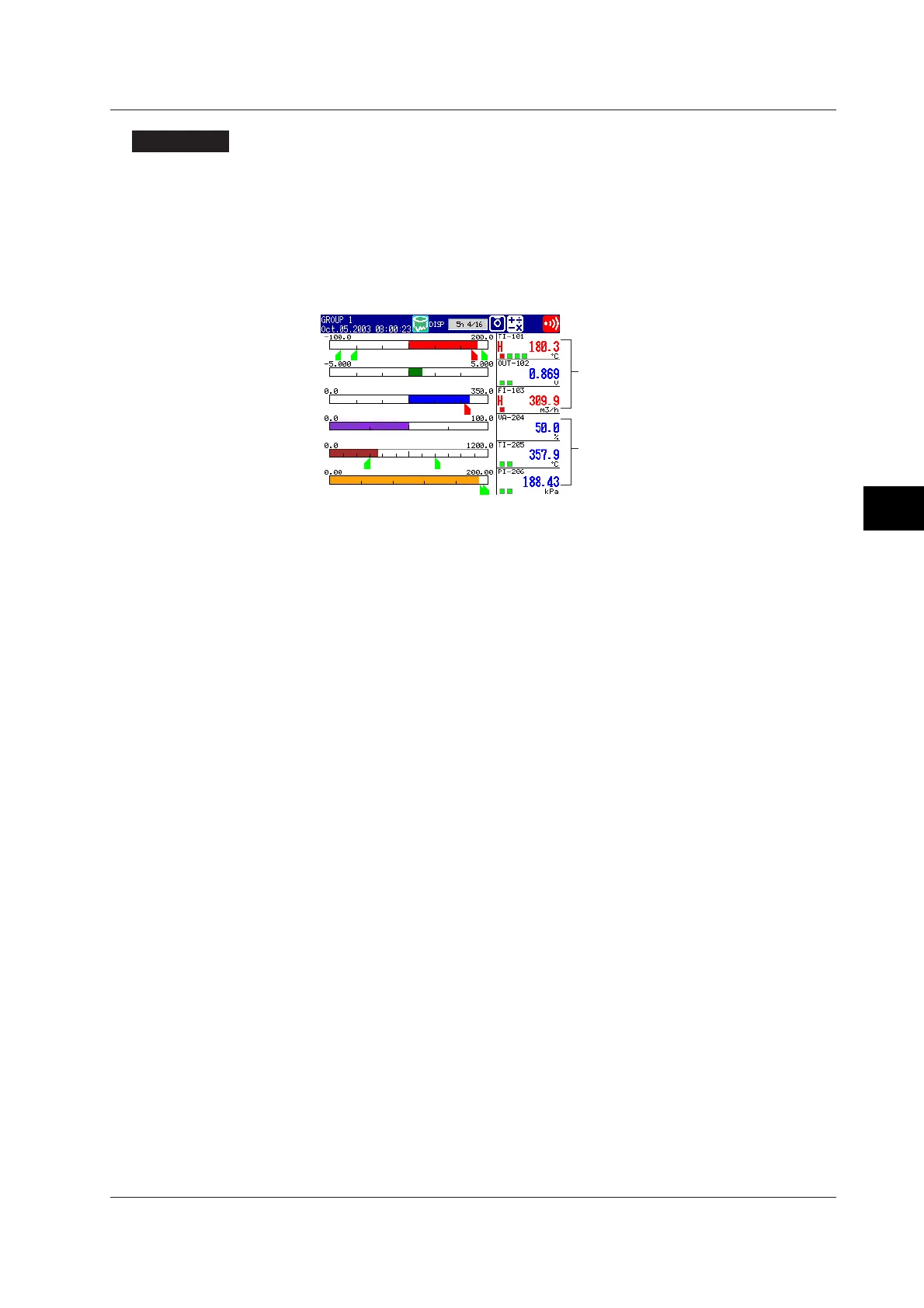

Bar graph base position: [Center]
Bar graph base position: [Normal]
Display Direction of the Bar Graphs
•Direction
• Bar graph
Select the display direction of bar graphs from [Horizontal] or [Vertical].
6.10 Changing the Display of Bar Graphs
