YOKOGAWA FX106 User Manual

8-10 IM 04L20A01-01E
When Relative Is Selected
• Interval
Set the time until the end of the interval in “hour:minute” (00:01 to 24:00).
• Reset
Set whether to reset the TLOG computation value at every interval [On] or [Off].
• Action
See “
Data Save at Intervals Specified by the Timer ” below.
When Absolute Is Selected
• Interval
Set the time until the end of the interval from the following 19 types.
1min, 2min, 3min, 4min, 5min, 6min, 10min, 12min, 15min, 20min, 30min, 1h, 2h,
3h, 4h, 6h, 8h, 12h, and 24h
• Ref. time
Set the time to be used as the reference. The reference time is set in the range of
0:00 to 23:00 at 1 hour steps.
• Reset
Set whether to reset the TLOG computation value at every interval [On] or [Off].
• Action
See “
Data Save at Intervals Specified by the Timer ” below.
Data Save at Intervals Specified by the Timer
• Action
If set to [DataSave], the instantaneous values of all measurement/computation
channels are written to the internal memory at every interval. This data is called
“TLOG data.” Select [Off] to disable this function.
Note
• TLOG data is acquired from the time the computation is started till the computation is
stopped.
• When storing the data to the external storage medium, the data is stored to the TLOG data
file (.dtg extension).

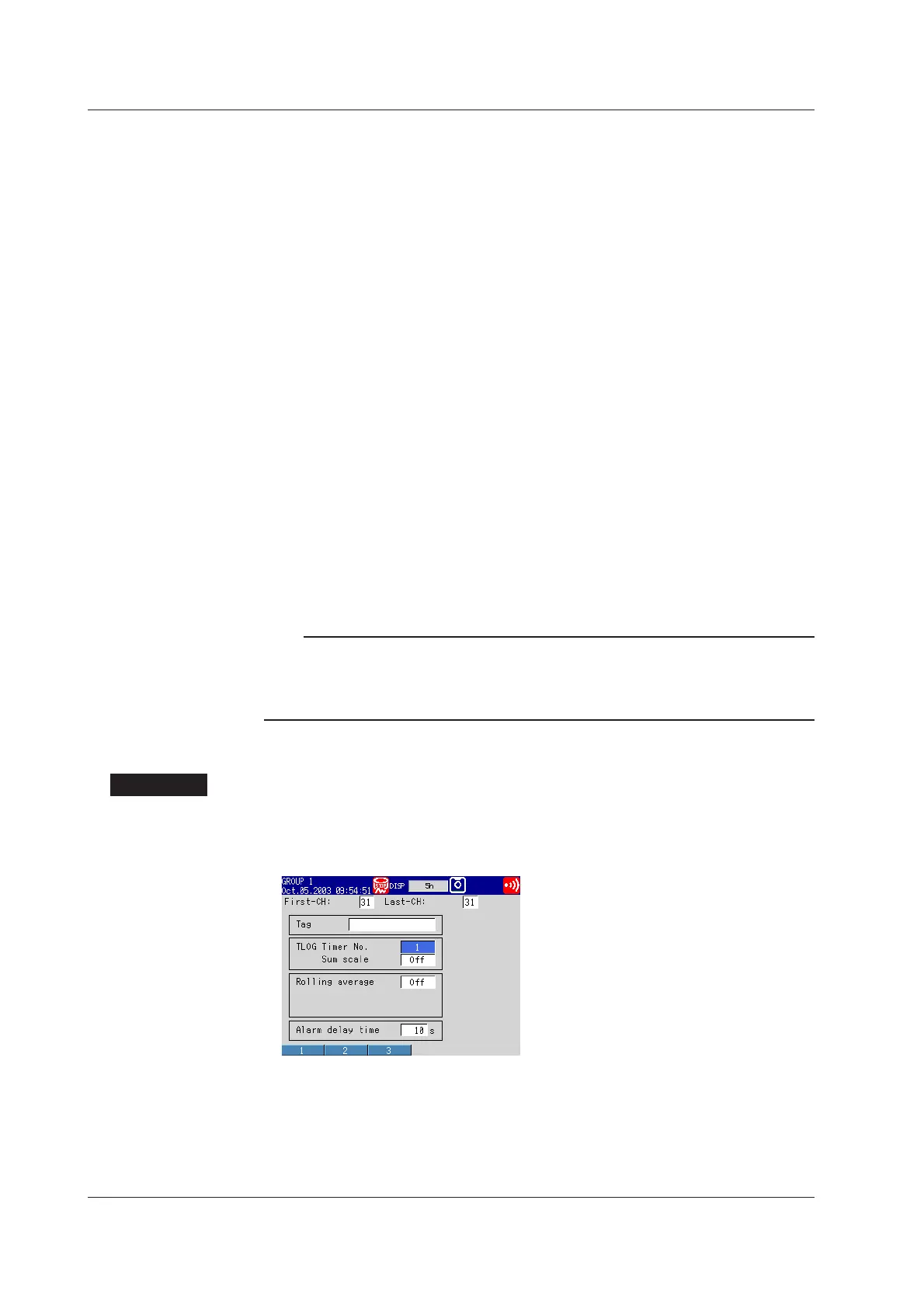

Selecting the Timer, Sum Scale <Setting Mode>
Procedure
Opening the Setting Display
MENU key (switch to setting mode) > #11 soft key (select [Math set3 (Tag, TLOG,
Rolling average, Alarm delay time)])
From the operation mode, use the above keys to open the following setting display.
Operations on the Display
1. Use the arrow keys to move the cursor (blue) to the item box you wish to
change.
A soft key menu is displayed at the bottom of the display.
8.4 Setting the Timer for Statistical Computations (TLOG Computation) and Data Save (TLOG Data)
