8-16 IM 04L20A01-01E
Starting/Stopping the Report Function <Operation Mode>
The start/stop operation of the creation of reports is synchronized to the start/stop
operation of the data acquisition to the internal memory.
Procedure
Starting the Report Function
Press the START key.
The report function starts. When the time to create the report arrives, the report data
is written to the internal memory.

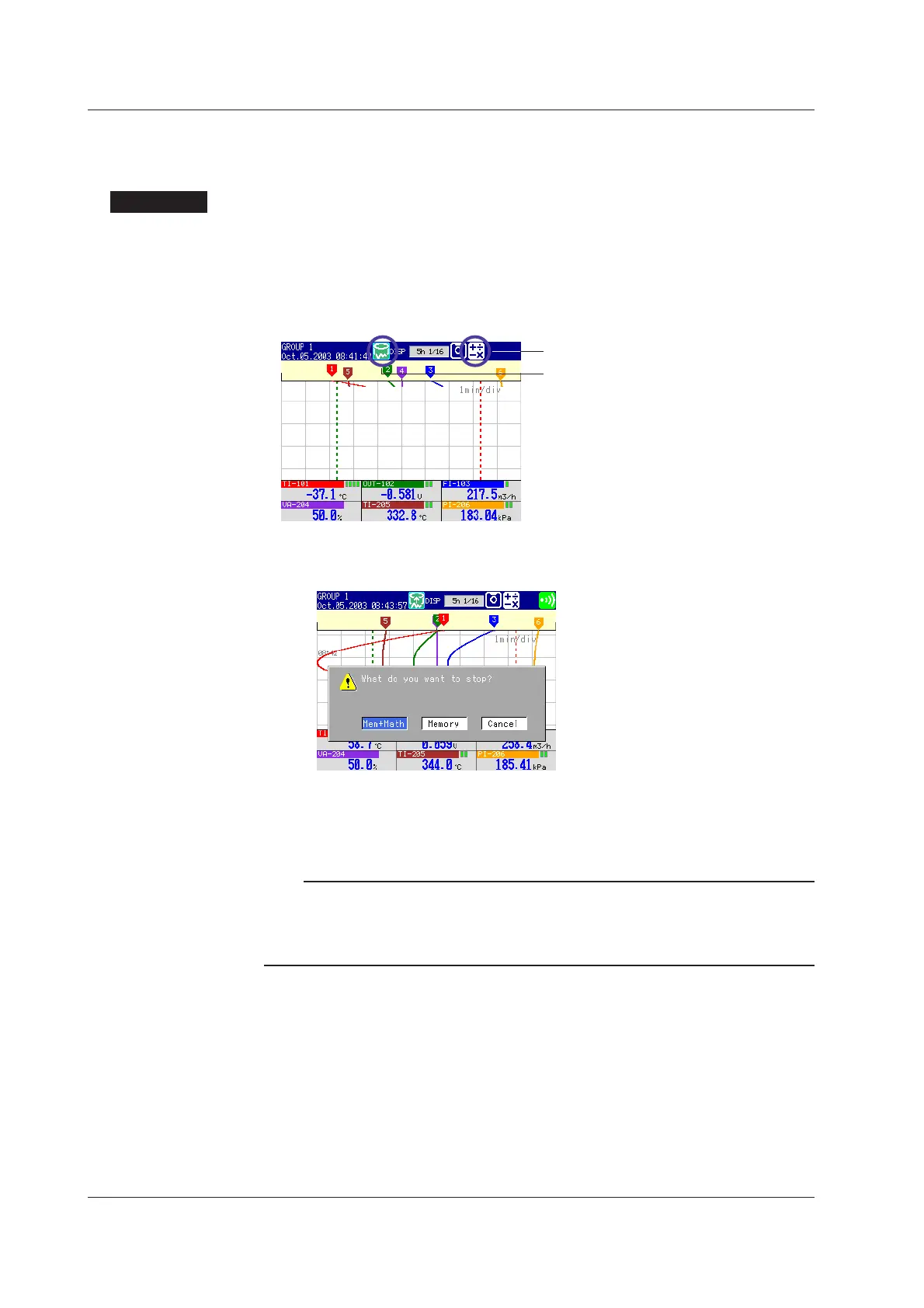

As shown in the following figure, the internal memory icon changes from stop
indication to run indication. The computation icon is also displayed.
Computation icon
Internal memory icon
Stopping the Report Function
1. Press the STOP key.
The following dialog box appears for confirmation.
2. Select [Mem+Math] or [Memory] using the left and right arrow keys.
3. Press the DISP/ENTER key.
When data acquisition to the internal memory stops, the internal memory icon
changes from run indication to stop indication.
Note
• If you clear the data in the internal memory (see section 7.8), report data is cleared along with
other data such as display data.
• If you stop the report function, the report file on the external storage medium is closed. If you
start the report function again, the data is saved to a new file.
8.6 Creating Reports
To Next Page
