YOKOGAWA FX106 User Manual

IM 04L20A01-01E
1-12

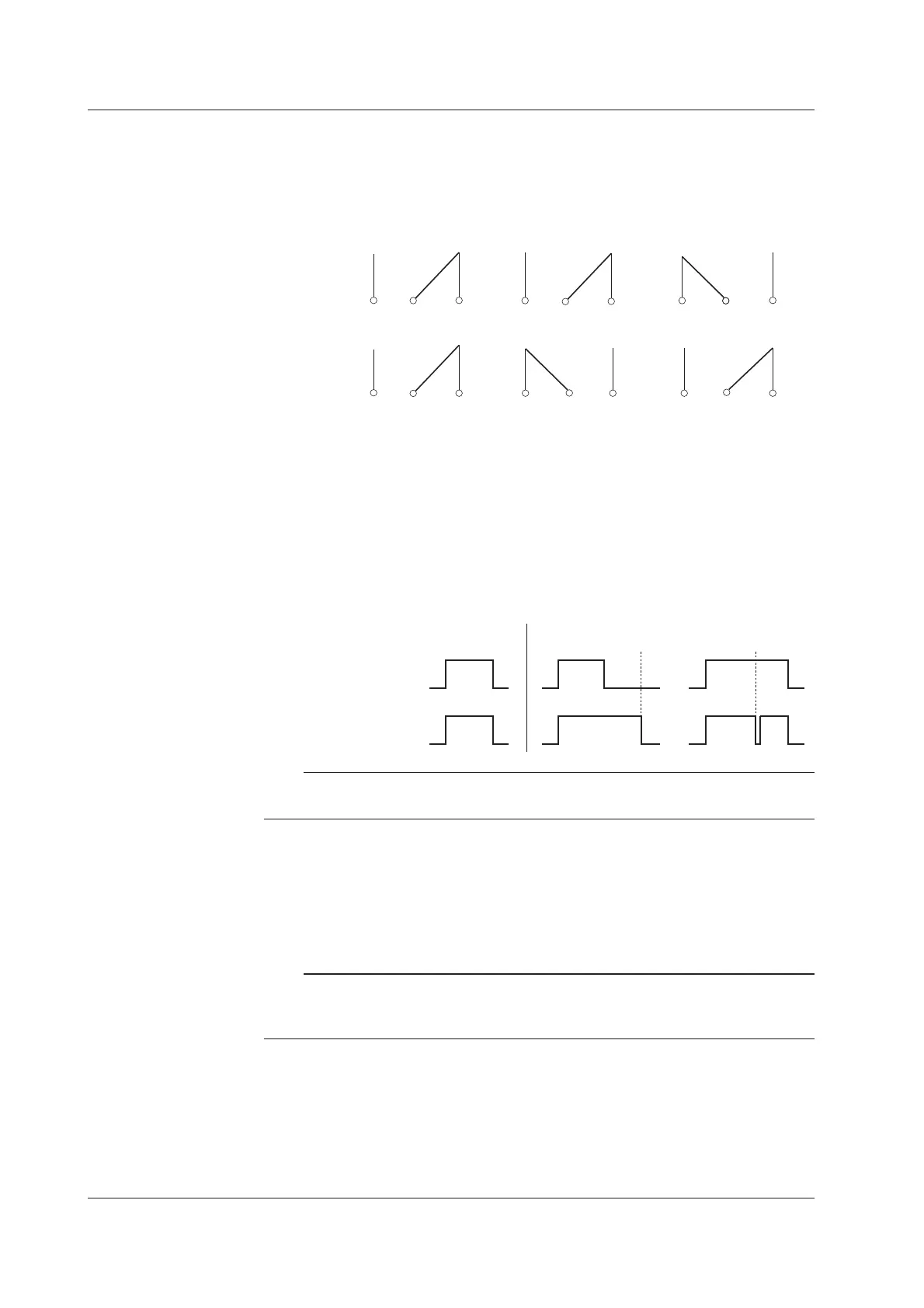

Energize or De-energize Operation of the Alarm Output Relay
You can select whether to energize or de-energize the alarm output relay when the
alarm occurs. By selecting de-energize, the alarm output relay will operate in the
same manner as when the alarm occurs when the power supply is disrupted.
Energize or de-energize applies to all alarm output relays. The initial value is set to
Energize.
NO Energize
De-energize
CNC NOCNC NO C NC
NO C NC NO C NCNO C NC
When power is turned OFF
NO: Normally opened, C: common, NC: normally closed
When no alarm occurs When an alarm occurs
Hold/Non-Hold Operation of the Alarm Output Relay
There are two methods in operating the alarm output relay.
• Turns OFF the output relay when the cause of the alarm is no longer met (non-
hold).
• Holds the output relay ON until the alarm acknowledge operation is executed
(hold).
Alarm
Release
Alarm ACK Alarm ACK
Occurrence
Non hold Hold
Alarm
Output Relay
Released
Activated
Note
If the reflash alarm is turned ON, I01 to I03 are set to non-hold. Specifying hold produces no
effect.
Alarm Output Release (Alarm ACK) Operation
When you perform the alarm ACK procedure, all alarm displays and relay outputs (/
A1, /A2, /A3 option) are released. However, this procedure is not valid if the alarm
display/output relay operation is set to non-hold. This cancellation procedure can be
performed using FUNC key or USER key, or via remote control (/R1, /PM1 option).
Note
When the basic setting mode is entered, the activated/released condition of the previous
alarm output relay is held. Alarm detection is not carried out in the basic setting mode, and
you cannot release the alarm output relay.
1.3 Alarm Function
