YOKOGAWA FX106 User Manual

3-2 IM 04L20A01-01E

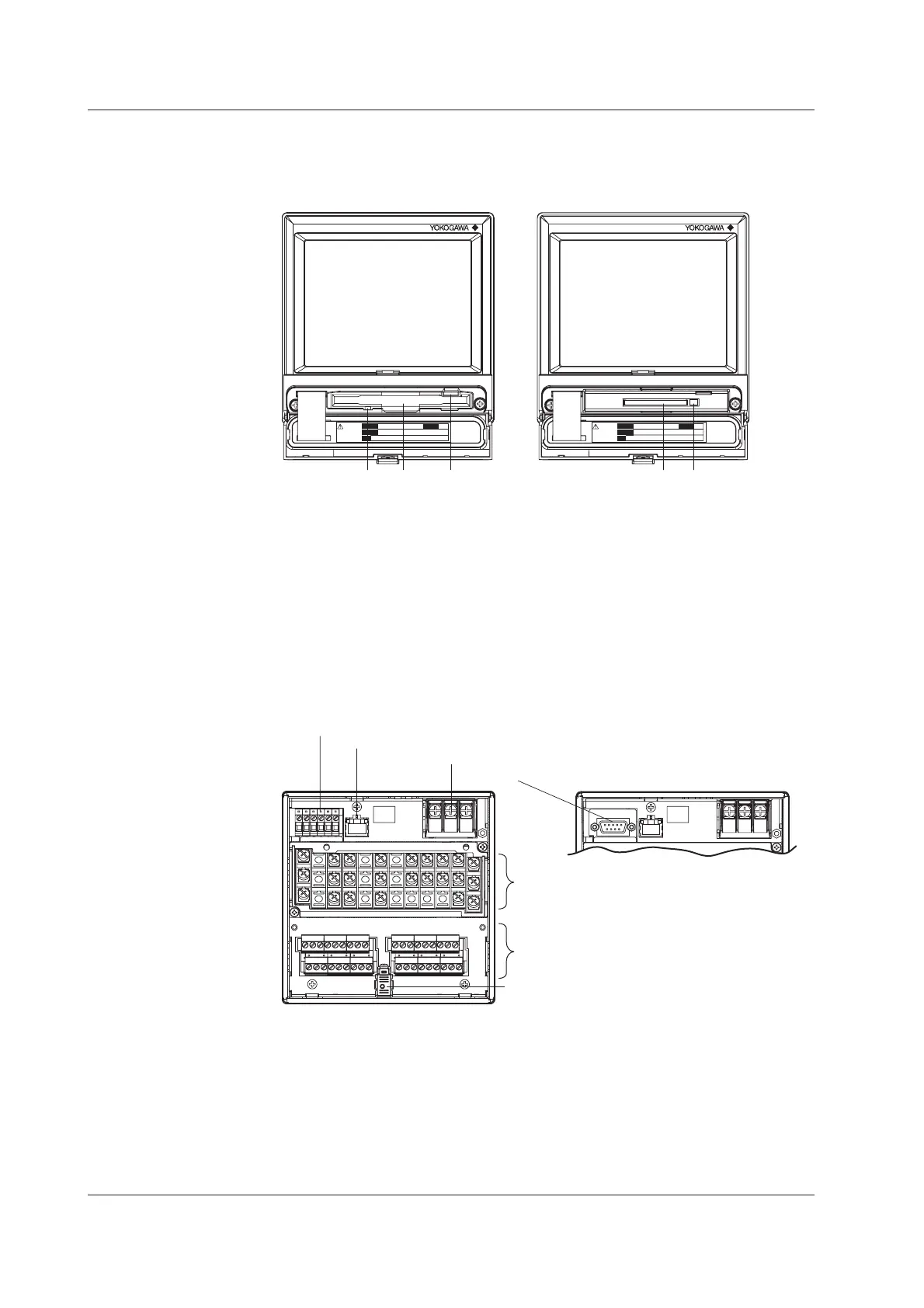

Floppy Disk Drive/Compact Flash Card Slot
The floppy disk drive or compact flash memory card slot is visible when you open the key
panel. However, no drive or slot is present on models with no external storage medium
specified.
STYLE
MODEL
SUFFIX
NO.
Do not remove
the cover.
Repair by trained
personal only.
STYLE
MODEL
SUFFIX
NO.
Do not remove
the cover.
Repair by trained
personal only.
1 23 21
1. Floppy Disk Drive/Compact Flash Memory Card Slot
Depending on the specification you made at the time of purchase, either a floppy disk
drive or an CF memory card slot is installed.
2. Eject button
Used when ejecting the external storage medium.
3. Floppy disk access lamp
Illuminates when data is being written or read.
Rear Panel
The terminal blocks and connectors that are installed in the rear panel varies depending
on the specification you made at the time of purchase.
RS-422A/485 serial interface port (only when specified)
10BASE-T Ethernet port (only when specified)
RS-232 serial interface port (only when specified)
Power terminals / Protective ground terminal
Option terminal block
Measurement input terminal blocks
Circuits for reference junction compensation are
built in. Do not remove the cover.
For a description on how to connect the input/output signal wires and power supply cables,
see chapter 2, “ Installation and Wiring .”
For a description on how to use the communication ports, see the “FX100 Communication
Interface User’s Manual ” (IM 04L20A01-17E).
3.1 Names of Parts and Functions
