1. Overview
1-5
TI 30A10A30-01E
Sep. 19, 2014-00
1.1.3 HowtouseUnmanagedSwitch
In order to simplify the drawings, BUS1 and BUS2 are drawn in a single line.
Concept
An Unmanaged Switch is not equipped with either configuration function or self-diagnostic
function so that it can be placed only on the edge of the Vnet/IP network.
Edge
Vnet/IP network
Edge
HIS/ENG/SENG
FCS/SCS
F010104.ai

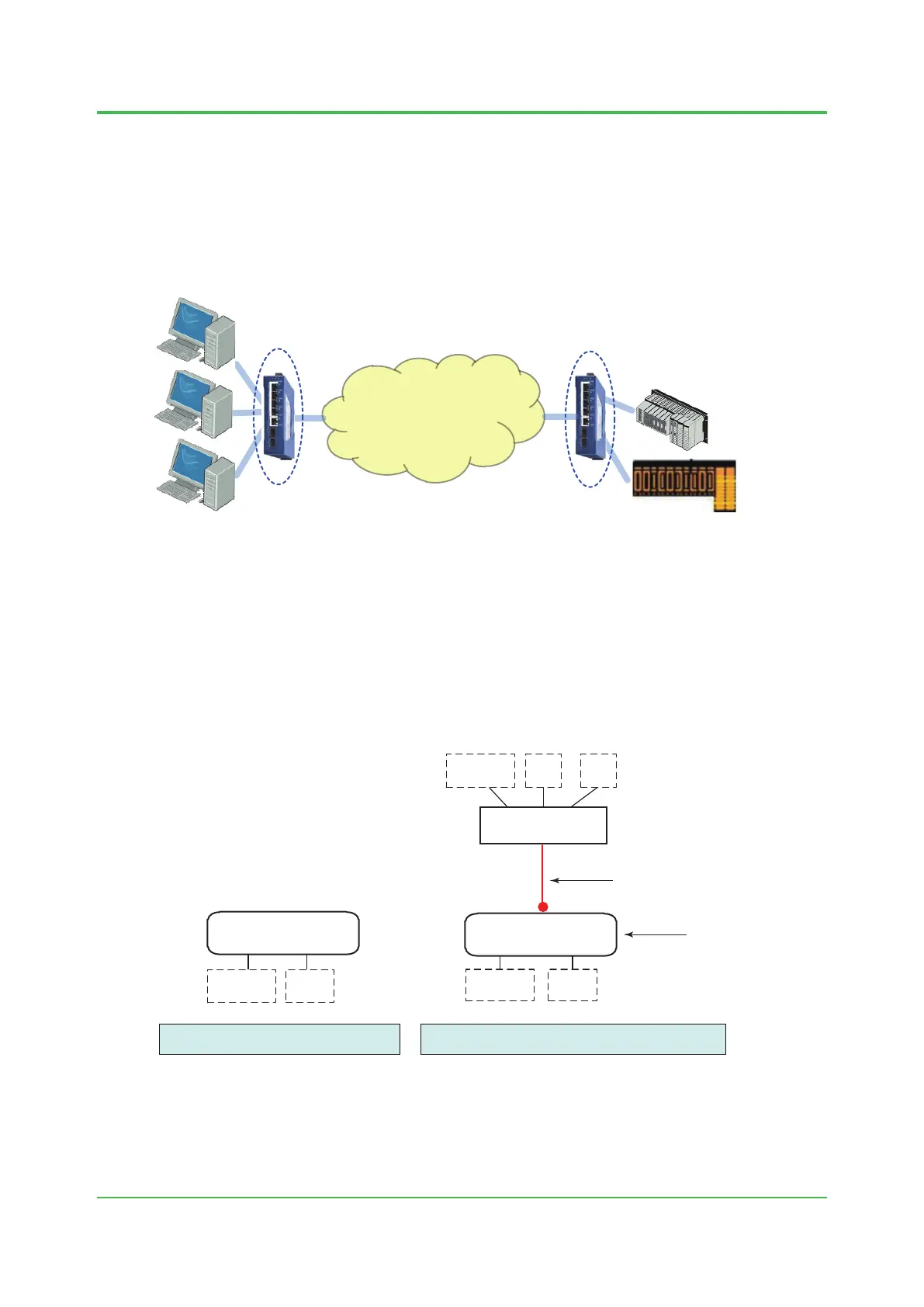

Figure Vnet/IP network architecture
The edge of the Vnet/IP network is a point to connect Vnet/IP stations and a Vnet/IP network.
When an Unmanaged Switch place on the edge of a network fails, the failed part of the network
can be inferred by using Network Status Display Dialog Box in HIS.
Do not place an Unmanaged Switch on a point other than at an edge of a network because
analysis of network failure cannot be performed.
Applicablenetworkstructure
A local connection or an Edge-point connection is applicable to Unmanaged Switches.
F010102.ai
HIS HIS
GR2SW
Unmanaged Switch
other switch (*1)
FCSFCSENG/HIS
GR2SW
Unmanaged Switch
Edge point
One connection to other switch
ENG/HIS
ENG/HIS
No switch is connected to GR2SW.
A switch of other kind is connected to GR2SW.
*1: Managed Switch or Unmanaged Switch
FigureApplicablenetworkstructure
