2.HardwareSpecications
2-14
TI 30A10A30-01E

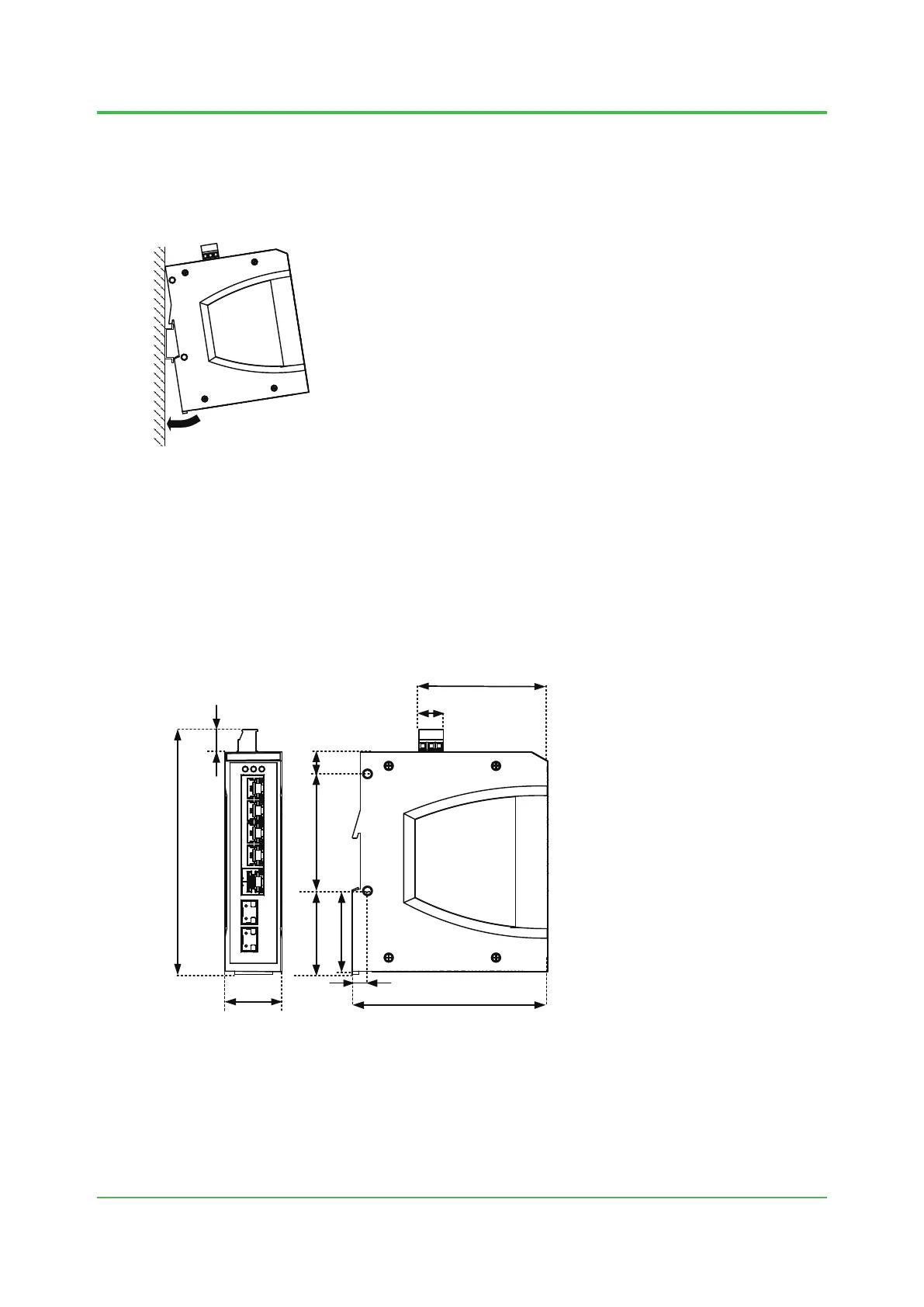

2.4.2 Mounting
SPIDER II Family device of the Recommended Switch is designed for mounting onto a 35 mm
DIN rail, as shown below.
Attach the the device’s upper snap-in guide into the DIN rail and press it down against the DIN
rail until it snaps into place.
F020403.ai
Figure MountingontheDINrail(SPIDERIIFamily)
To take the SPIDER II family device off the DIN rail, insert a screwdriver horizontally under the
housing into the locking slide, pull it (without tipping the screw driver) downwards and lift the
device upwards.
2.4.3 ExternalDimensions
F020404.ai
9 .5
13 .8
73 .252 .3
50 .5
(14 )
(15 )
(
80
)
154
unit: mm
121
35
FigureExternalDimensions(SPIDERIIFamily)
Dec. 26, 2016-00
