2.HardwareSpecications
2-12
TI 30A10A30-01E
2.4 SPIDERIIFamily(UnmanagedSwitch)
7ports,DINrailmountingmodel
GR2SW-699FA (Vendor model name: SPIDER II Giga 5T/2S EEC): L2SW, DC x 1
2.4.1 NameofEachPartandDescriptions
F020401.ai
Power input and ground
Device status LED
Port1
Port5
Port6
Port7
RJ-45 port
SFP port
SFP port status LEDs
RJ-45 port status LEDs
(Port6) (Port7)

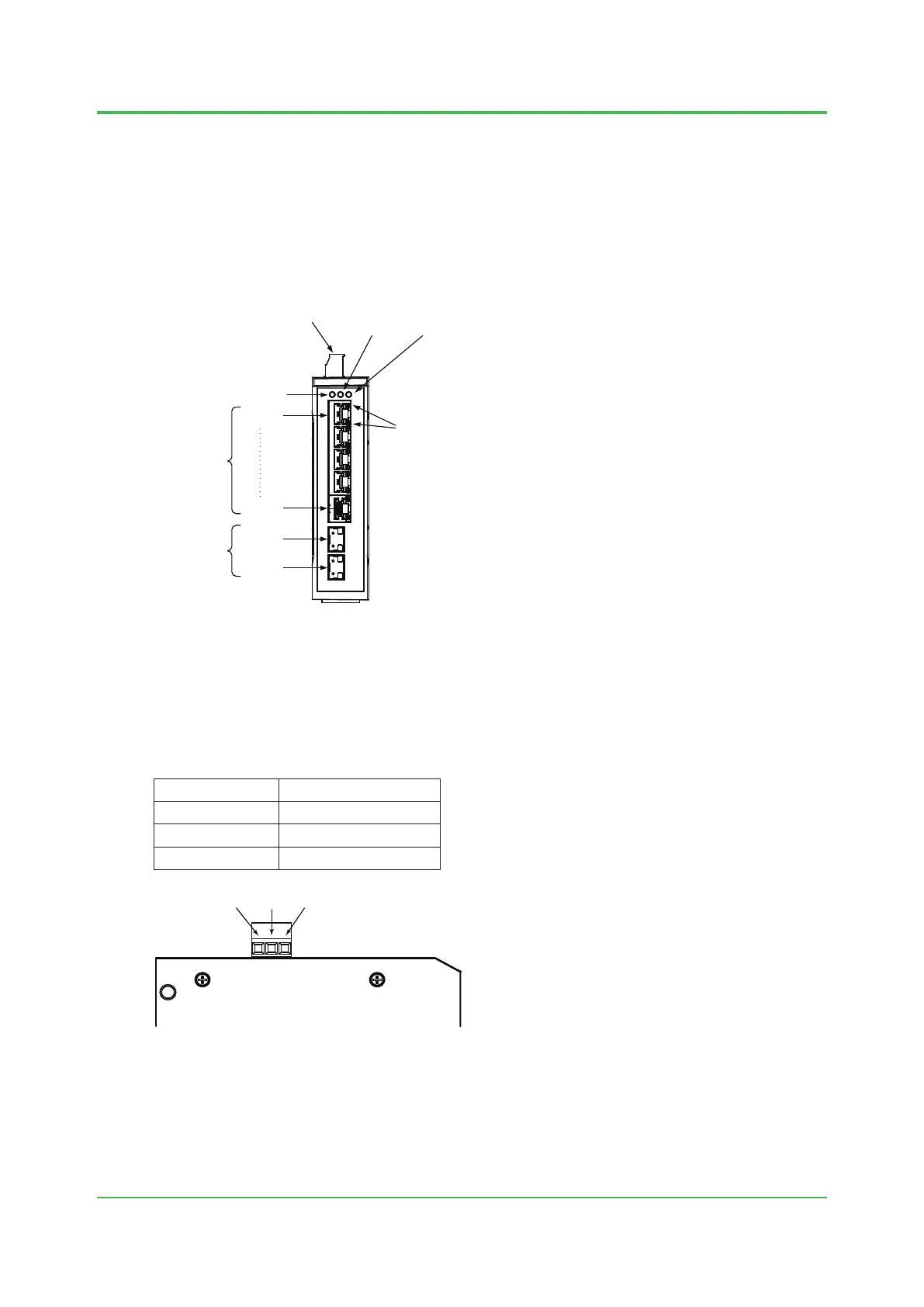

Figure NameofEachPart(SPIDERIIFamily)
Powerinputandground
A 3-pin plug-in terminal block is installed to this connecter.
The list of the terminal pin functions is shown below.
Table TerminalPinFunction(SPIDERIIFamily)
Pin Function
1 DC power input(+)
2 DC power input(-)
3 Ground connection
F020402.ai
1 pin 2 pin
3 pin
Figure TerminalPinforPowerinputandground
Note: The device is grounded by the 3-pin terminal block.
Ensure to connect 24 V DC power cable with the correct polarity.
For more information about wiring to the terminal block, see section 2.5.2.
