2.HardwareSpecications
2-11
TI 30A10A30-01E
2.3.2 Mounting
MAR1040 family device of the Recommended Switch is designed for mounting on a 19-inch rack
cabinet.
Measure the 19-inch rack’s depth to let a main cable and any power supply cables to fit from the
back, and the data cables from the front. Install the sliding/mounting rails in the 19-inch switch
cabinet as instructed by the manufacturer, and make sure the device is resting on both rails to
protect the device from vibrating.
MAR1040 family device of the Recommended Switch is designed without a fan; however, it
requires sufficient ventilation. Provide a fan for the 19-inch rack, if necessary.
In order to prevent wrong network cable connections to the operating system, the cabinet must
be protected by a security lock key.

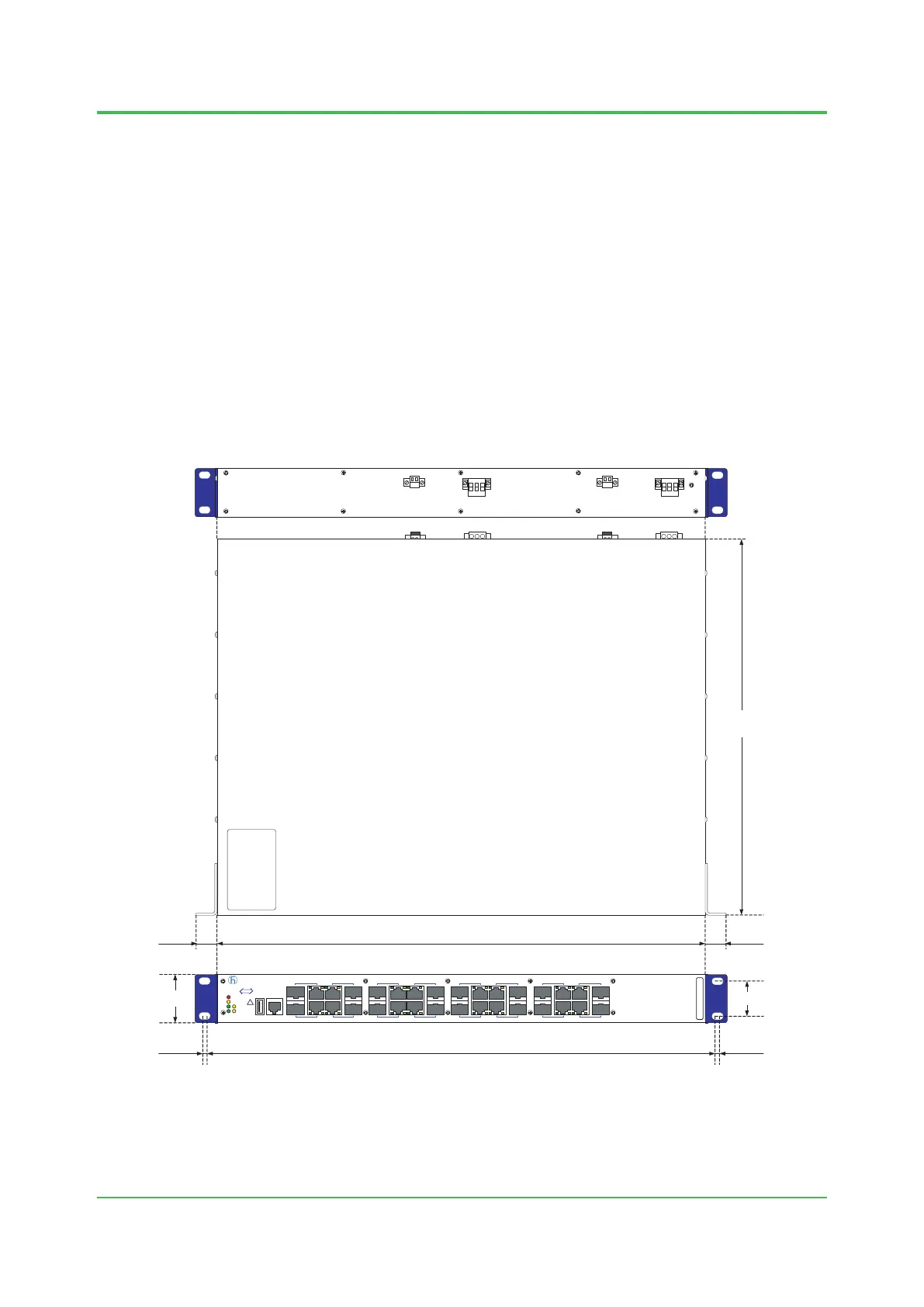

2.3.3 ExternalDimensions
F020302.ai
HIRSCHMANN
MAR1040
V.24USB
1 3
2 4
5 7
6 8
9 11
10 12
13 15
14 16
YOKOGAWA
V net/IP
!
FAULT
RM
Sb
P
R1
R2
19.3 444.0 19.3
3.3 462.6 3.3
31.75
342.0
43.9
Unit: mm
Figure ExternalDimensions(MAR1040Family)
Dec. 26, 2016-00
