  2.HardwareSpecications
2-4
TI 30A10A30-01E
2.2 MACH104 Family
 24ports,19-inchrackmountingmodel
GRVSW-663FA (Vender model name: MACH104-20TX-F): L2SW, AC x 1
GRVSW-664FA (Vender model name: MACH104-20TX-FR): L2SW, AC x 2

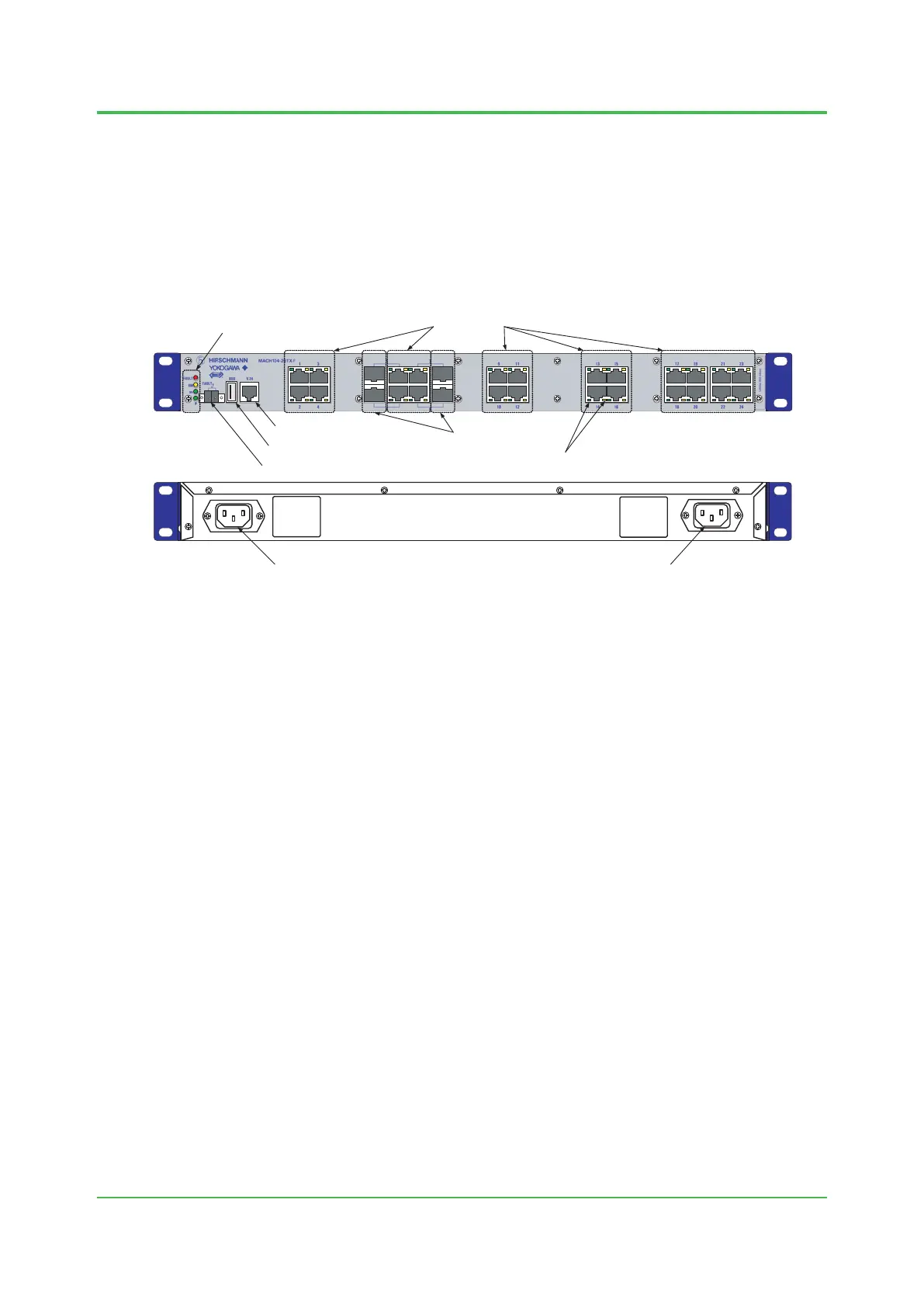

2.2.1 NameofEachPartandDescriptions
F020201.ai
V.24 interface
USB interface
FAULT output
Device status LEDs
SFP Port
RJ-45 Port
Port status LEDs
Power input (P1) Power input (P2)
Figure NameofEachPart(MACH104Family)
 Powerinput(Inletsocket)
For AC power line input, MACH104 family of the Recommended Switch has one or two inlet
sockets conforming to EN60320 C14 standard. The redundant power unit model GRVSW-664FA
(Vender model name: MACH104-20TX-FR) has two inlet sockets for P1 and P2 AC power input.
An AC power cable is not included in the MACH104 family.
Please prepare AC power cable allowed to be used in the local region.
(The AC inlet socket fits to the connector conforming to IEC60320 C13 standard.)
For a redundant power unit model, use both P1 and P2 power inputs unless otherwise a power
fail alarm will be detected on this device.
 FAULToutput
FAULT output has two contact pins.
The FAULT output pins become open when the device detects status error. The device status
error is triggered by power failure on the default configuration. For more information about wiring
to the terminal block, see section 2.4.2.
Sep. 19, 2014-00
