4.CongurationSetup
4-15
TI 30A10A30-01E
Settingupadditionaldomain
To add a domain in a cascaded Vnet/IP domain network, enable the L3SW port for additional
domain connection.
The following diagram shows an example of Vnet/IP network where Domain 2 is added.

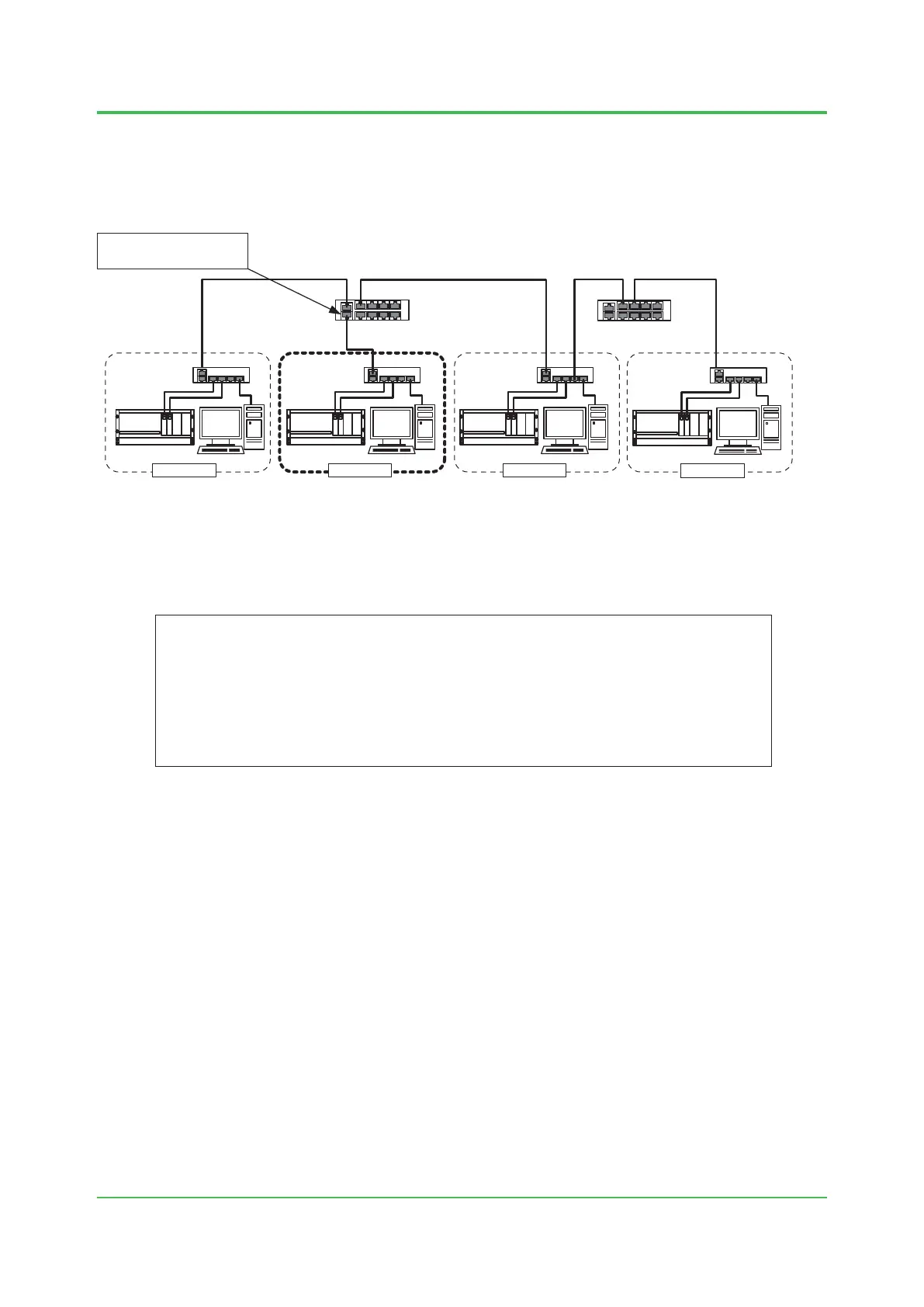

F040302.ai
L2SW L2SW L2SW L2SW
L3SW-1 L3SW-2
Domain 1
Port 1
Port 3
Port 3 Port 5
192.168.1.253 192.168.3.253 192.168.3.252 192.168.5.253
Domain 5
Domain 3Domain 2
192.168.2.253
Port 2
Additional Domain
Enable port 2 for
additional Domain.
Figure Exampleofanetworkwithaddeddomain2(BUS1sideonly)
To reactivate the disabled L3SW port, use “no shutdown” command. (See section 4.3.6.)
The following example shows the command to activate the port 2 of the L3SW-1.
F040315.ai
(Hirschmann MACH) >enable
(Hirschmann MACH) #configure
(Hirschmann MACH) (Config)#interface 1/2
(Hirschmann MACH) (Interface 1/2)#no shutdown
(Hirschmann MACH) (Interface 1/2)#exit
(Hirschmann MACH) (Config)#exit
(Hirschmann MACH) #
Figure Exampleofaconfigurationtoenableaport
To confirm the modification, use “show port all” command. (See section 4.3.3.)
Use “copy system:running-config nvram:startup-config” command to save the configuration to
the non-volatile memory as startup-config file. (See section 4.3.5.)
