YOKOGAWA YTA610 User Manual

<2. Notes on Handling>
2-5
IM 01C50G01-01EN
• Type of protection and marking code:
II 3 G Ex ic IIC T4 Gc
• Ambient Temperature: –30 to 70°C
• Enclosure: IP66/IP67
• Overvoltage category: I
• Electrical parameters:
Supply/Output circuit: Terminals: +, -
FISCO eld device or
Ui=32V, Ci=2.2nF, Li=0mH
Sensor circuit: Terminals: 1,2,3,4,5
Uo=6V, Io=90mA, Po=135mW, Co=10μF,
Lo=3.9mH
• Dielectric strength: 500 V a.c.r.m.s.,1 min
(See specic conditions of use)
WARNING
Specication conditions of use
• Electrostatic charges on the non-metallic
parts (excluding glass parts) or coated parts
of the Temperature Transmitter shall be
avoided.
• When the enclosure of the Temperature
Transmitter is made of aluminum alloy, if
it is mounted in an area where the use of
Category 1G equipment is required, it must
be installed such that, even in the event
of rare incidents, an ignition source due to
impact and/or friction sparks is excluded.
• The dielectric strength of 500V r.m.s
between the intrinsically safe circuit and the
enclosure of the Temperature Transmitter
is limited, only by the removable surge
absorber F9220AR.

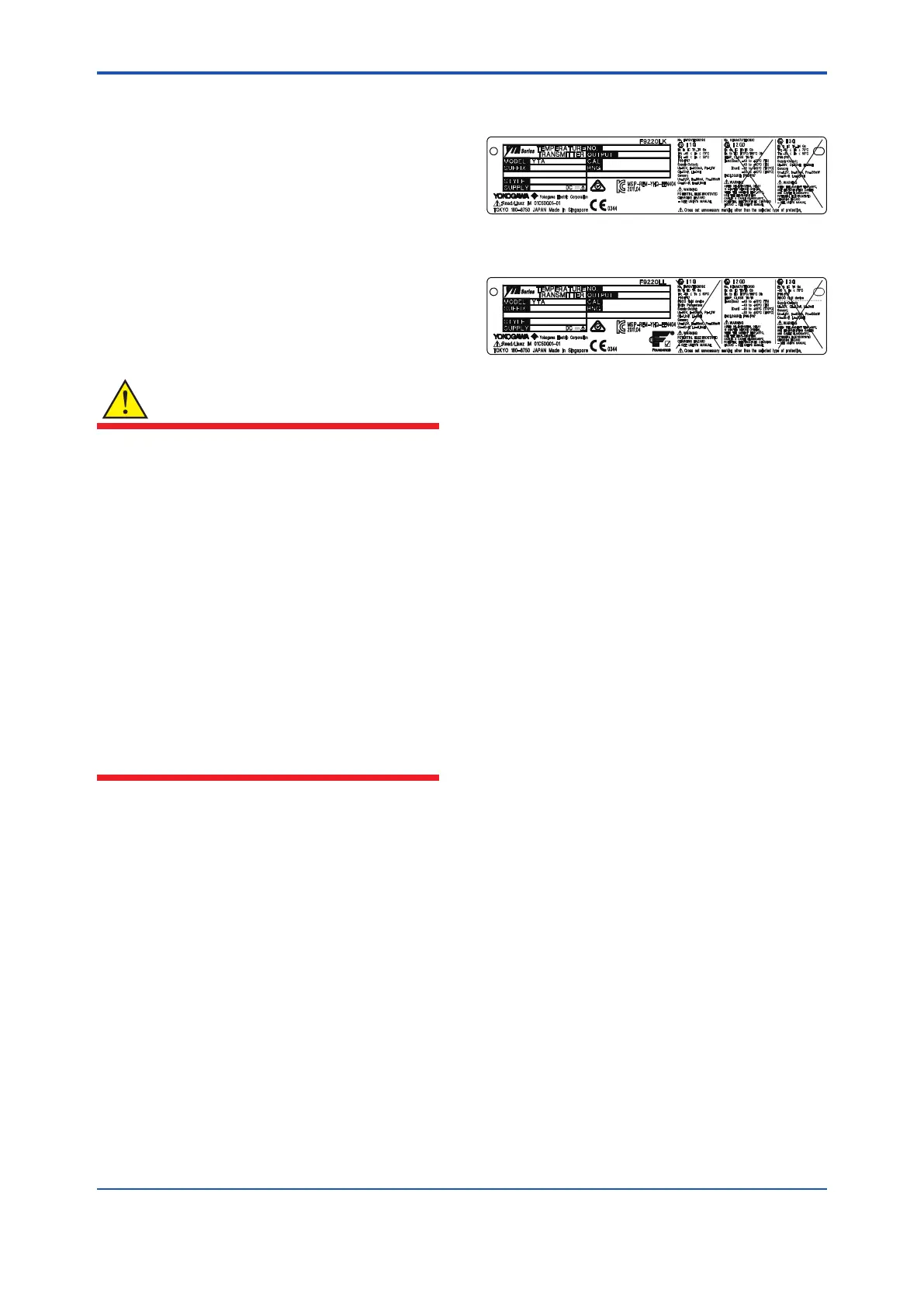

Note 2. Note for multiple types of protection
(KU2 and KU25)
• For the installation of this transmitter, once a
particular type of protection is selected, any
other type of protection cannot be used. The
installation must be in accordance with the
description about the type of protection in this
instruction manual. Cross out the unnecessary
type of protection on the name plate in the
following ways.
F0203.ai
e.g. In case of selecting “ia” and crossing out “db”
and “tb” and “ic”
e.g. In case of selecting “db” and “tb” and crossing
out “ia” and “ic”
Note 3. Installation
Installation should be in accordance with
Control Drawing IIE029-A63.
b)ATEXFlameproofTypeandDustIgnition
Proof Type
Caution for ATEX Flameproof Type and Dust
Ignition Proof Type
Note 1. Certicate information
• YTA710 with /KF2, YTA610 and YTA710 with
/KU2 and /KU25 temperature transmitters are
applicable for use in hazardous locations.
• No. KEMA 07ATEX0130
• Applicable Standard:
EN 60079-0:2012+A11:2013,
EN 60079-1:2014, EN 60079-31:2014
• Type of Protection and Marking Code:
II 2 G Ex db IIC T6/T5 Gb,
II 2 D Ex tb IIIC T70°C / T90°C Db
• Ambient Temperature for Gas Atmospheres:
–40 to 75°C (T6), –40 to 80°C (T5)
• Ambient Temperature for Dust Atmospheres:
–30 to 65°C (T70°C), –30 to 80°C (T90°C)
• Degree of protection of enclosure: IP66/IP67
• Supply Voltage : 42 V dc max. (4 to 20 mA type)
: 32 V dc max. (Fieldbus type)
• Output Signal : 4 to 20 mA
: 24 mA dc max. (Fieldbus type)
Note 2. Installation
• Cable glands, adapters and/or blanking
elements with a suitable IP rating shall be of Ex
d IIC/Ex tb IIIC certied by ATEX and shall be
installed so as to maintain the specic degree of
protection (IP Code) of the equipment.
• All wiring shall comply with local installation
requirement.
