<2. Notes on Handling>
2-7
IM 01C50G01-01EN

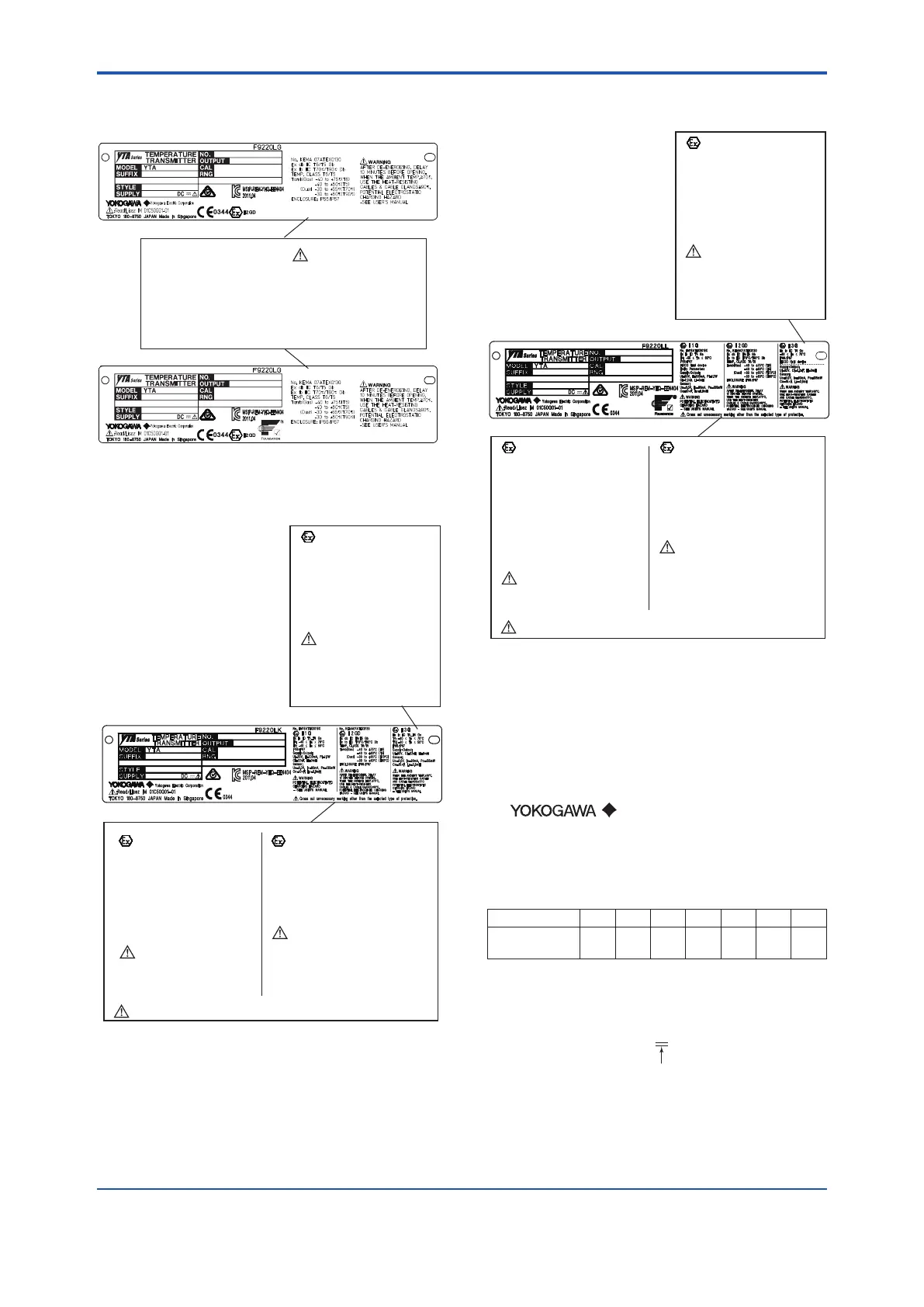

(6) Name Plate
YTA710 /KF2 Flameproof and Dust ignition proof type
F0205.ai
WARNING
AFTER DE-ENERGIZING, DELAY
10 MINUTES BEFORE OPENING.
WHEN THE AMBIENT TEMP.≥70°C,
USE THE HEAT-RESISTING
CABLES & CABLE GLANDS≥90°C.
POTENTIAL ELECTROSTATIC
CHARGING HAZARD
-SEE USER’ S MANUAL
No. KEMA 07ATEX0130
Ex db IIC T6/T5 Gb
Ex tb IIIC T70°C/T90°C Db
TEMP. CLASS T6/T5
Tamb (Gas) -40 to +75°C(T6)
-40 to +80°C(T5)
(Dust) -30 to +65°C(T70°C)
-30 to +80°C(T90°C)
ENCLOSURE: IP66/IP67
Intrinsically safe approval and Flameproof and Dust
ignition approval (4 - 20 mA type)
II 2 GD
II 3 G
II 1 G
Cross out unnecessary marking other than the selected type of protection.
F0206.ai
No. KEMA 07ATEX0130
Ex db IIC T6/T5 Gb
Ex tb IIIC T70°C/T90°C Db
TEMP. CLASS T6/T5
Tamb (Gas) -40 to +75°C(T6)
-40 to +80°C(T5)
(Dust) -30 to +65°C(T70°C)
-30 to +80°C(T90°C)
ENCLOSURE: IP66/IP67
WARNING
AFTER DE-ENERGIZING, DELAY
10 MINUTES BEFORE OPENING.
WHEN THE AMBIENT TEMP.≥70°C,
USE THE HEAT-RESISTING
CABLES & CABLE GLANDS≥90°C.
POTENTIAL ELECTROSTATIC CHARGING
HAZARD -SEE USER′S MANUAL
No. FM16ATEX0019X
Ex ia IIC T5…T4 Ga
T4: -40 ≤ Ta ≤ 70°C
T5: -40 ≤ Ta ≤ 50°C
IP66/IP67
Supply/Output:
Ui=30V, Ii=200mA, Pi=1.0W
Ci=22nF, Li=0mH
Sensor:
Uo=6.0V, Io=90mA, Po=135mW
Co=10µF, Lo=3.9mH
WARNING
POTENTIAL ELECTROSTATIC
CHARGING HAZARD
-SEE USER′S MANUAL
Ex ic IIC T5…T4 Gc
T4: -30 ≤ Ta ≤ 70°C
T5: -30 ≤ Ta ≤ 50°C
IP66/IP67
Supply/Output:
Ui=30V, Ci=22nF, Li=0mH
Sensor:
Uo=6.0V, Io=90mA, Po=135mW
Co=10µF, Lo=3.9mH
WARNING
WHEN THE AMBIENT TEMP.≥68°C,
USE HEAT-RESISTING CABLES
AND CABLE GLANDS≥75°C.
POTENTIAL ELECTROSTATIC
CHARGING HAZARD
-SEE USER′S MANUAL
Intrinsically safe approval and Flameproof and Dust
ignition approval (Fieldbus type)
II 2 GDII 1 G
No. FM16ATEX0019X
Ex ia IIC T4 Ga
T4: -55 ≤ Ta ≤ 60°C
IP66/IP67
FISCO field device
Entity Parameters
Supply/Output:
Ui=30V, Ii=300mA, Pi=1.2W
Ci=2.2nF, Li=0mH
Sensor:
Uo=6.0V, Io=90mA, Po=135mW
Co=10µF, Lo=3.9mH
WARNING
POTENTIAL ELECTROSTATIC
CHARGING HAZARD
-SEE USER′S MANUAL
II 3 G
Cross out unnecessary marking other than the selected type of protection.
F0207.ai
No. KEMA 07ATEX0130
Ex db IIC T6/T5 Gb
Ex tb IIIC T70°C/T90°C Db
TEMP. CLASS T6/T5
Tamb (Gas) -40 to +75°C(T6)
-40 to +80°C(T5)
(Dust) -30 to +65°C(T70°C)
-30 to +80°C(T90°C)
ENCLOSURE: IP66/IP67
WARNING
AFTER DE-ENERGIZING, DELAY
10 MINUTES BEFORE OPENING.
WHEN THE AMBIENT TEMP.≥70°C,
USE THE HEAT-RESISTING
CABLES & CABLE GLANDS≥90°C.
POTENTIAL ELECTROSTATIC CHARGING
HAZARD -SEE USER′S MANUAL
Ex ic IIC T4 Gc
-30 ≤ Ta ≤ 70°C
IP66/IP67
FISCO field device
- - - - - - - - - - - - - - - - - - - - - - - - - -
Supply/Output:
Ui=32V, Ci=2.2nF, Li=0mH
Sensor:
Uo=6.0V, Io=90mA, Po=135mW
Co=10µF, Lo=3.9mH
WARNING
WHEN THE AMBIENT TEMP.≥68°C,
USE HEAT-RESISTING CABLES
AND CABLE GLANDS≥75°C.
POTENTIAL ELECTROSTATIC
CHARGING HAZARD
-SEE USER′S MANUAL
MODEL: Specied model code.
SUFFIX: Specied sufx code.
STYLE: Style code.
SUPPLY: Supply voltage.
NO.: Serial number and year of production
*1
.
OUTPUT: Output signal.
FACTORY CAL: Specied calibration range.
TOKYO 180-8750 JAPAN:
The manufacturer name and the address
*2
.
*1: The third gure from the left shows the production
year.
The relationship between the production year and the
third gure is shown below.
The third gure S T U V W X Y
The year of
Production
2016 2017 2018 2019 2020 2021 2022
For example, the production year of the product
engraved in “NO.” column on the name plate as
follows is 2016.
The year 2016
C2S616294
*2: “180-8750” is a postal code which represents the
following address.
2-9-32 Nakacho, Musashino-shi, Tokyo Japan
*3: The identication number of Notied Body.
