YOKOGAWA YTA610 User Manual

<2. Notes on Handling>
2-13
IM 01C50G01-01EN
Note 2. Wiring
• All wiring shall comply with Canadian Electrical
Code Part I and Local Electrical Codes.
• In hazardous location, wiring shall be in conduit
as shown in the gure.
WARNING: A SEAL SHALL BE INSTALLED
WITHIN 50 cm OF THE
ENCLOSURE. UN SCELLEMENT
DOIT ÊTRE INSTALLÉ À MOINS
DE 50 cm DU BOÎTIER.
• When installed in Division 2, “FACTORY
SEALED, CONDUIT SEAL NOT REQUIRED”.
Note 3. Operation
• Keep strictly the “WARNING” on the label
attached on the transmitter.
WARNING: OPEN CIRCUIT BEFORE
REMOVING COVER. AFTER DE-
ENERGIZING, DELAY 2 MINUTES
BEFORE OPENING. OUVRIR LE
CIRCUIT AVANT D’ENLEVER LE
COUVERCLE. APRÈS POWER-
OFF, ATTENDRE 2 MINUTES
AVANT D’OUVRIR.
• Take care not to generate mechanical spark
when access to the instrument and peripheral
devices in hazardous location.
Note 4. Maintenance and Repair
• The instrument modication or parts
replacement by other than authorized
representative of Yokogawa Electric
Corporation is prohibited and will void Canadian
Standards Explosionproof Certication.
Note 3. Installation
Installation should be in accordance with
Control Drawing IIE029-A62.
b) CSA Explosionproof Type
Caution for CSA Explosionproof type
Note 1. Certication information
• YTA710 with /CF1, YTA610 and YTA710 with
/CU1 and /CU15 temperature transmitters are
applicable for use in hazardous locations.
• Certicate 1089576
• Applicable Standard:
C22.2 No. 0-10, C22.2 No. 0.4-04,
C22.2 No. 25-M1966, C22.2 No. 30-M1986,
C22.2 No. 94-M1991, C22.2 No. 142-M1987,
C22.2 No. 157-92, C22.2 No. 213-M1987,
C22.2 No.61010-1-12,
C22.2 No. 61010-2-030-12
• Class I, Groups B, C and D;
• Class II, Groups E, F and G;
• Class III.
• Enclosure: TYPE 4X
• Temperature Class: T6
• Ambient Temperature: –40 to 60°C
• Supply Voltage: 42 V dc max. (4 to 20 mA type)
: 32 V dc max. (Fieldbus type)
• Output Signal: 4 to 20 mA
: 24 mA dc max. (Fieldbus type)

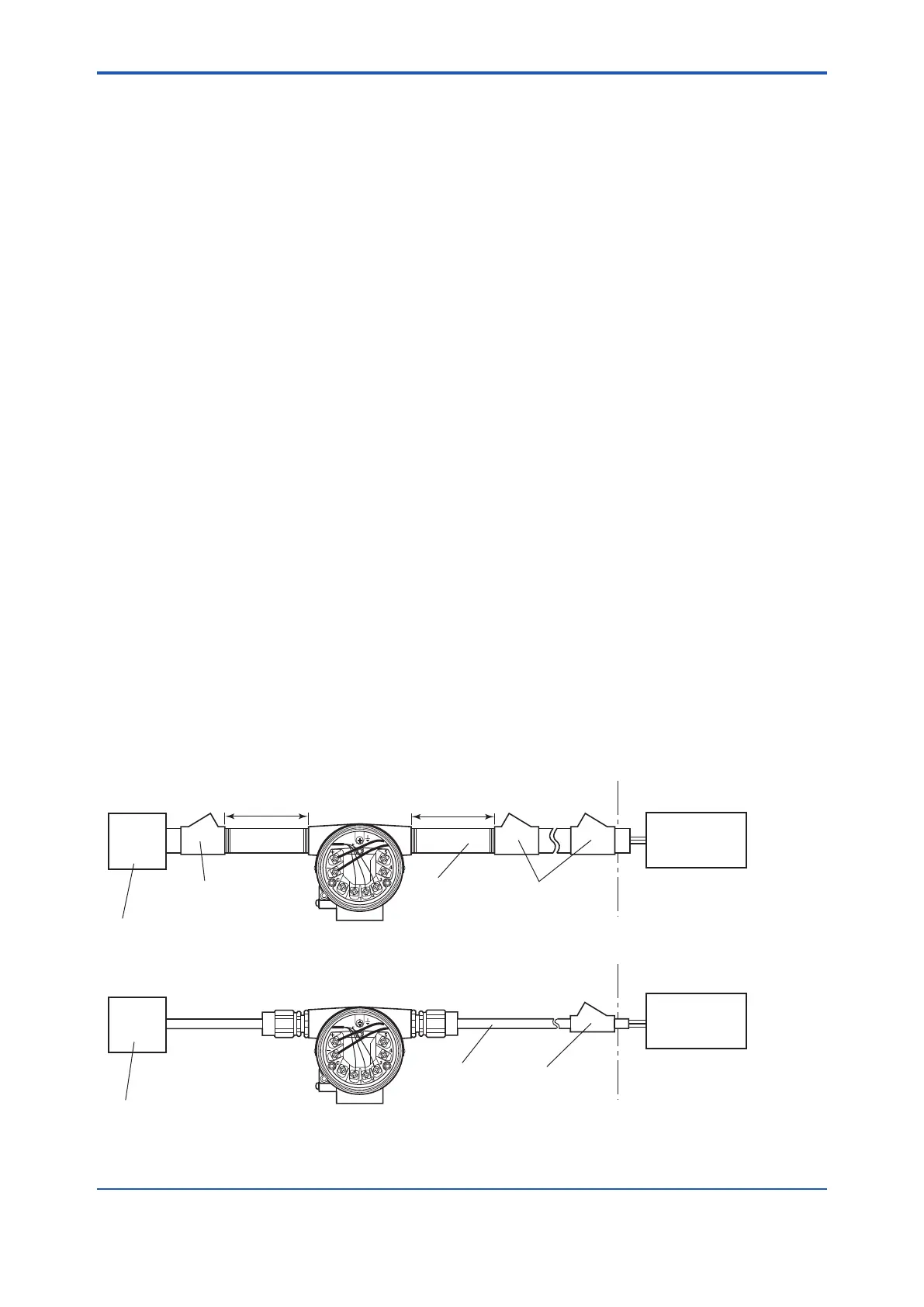

Sensor
Sensor
Non-hazardous
Location
Equipment
42 V DC Max.
4 to 20 mA DC
Signal
Non-hazardous LocationsHazardous Locations Division 1
50 cm Max.
Sealing Fitting
Conduit
Non-hazardous
Location
Equipment
42 V DC Max.
4 to 20 mA DC
Signal
Non-hazardous LocationsHazardous Locations Division 2
Sealing Fitting
Sealing Fitting
50 cm Max.
Certified/Listed Temperature Sensor
YTA610 and YTA710
YTA610 and YTA710
Conduit
F0208.ai
Certified/Listed Temperature Sensor
Note: Temperature sensor shall be certified in type of Hazardous Locations.
