Control Drawing for FM (US) intrinsically safe approval (4 - 20 mA type)
Yokogawa Electric Corporation
Model
YTAxxx
Title
Control Drawing
No.
IIE029-A61
Page
01
Revision
1
Date
2017-08-18

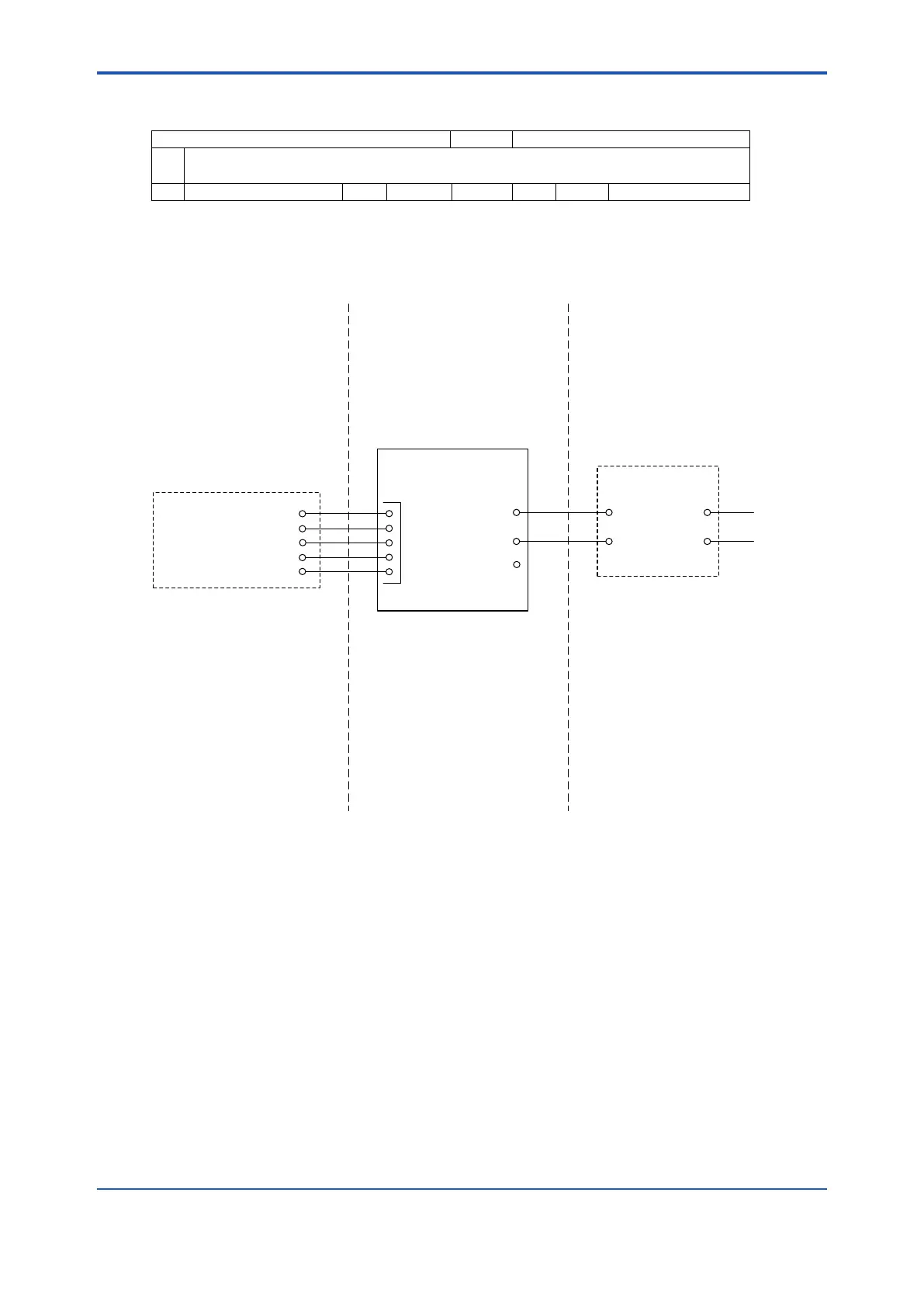

Control Drawing (US)
Intrinsically Safe Installation for YTAxxx – J or – D
Hazardous (Classified) Location
+
Temperature Transmitter
Unclassified Location
Associated Apparatus
−
+
−
Model YTAxxx – J or – D
Supply/Output:
Ui = 30 V
Ii = 200 mA
Pi = 1.0 W
Ci = 22 nF
Li = 0 mH
+
−
C
1
2
3
4
5
Sensor Input:
Uo = 6.0 V
Io = 90 mA
Po = 135 mW
Co = 10 μF
Lo = 3.9 mH
Class I, Division 1, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1
Class I, Zone 0, Group IIC
Temperature Class: T5...T4
Supply/OutputSensor Input
Intrinsically Safe Apparatus
or
Simple Apparatus
See Note 4
Hazardous (Classified) Location
Class I, Division 1, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1
Class I, Zone 0, Group IIC
See Note 4
Linear source
