RS5000 Imager

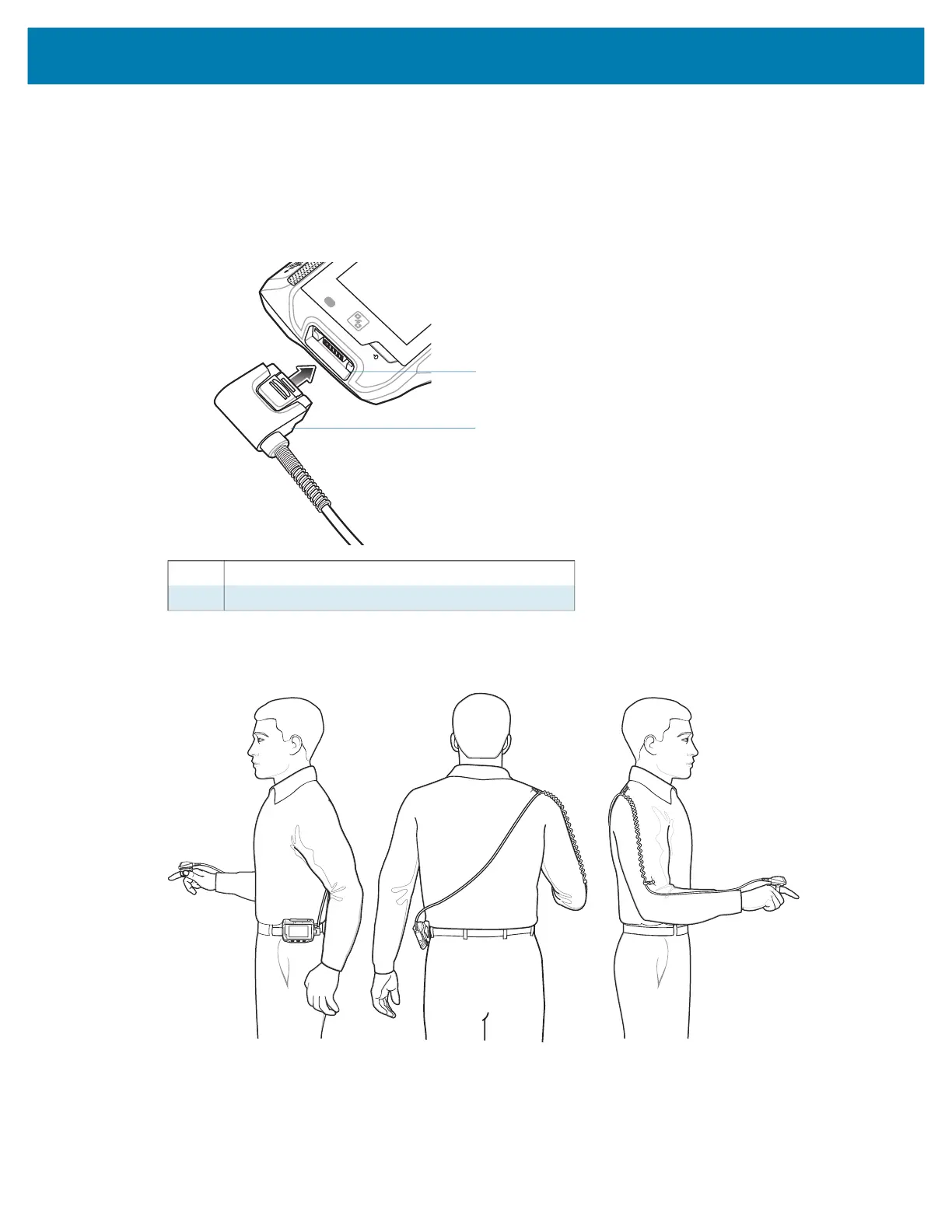

To connect the RS5000 imager to the wearable terminal:
1. If using the device wearable terminal, remove the connector cap.
2. Connect the RS5000 interface cable to the wearable terminal interface connector. If connecting to a
wrist mounted wearable terminal, connect to the interface connector closest to the wrist.
3. If using the extended cable configuration, route the scanner cable up to the shoulder and down to the
hand that the scanner mounts on. Attach two cable clips to clothing and secure cable to cable clip.
4. Rotate the trigger assembly to the correct position for the hand that the imager mounts to.
1 Interface connector
2 Scanner cable connector
1
2
