Zebra WT6300 - Bar Code Capture with RS6000 Hands-Free Imager

Data Capture
58

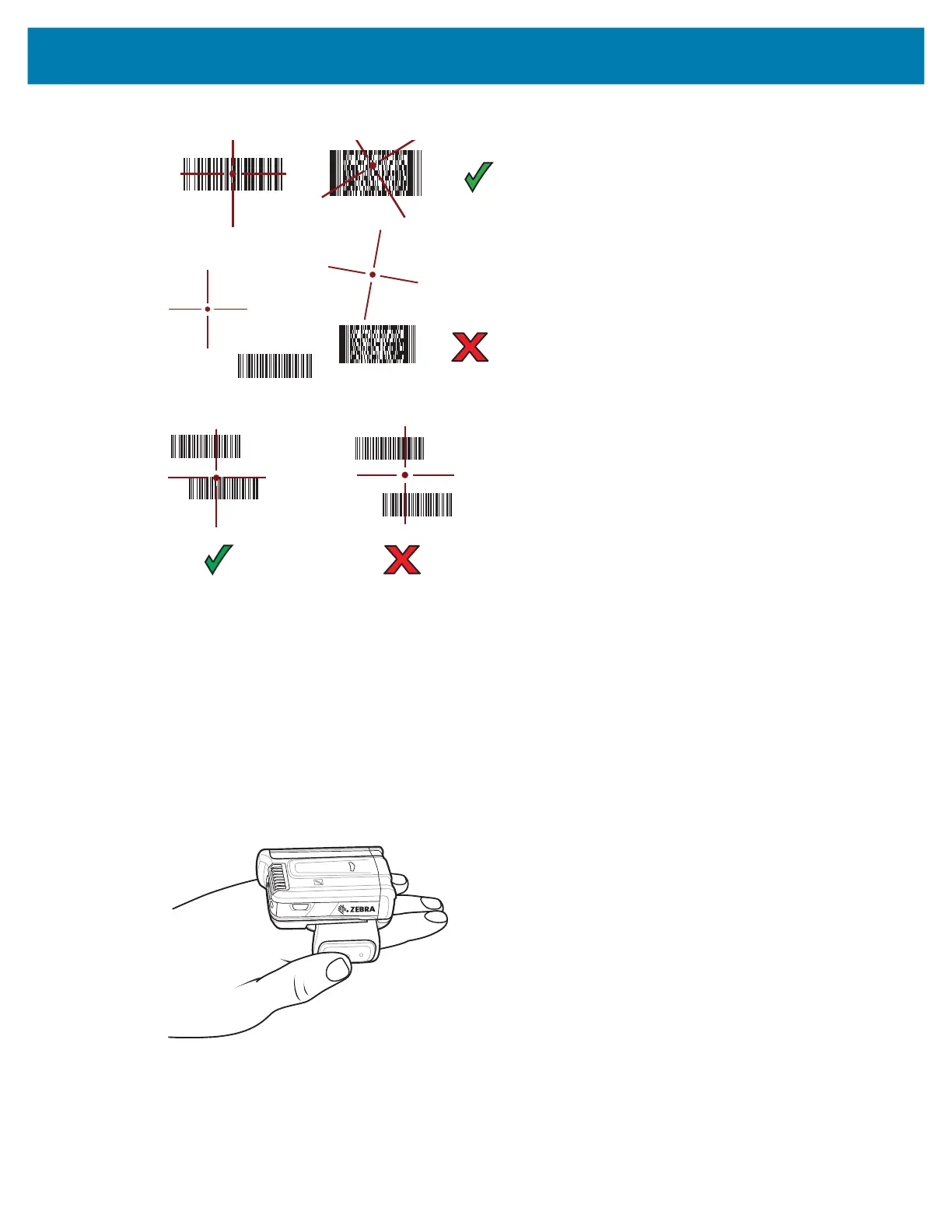

Figure 26 RS5100 Aiming Pattern
Figure 27 RS5100 Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
Bar Code Capture with RS6000 Hands-Free Imager
To read a bar code, a scan-enabled application is required. The device contains the DataWedge
application that allows the user to enable the scanner to decode bar code data and display the bar code
content. See DataWedge on page 65 for more information on launching DataWedge.
Pair the RS6000 with the device. See Pairing Using Simple Serial Interface on page 63 or Pairing Using
Bluetooth Human Interface Device on page 64 for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS6000 at a bar code.
