Data Capture
60
2.
Point the RS507/X at a bar code.
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed
by the cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting
conditions.
The RS507/X LEDs light green, a beep sounds to indicate the bar code was decoded successfully.
Note that when the RS507/X is in Pick List Mode, the RS507/X does not decode the bar code until the
center of the crosshair touches the bar code.

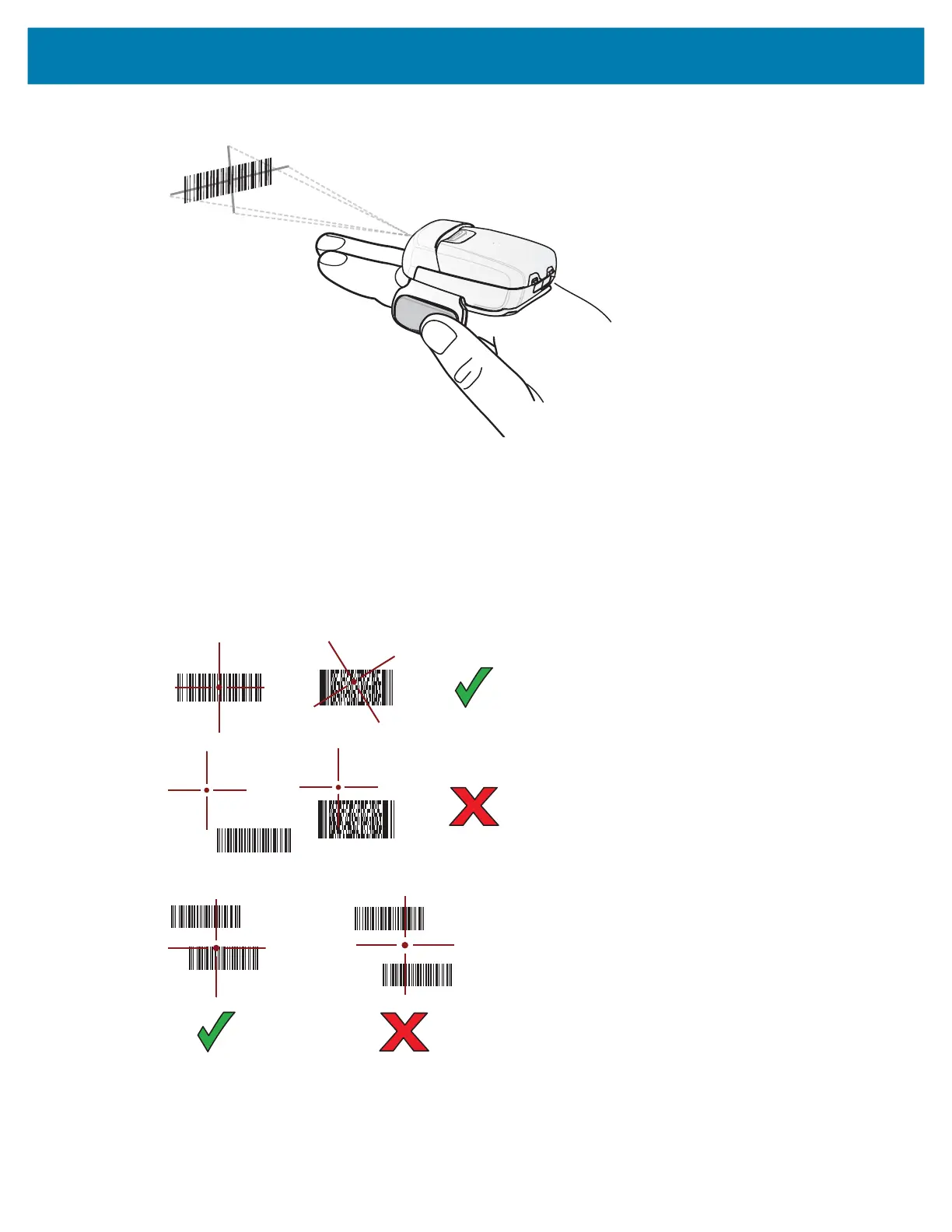

Figure 30 Aiming Pattern
Figure 31 Pick List Mode with Multiple Bar Codes in Aiming Pattern
4. The captured data appears in the text field.
