Zebra ZQ220 User Manual

23
ZQ220 User Guide
Operator Controls
The ZQ220 printer comes equipped with a three-button user
interface for menu navigation (see “Figure 6 • Control Panel” on
page 23). The printer also features an OLED display which stays
lit while the printer is powered on to indicate to the user that the
printer is on.
Standard User Controls
The standard controls have three (3) buttons that perform the
following user functions.
• The Power Button turns the printer on and off.
• The Media Feed Button advances a length of media which is
determined by the type of media being used. Label media will be
advanced to the next gap or bar sense marker. Journal (plain)
media will be advanced by a length determined by the printer’s
software. When in Conguration Screen mode, the Feed Button
may be used to select a function highlighted on the display.
• The Conguration Button allows the user to scroll between
functions on the display.

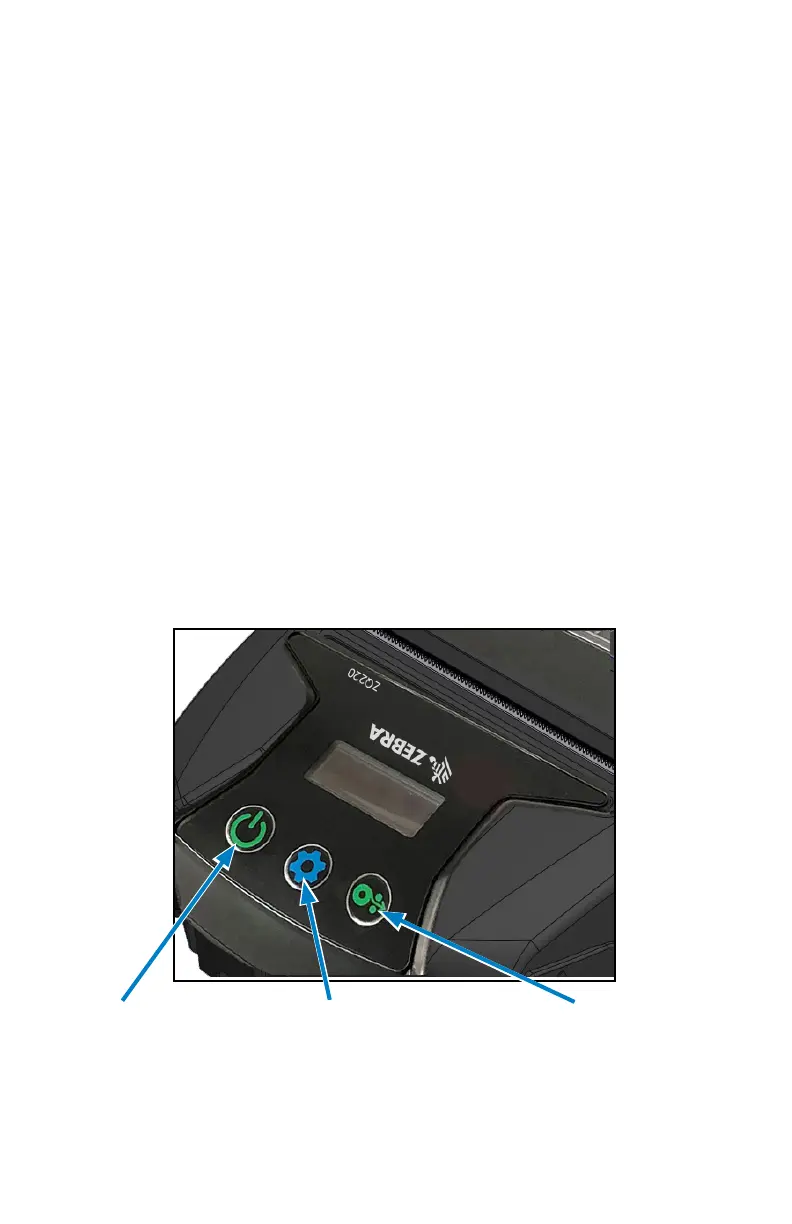

Figure 6 • Control Panel
Power Button
Press to turn unit on.
Printer boots up in
approx. 1 second.
Press for 5 seconds to
turn unit off.
Media Feed Button
Press to advance a blank
label or a software-determined
length of journal media.
Press to navigate while in
Conguration Screen mode.
Conguration Button
Press to alter printer
parameters, print a con-
guration report or dismiss
an acknowledged message.

Zebra ZQ220 Specifications

General

Color	No
Print technology	Direct thermal
Rotated printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Minimum print length	12.5 mm
Maximum printing width	80 mm
Internal memory	16 MB
Number of fonts	14
Built-in barcodes	2D, Code 39, Code 93, Code-39 Library, EAN128, EAN13, EAN8, UPC-A, UPC-E
Battery type	Built-in battery
Battery voltage	7.26 V
Number of batteries supported	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Core diameter	22.2 mm
Media thickness	0.058 - 0.1575 mm
Maximum label width	72 mm
Maximum roll diameter	50 mm
Bluetooth version	2.1+EDR
Connectivity technology	Wireless
Display	-
Product color	Black
Display diagonal	3 \
Quantity per pack	1 pc(s)
Languages support	ENG, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	58.8 mm
Width	114.5 mm
Height	129.5 mm
Weight	450 g
