ZQ220 User Guide
Label Design Examples
This section shows examples of labels with and without problems.

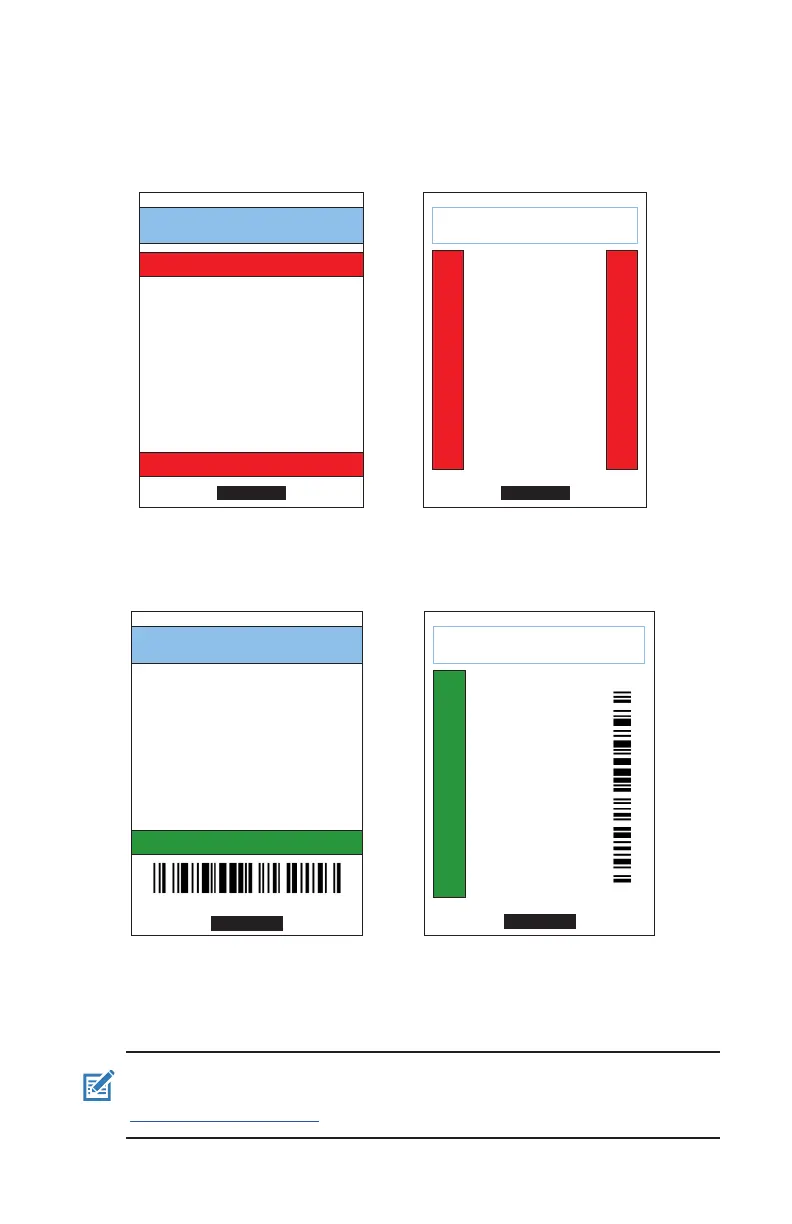

Figure 13 • Label Design Examples
ACME COLLEGE
PARKING
VIOLATION
PARKING
VIOLATION
ACME COLLEGE
PROBLEM LABEL DESIGN
The dark color, pre-printed text and graphics
are in the path of the black bar at the bottom
of the receipt.
GOOD LABEL DESIGN
The center path to the black bar is free of
dark color, pre-printed text and graphics.
ACME RECEIPT
Quality FIRST
ACME RECEIPT
1 2 3 4 5 6 7 8 9
Quality FIRST
1 2 3 4 5 6 7 8 9
PROBLEM LABEL DESIGN
The dark color, pre-printed text and graphics
are in the path of the black bar at the bottom
of the receipt.
GOOD LABEL DESIGN
The center path to the black bar is free of
dark color, pre-printed text and graphics.
Note • Complete information on using pre-printed receipt paper can be found
in the FORM command in the CPCL Programming Guide (P1073699-001) at
www.zebra.com/manuals.

Zebra ZQ220 Specifications

General

Color	No
Print technology	Direct thermal
Rotated printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Minimum print length	12.5 mm
Maximum printing width	80 mm
Internal memory	16 MB
Number of fonts	14
Built-in barcodes	2D, Code 39, Code 93, Code-39 Library, EAN128, EAN13, EAN8, UPC-A, UPC-E
Battery type	Built-in battery
Battery voltage	7.26 V
Number of batteries supported	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Core diameter	22.2 mm
Media thickness	0.058 - 0.1575 mm
Maximum label width	72 mm
Maximum roll diameter	50 mm
Bluetooth version	2.1+EDR
Connectivity technology	Wireless
Display	-
Product color	Black
Display diagonal	3 \
Quantity per pack	1 pc(s)
Languages support	ENG, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	58.8 mm
Width	114.5 mm
Height	129.5 mm
Weight	450 g
