ZQ220 User Guide
Setting Up the Software
The printer uses Zebra’s CPCL Programming language which was
designed for mobile printing applications. CPCL is fully described
in the CPCL Programming Guide (p/n P1073699-001) available
on-line at https://www.zebra.com/manuals. You can also use
ZebraDesigner Pro v2, Zebra’s Windows
®
based label creation
program which uses a graphical interface to create and edit labels
in either language. See “Appendix G” on page 62 for tips on
downloading the Designer Pro application from Zebra’s Web site.
Designing Labels
The following examples provide guidelines for designing labels
for the printers, specically for Gap Media, Black Bar Media
and Journal Media. The illustrations for each media type dene
recommended tolerances, keep-out zones and safe printing
zones designed to avoid any vertical registration issues during
printing. Dimensions are determined based on product registration
capabilities and Zebra-recommended media tolerances.

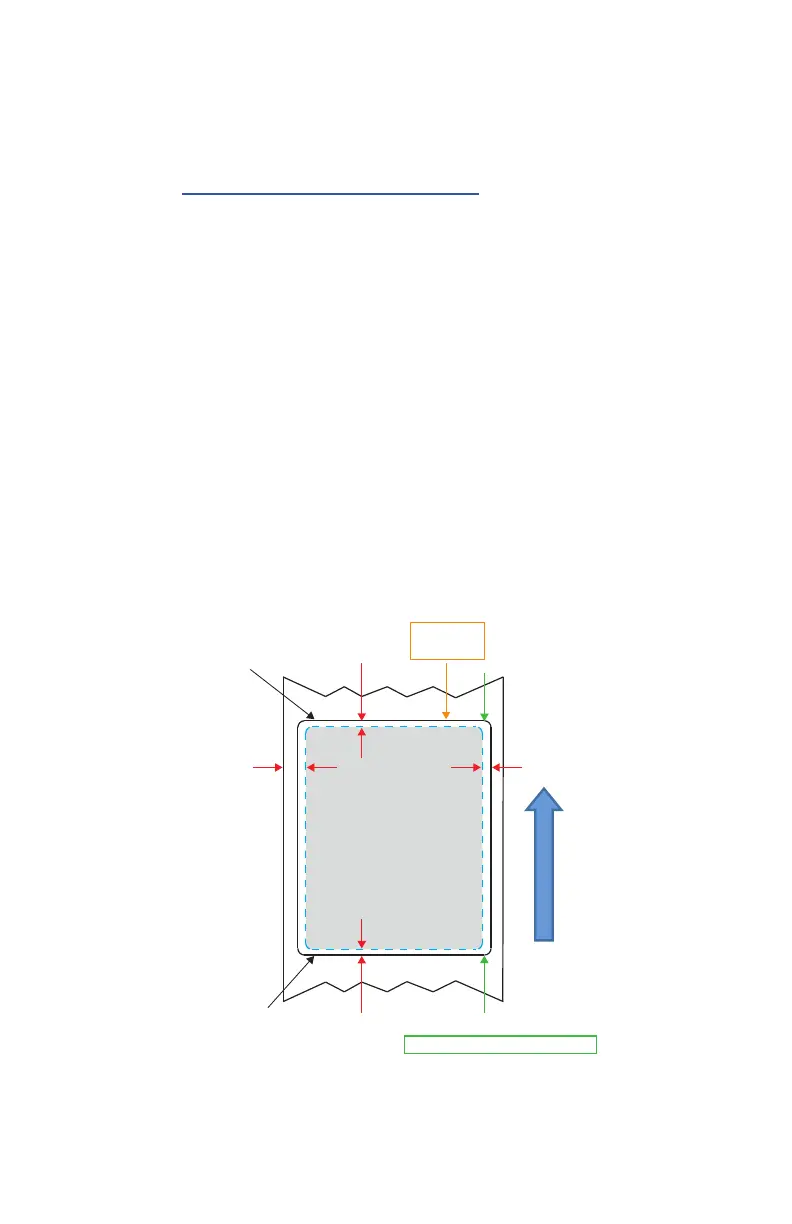

Figure 9 • Gap Media
Safe Printing Zone
1.59 mm
1.59 mm
1.25 mm
1.25 mm
“H”
Max Label Height = “H” = 2.5 mm
Bottom edge of
die-cut label
Top edge of
die-cut label
CPCL Label
Height
Media Feed Direction

Zebra ZQ220 Specifications

General

Color	No
Print technology	Direct thermal
Rotated printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Minimum print length	12.5 mm
Maximum printing width	80 mm
Internal memory	16 MB
Number of fonts	14
Built-in barcodes	2D, Code 39, Code 93, Code-39 Library, EAN128, EAN13, EAN8, UPC-A, UPC-E
Battery type	Built-in battery
Battery voltage	7.26 V
Number of batteries supported	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Core diameter	22.2 mm
Media thickness	0.058 - 0.1575 mm
Maximum label width	72 mm
Maximum roll diameter	50 mm
Bluetooth version	2.1+EDR
Connectivity technology	Wireless
Display	-
Product color	Black
Display diagonal	3 \
Quantity per pack	1 pc(s)
Languages support	ENG, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	58.8 mm
Width	114.5 mm
Height	129.5 mm
Weight	450 g
