ZQ220 User Guide
Adjustable Shoulder Strap
Refer to Figure 17 if your printer is equipped with the shoulder strap
option (p/n SG-MPV-SDSTP1-01).

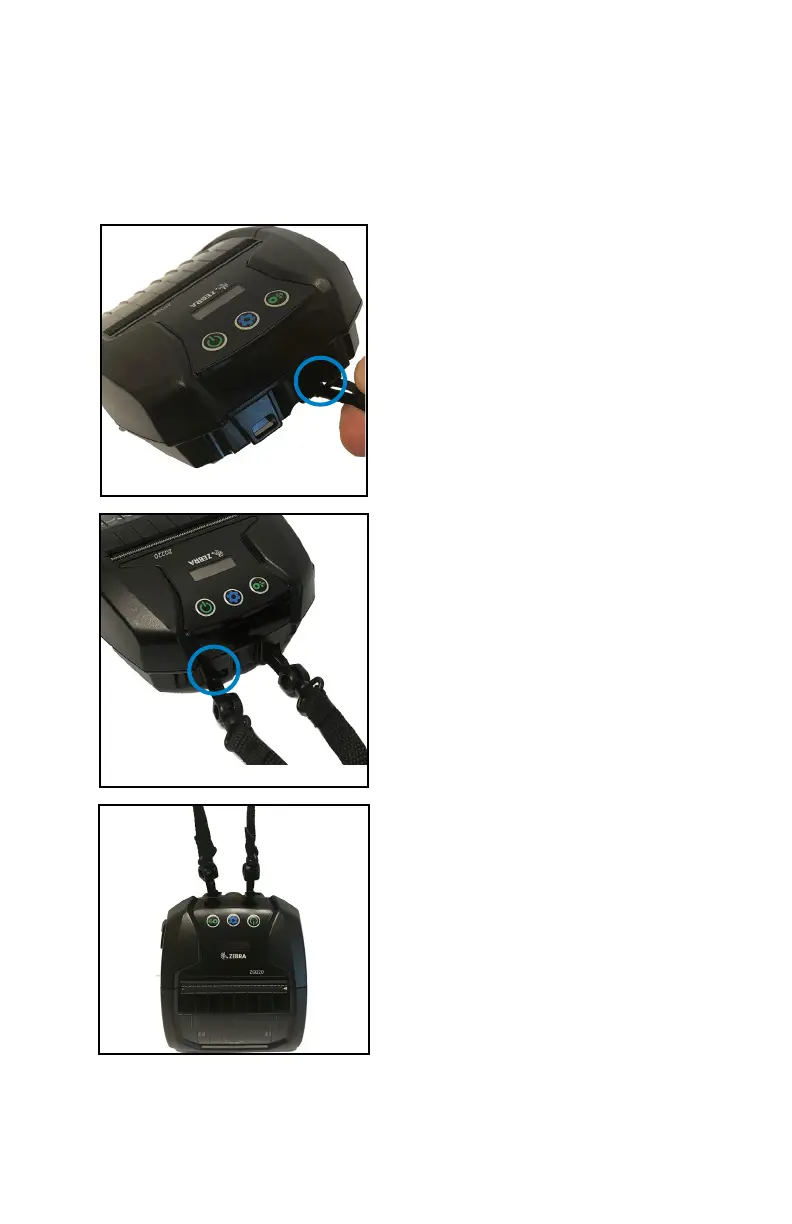

Figure 17 • Using the Optional Shoulder Strap
1. Clip one end of the shoulder strap
to the post (circled) on the front
side of the printer.
2. Clip the opposite end of the strap
to the second post (circled) to
secure.
3. The printer will hang securely from
both clips and the strap can be
adjusted to be longer or shorter in
length.

Zebra ZQ220 Specifications

General

Color	No
Print technology	Direct thermal
Rotated printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Minimum print length	12.5 mm
Maximum printing width	80 mm
Internal memory	16 MB
Number of fonts	14
Built-in barcodes	2D, Code 39, Code 93, Code-39 Library, EAN128, EAN13, EAN8, UPC-A, UPC-E
Battery type	Built-in battery
Battery voltage	7.26 V
Number of batteries supported	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Core diameter	22.2 mm
Media thickness	0.058 - 0.1575 mm
Maximum label width	72 mm
Maximum roll diameter	50 mm
Bluetooth version	2.1+EDR
Connectivity technology	Wireless
Display	-
Product color	Black
Display diagonal	3 \
Quantity per pack	1 pc(s)
Languages support	ENG, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	58.8 mm
Width	114.5 mm
Height	129.5 mm
Weight	450 g
