INSTALLATION
Auto Focus equipment Connecting Auto Focus Carl Zeiss
06/2013 425131-7044-001 19
3 INSTALLATION
The Auto Focus consists of the following main assemblies
• Auto Focus equipment and controller (425131-9000-000) or successor
• Auto Focus installation set (425131-9030-000) or successor
Also required:
• Camera deflection left, manual (425103-0000-000) or successor
or
• Camera deflection left, motorized (425104-0000-000) or successor
An Axio Imager 2 / Axio Imager Vario stand with motorized Z-axis drive /
focusing objective
turret is required in order to operate Auto Focus. Retrofitting to existing older Axio Imager 2 or
Axio Imager Vario stands must be carried out by a Carl Zeiss customer service employee. Axio
Imager 2 stands without motorized Z-
axis drive and all Axio Imager Vario stands without
focusing objective turret cannot be equipped with Auto Focus.
Retrofitting of Axio Imager "1" stands is not possible.
3.1 Connecting Auto Focus

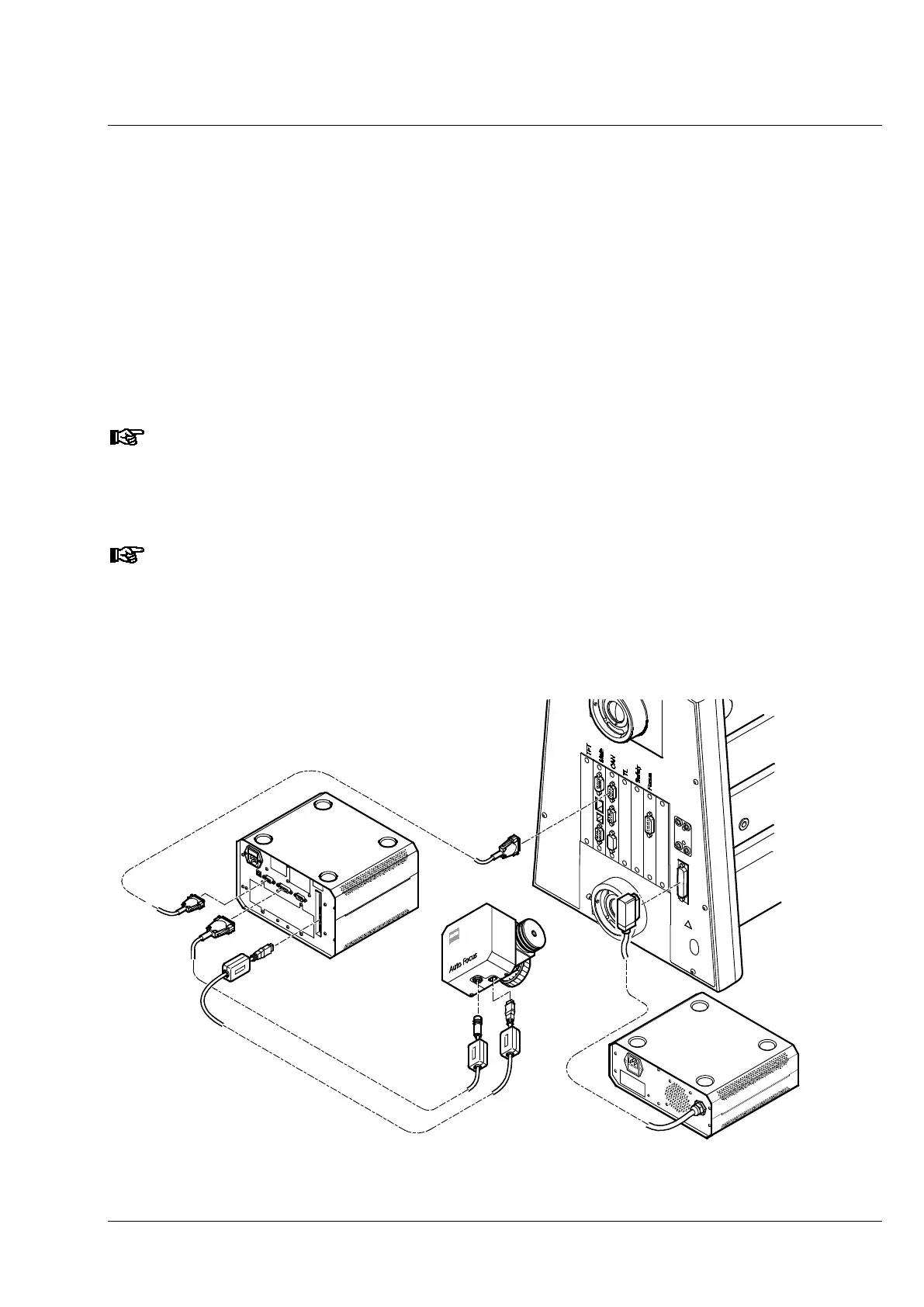

Fig. 5 Connection diagram for Auto Focus and controller to the Axio Imager 2 stand
