3 Product and Functional Description | 3.2 Controls and Functional Elements on Components
9
1
1
0
1
8
1
2
6
7
13

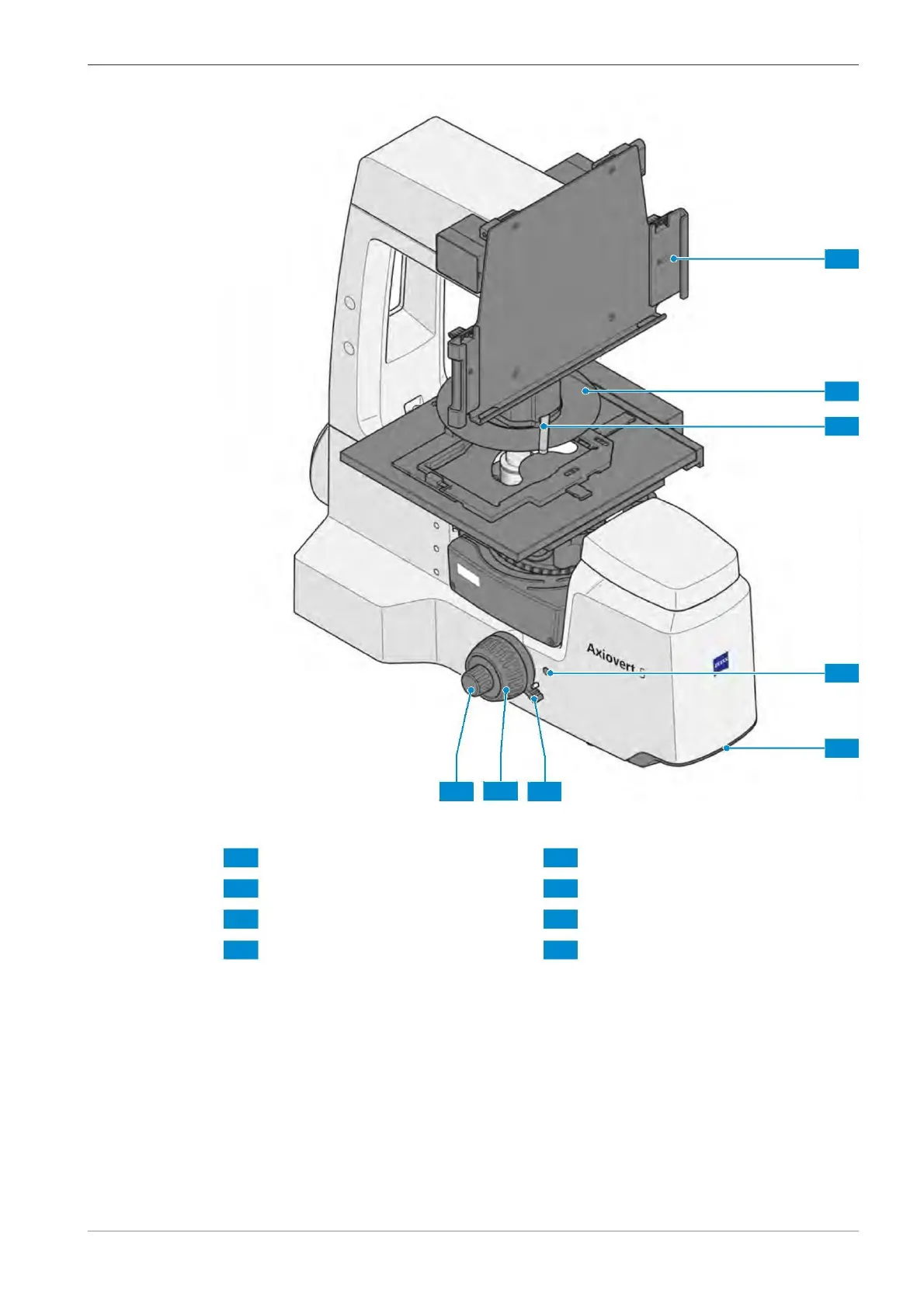

Fig. 3: Controls and functional elements
6
8
Focusing drive – fine adjustment
Snap button (right and left side)
Light shield
7
9
Focusing drive – coarse adjustment
Tablet handles
1
0
2
11 Contrast lever
13 Release lever for adjustable focus stop
1
Carrying handle
Instruction Manual ZEISS Axiovert 5 digital | en-US | Rev. 1 | 431030-7021-101
