3 Product and Functional Description | 3.2 Controls and Functional Elements on Components
1
2
3
4
5
6
7
8

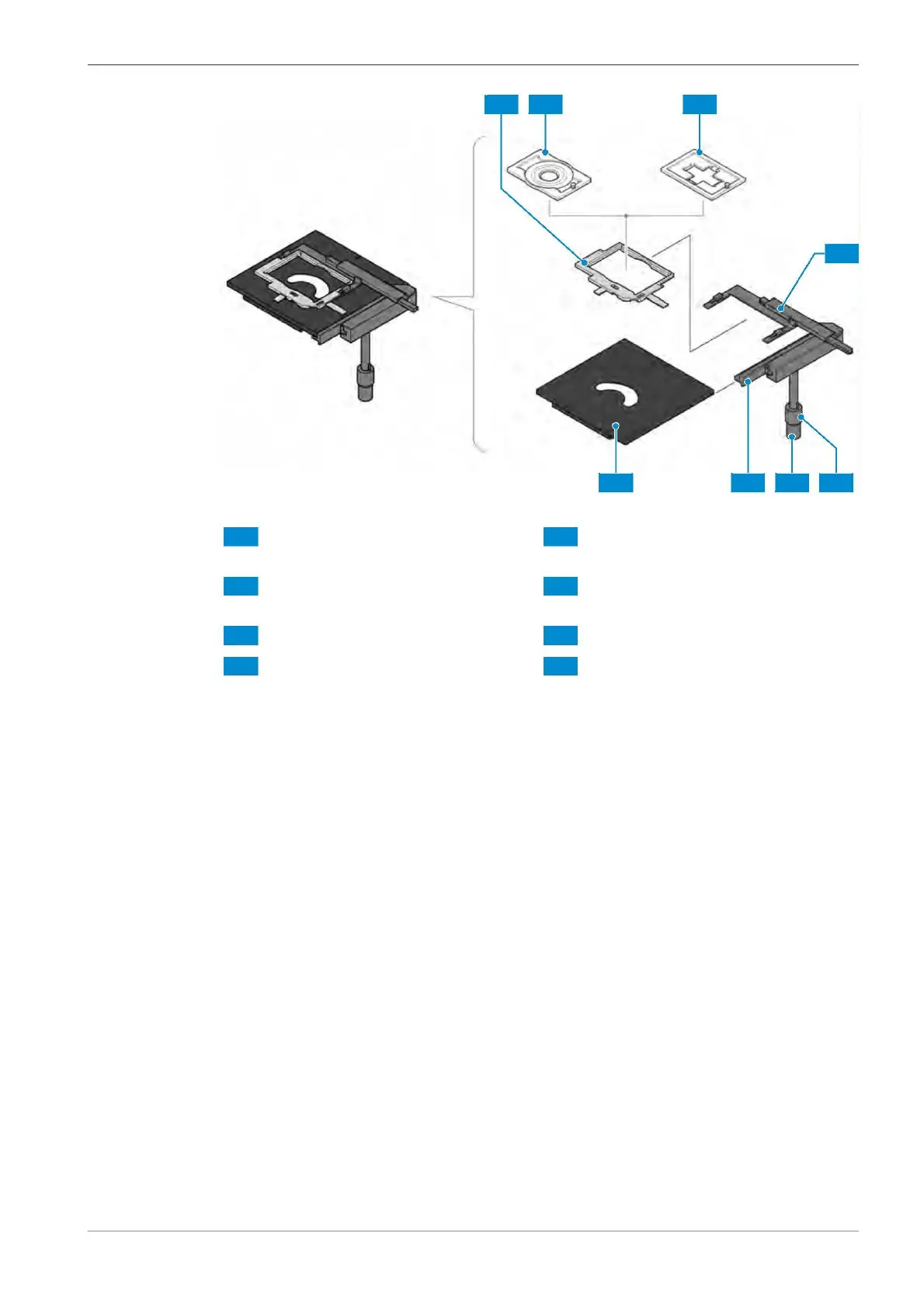

Fig. 7: Specimen stage 232x230 and object guide M 130x85 mm
1
Mounting frame Flex M
2
Mounting frame insert Flex M,
petridishes
3
Mounting frame insert Flex M, slides
and chambers
4
Vernier scales for display of the adjust-
ment range in X and Y
5
7
Specimen stage 232x230
6
8
Object guide M 130x85 mm R/L
Coaxial drive; knurled knob for X adjust-
ment
Coaxial drive; knurled knob for Y adjust-
ment
3
.2.7 6-Position Reflector Turret, Encoded for P&C Modules
Purpose The reflector turret is used to hold the push-and-click (P&C) reflector modules and to swivel the
desired reflector module into the beam path.
Position The reflector turret is fixed to the stand below the nosepiece.
Function Rapid reflector change by rotating the reflector turret wheel. The activated reflector is marked by
a line on the right of the reflector turret cover.
The reflector turret is configured as follows:
§
§
Pos. 1: empty for transmitted light bright field illumination
Pos. 2: Filter Set 90 HE LED with Reflector Module FL EC P&C
For further information, see Accessories and Optional System Expansions [} 48].
