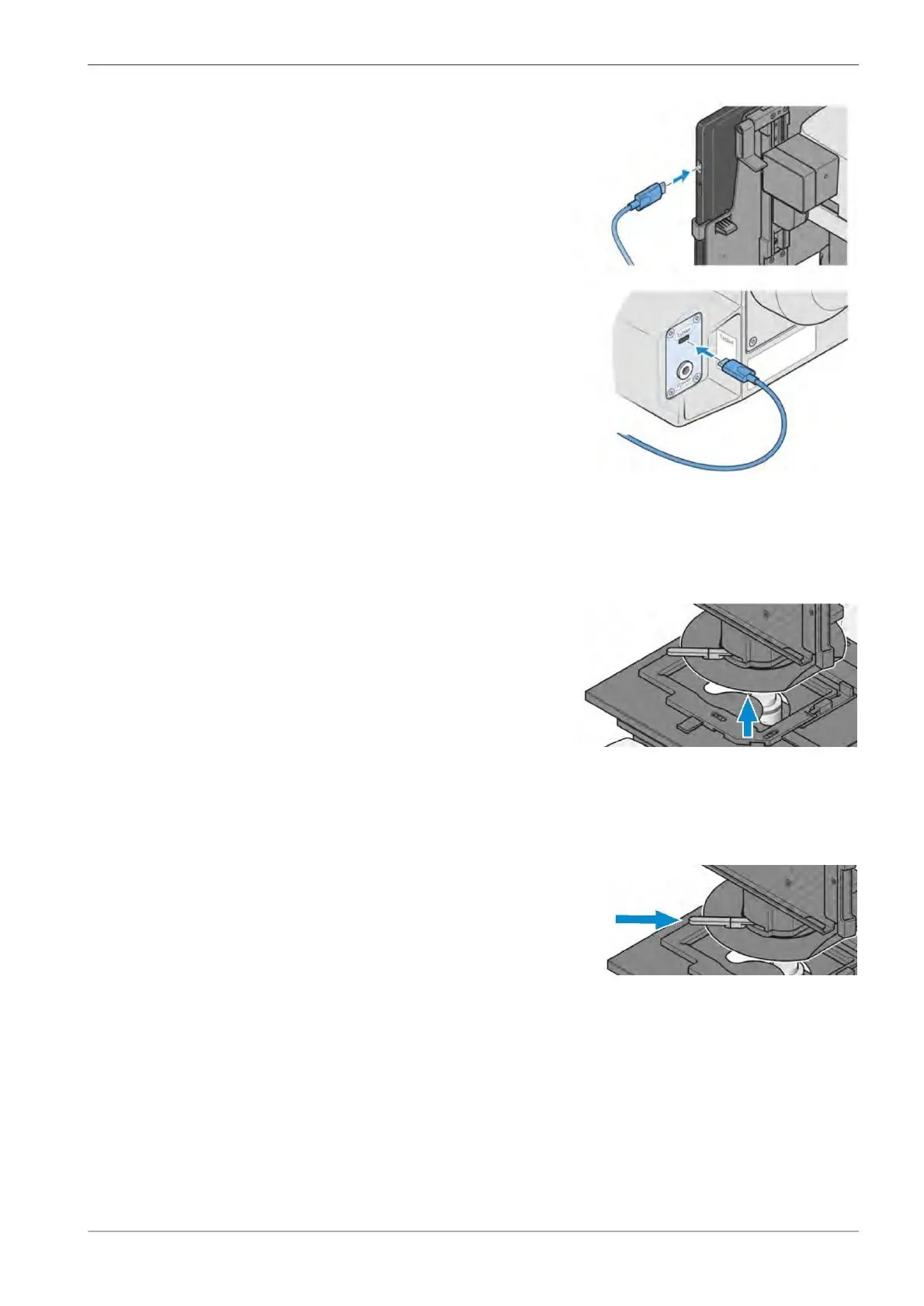

4 Installation | 4.5 Assembling the Light Shield
4
. Connect the USB type C cable to the Microsoft
Surface Pro or the Apple® iPad Pro®.
5
. Connect the USB type C cable to the Tablet
socket (USB 3.0 Type C socket).
4
.5 Assembling the Light Shield
Procedure 1. Hold the light shield with the kinked piece facing upwards.
2
. Attach the light shield to the condenser.
à The light shield is held by magnets.
3
. Adjust the light shield to the indicated position marked on it.
4
.6 Assembling the Contrast Lever
Procedure 1. Hold the contrast lever with the pin facing downwards.
. Attach the contrast lever to the condenser.
2
